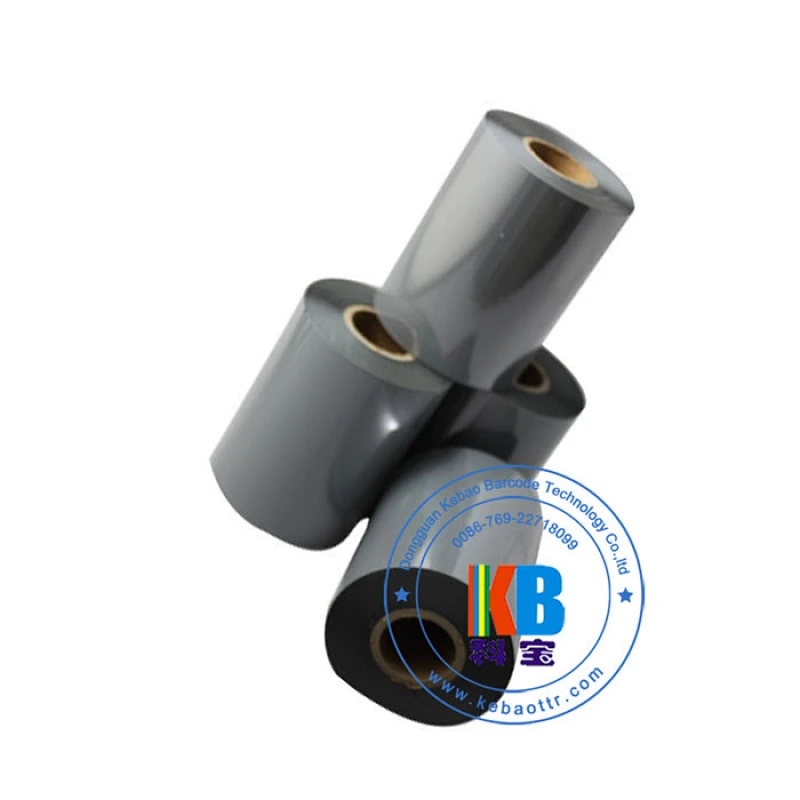

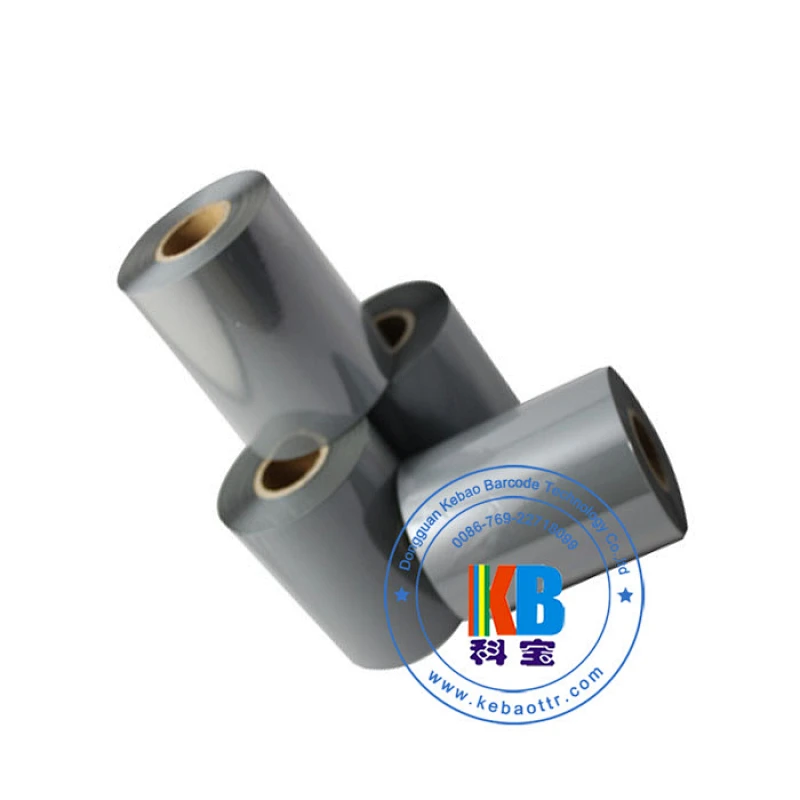

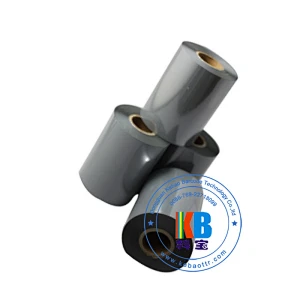

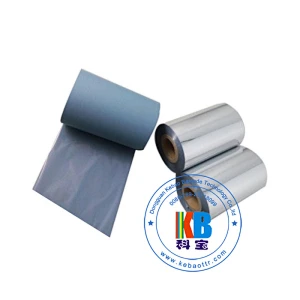

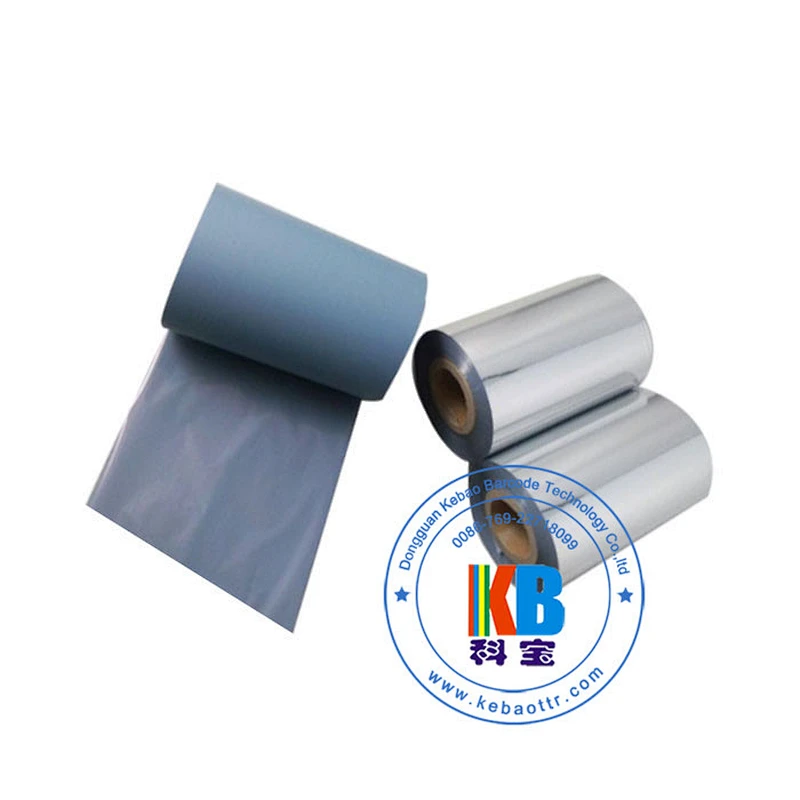

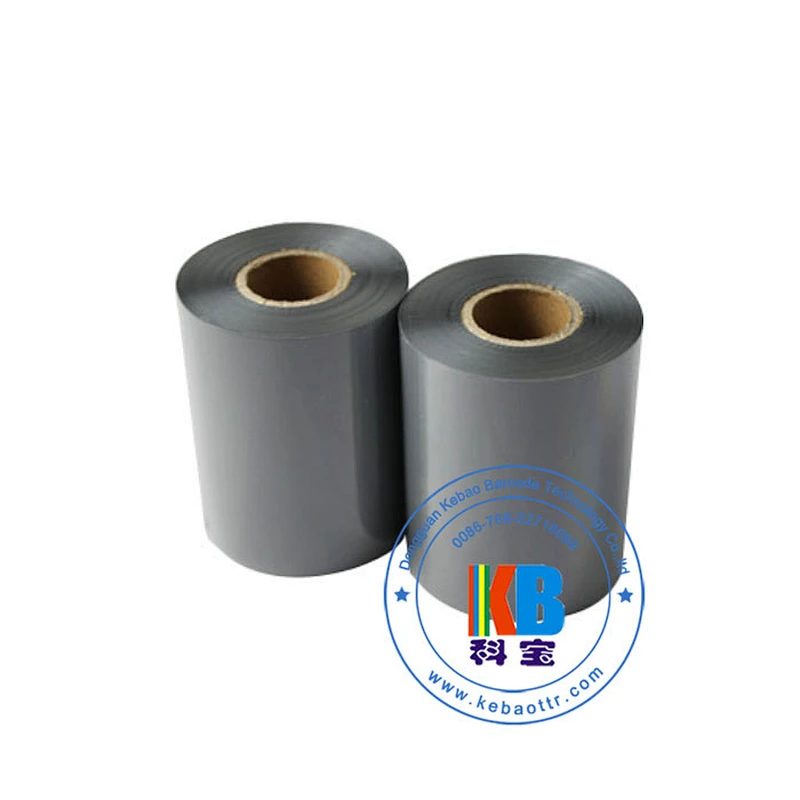

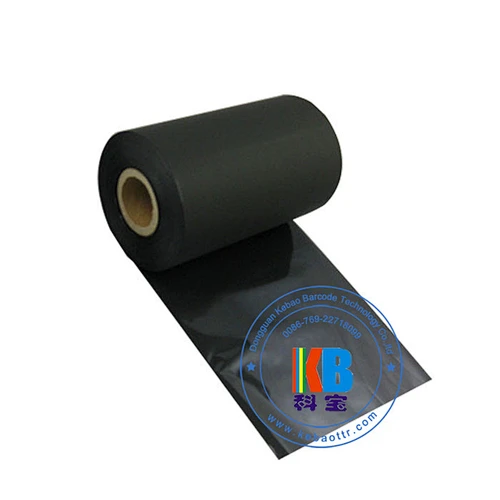

Barcode Printer Use and Thermal Printer Type Zebra wax ribbon diffents color
Resin material ribbon is the most durable and stronger anti-scratch type which design for smooth surface label polyester plastic label substrate at high printing energy, with legible and clear prints, anti-alcohol and gasoline. It has a widely application on
electronic products, machinery and jewelry fields.
* Resin ribbon excellent with anti-friction, corrosion, with a wide range of synthetic material like PET, OPP, PE, PVC application * High resolution suitable for printing standard and rotation barcode. * Satisfy printing demands for different materials. * High sensitivity to ensure the great printing results. *Anti-static back coating technics for print-head protection.
Common ribbon material: wax, wax resin, resin and wash resin Type: flat-edge, near-edge
Color available: black, red, green, blue, yellow, pink, amythest, brown, orange, metallic gold/silver, bright gold/silver, dark grey, light grey, cyan, navy blue, magenta, burgandy etc.
Particular compatible ribbon: ymcko color ribbon suits for id card printer; security UV ribbon which used on paper label sticker or CR80 cr90 cr100 white pvc card.
Material
Merit
Features
Application range
wax
Economic and substantial
Not so good at anti-scratch abrasion
rough surface label sticker, paper adhesive stickers, garments tag, writing paper, coated paper
wax resin
With better ability anti-scratch, smear and abrasion, friction
Little bit higher price, with perfect printing effects on coated paper sticker labels
Coated paper, garments/ commodity hang tags, writing paper mirror coated paper, PVC
resin
Excellent anti-scratch, resistant with alcohol solvent, corrosion, with certain high temperature
High price, suitable for synthetic material , like PVC, PET, BOPP, OPP, PE material
Waterproof, anti alcohol solvent and high-temperature ironing, no duslting, no color easily fade away
Only could be used for special substrates for garment, shoes, bag clothes label
Nylon taffeta, silk, satin ribbon, fabric ribbon, TPU, iron on label , wash care label etc.
Ribbon for option
How to choose the correct ribbon matierial?
1. The label material decides which ribbon material to choose, normally paper label sticker ( except direct thermal sensitive paper ) , wax, wax resin ribbon. 2. If for synthetic material like bopp, PE, pvc, PET, choose RESIN 3. Wash care label choose washable resin ribbon, because it's washable and waterproof.
Choose the right size for the ribbon, different model printer with its limit for that. 1.Standard size for table portable printer, like for tsc 342E pro, T300-E, zebra gt820 printer, 110mm*300m is ok 2. for small printer, TTP2824 110mm*100m, zebra gk420 gk430t , gk888t, 110mm*74m, argox os214 plus printer 110mm*90m, this matters.
How to operate the ribbon on the barcode printer properly?
1. In any case, ribbon should be a little wider than the labels, for the protection of printer head, which decrease the friction between printer head and labels. 2. put the ribbon on convey spindle, barcode labels or stickers on label roll spindle, especially notice that the ribbon or label must be in the middle of the spindle, and aligned. 3. Be sure that the inking side of ribbon will be contact with labels
How to preserve the ribbon:
PRESERVATION ENVIROMENT: Usage: 5℃-35℃,45%-85%relatively humid Shipment: -5℃-45℃,20%-85%under relatively humid, no more than one month Storage: -5℃-40℃,20%-85% ,within one year. To ensure the best printing effects, please according the above request to protect it from outside environment influences.
NOTICE: Please do not explode the ribbon directly into the sunshine and wet environment, in case for damage its printing results.
Our Company
Dongguan Kebao Barcode Technology Co.,ltd
Our company established on 2007, which major in providing the variety of printer consumables, for printer ribbon , id card color ribbon, security uv ribbon, outdoors signs specialized ribbon, postal franking machine, barcode label sticker to all over the world, delicate to meet different requirement from customer, we offer OEM services, which can do research for different materials and colors.
Introducing advanced slitting machine, spreading machine, pouch bag machine, label stripping machine to meet short leading time, with professional team-working, to provide you solution on each issue.
Our services:
Why Choose Us > completely and careful double check before shipment. > Take great pains for every of you with highly patience to solve any questions and issues. > Our products with high quality guranteed the quality for 2 years or above. > Machine installing and worker training service; whole life free tecnical support; regular onsite routine inspection. > We put service premiumly, your satisfaction is our perpetual persuit. > We have proffesional and corporately team.
Contact
FREE SAMPLES is available for evaluation, should attention freight charges would be bear by you.
If any of our products are be of interest to you, please feel free to contact me, we'll be always at you service.
