- Type:Printer Ribbon
- Place of Origin:CN;GUA
- Feature:Compatible
- Brand Name:KB
- Model Number:KB302-B KB702-NBL KB702-PK
- Compatible Brand:zebra, datamax, sato, tsc tec, cab, godex, argox citizen etc
- Characteristic:flat edge, near edge
- Material:resin ( wax resin, wash resin, wax)
- size:Any dimension can customize
- color:black, white , gold, silver, pink, amythest, blue, yellow grey etc
- core:paper or plastic
- certificate:ROHS SGS
- Jumbo roll:680MM*15000m 880MM*18000m 890mm*15000m
- application:PVC PET OPP BOPP synthetic paper
- OEM& ODM:support

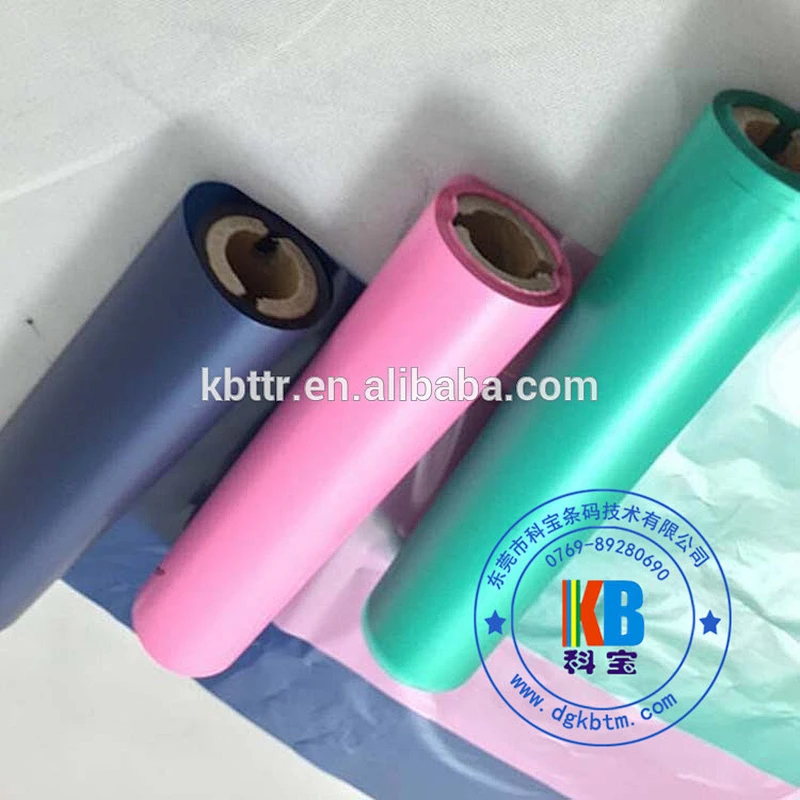

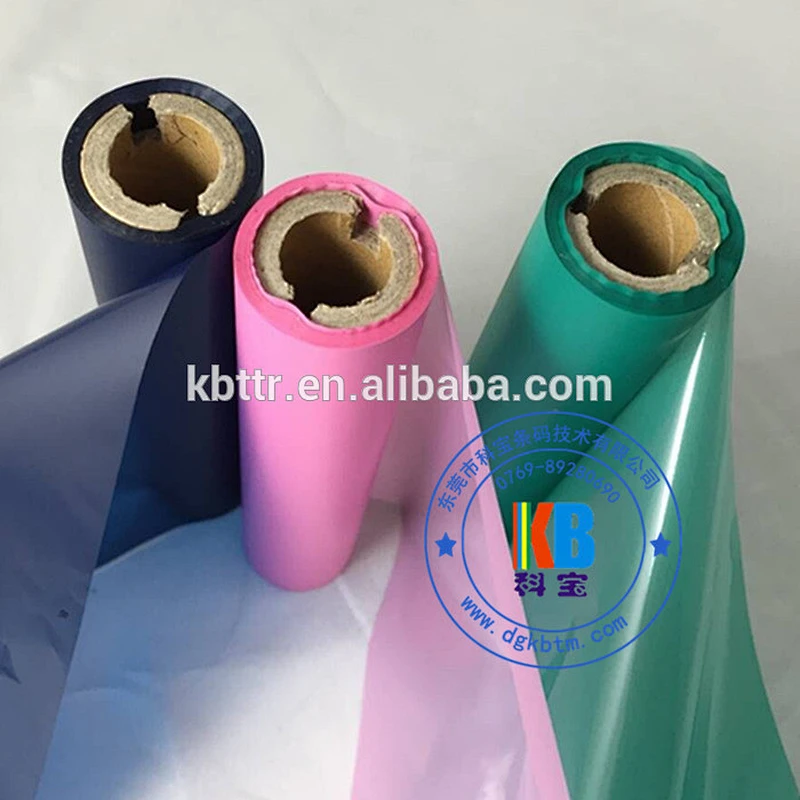

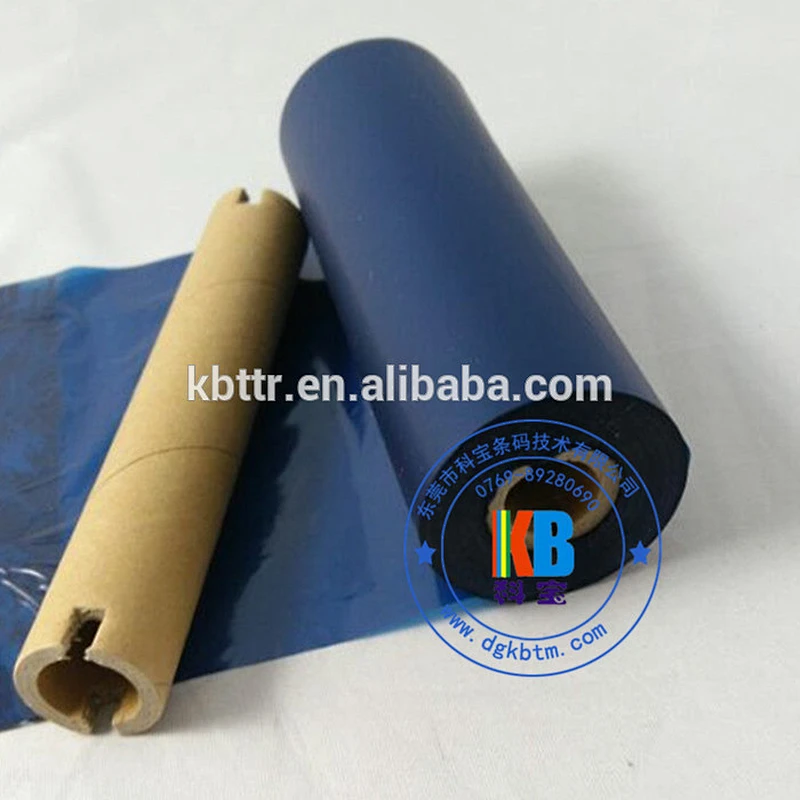

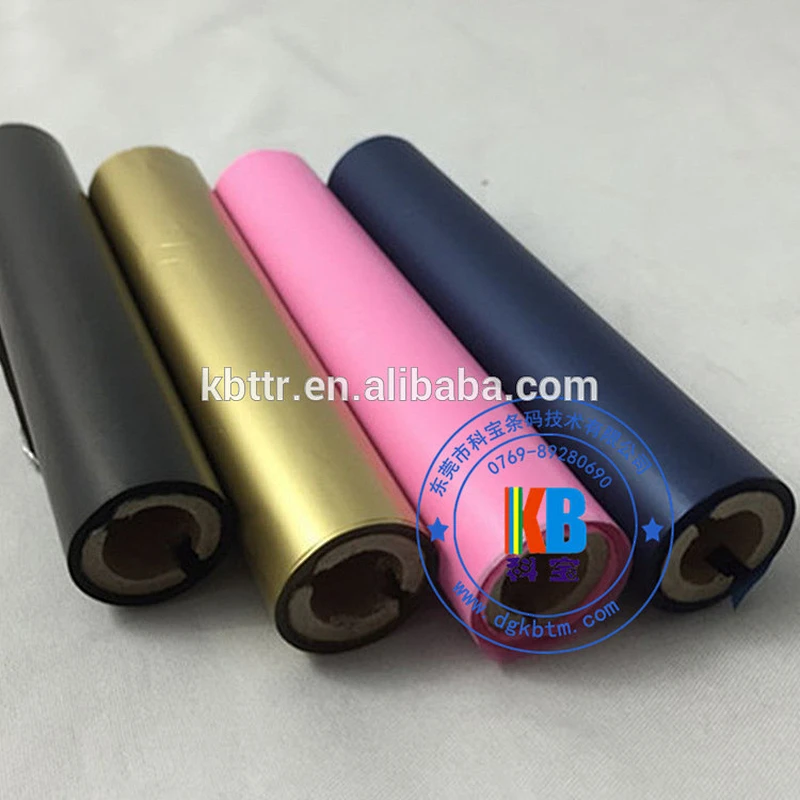

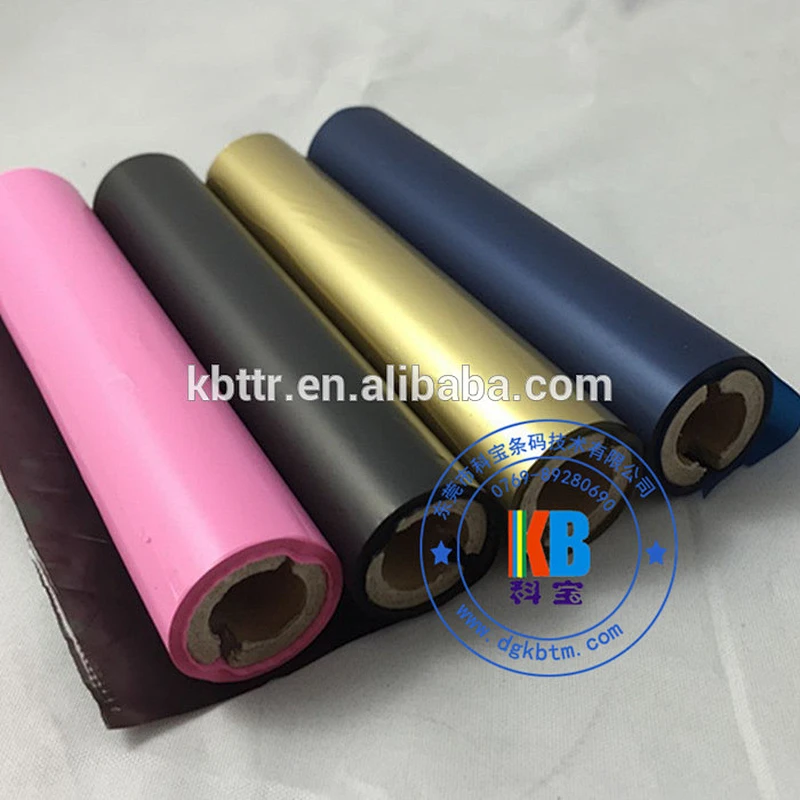

GK888T TTP 244 CE direct thermal printer compatible 110mm*74m color ink ribbon
Resin material ribbon is the most durable and stronger anti-scratch type which design for smooth surface label polyester plastic label substrate at high printing energy, with legible and clear prints, anti-alcohol and gasoline. It has a widely application on
electronic products, machinery and jewelry fields.
Applied in Zebra , datamax, TSC, Toshiba, argox, godex, Postek, citizen, sato, Cab printer
Description:
* Resin ribbon excellent with anti-friction, corrosion, with a wide range of synthetic material like PET, OPP, PE, PVC application
* High resolution suitable for printing standard and rotation barcode.
* Satisfy printing demands for different materials.
* High sensitivity to ensure the great printing results.
*Anti-static back coating technics for print-head protection.
Common ribbon material: wax, wax resin, resin and wash resin
Type: flat-edge, near-edge
Color available: black, red, green, blue, yellow, pink, amythest, brown, orange, metallic gold/silver, bright gold/silver, dark grey, light grey, cyan, navy blue, magenta, burgandy etc.
Particular compatible ribbon: ymcko color ribbon suits for id card printer; security UV ribbon which used on paper label sticker or CR80 cr90 cr100 white pvc card.
Half core ribbon
The ribbon suits for small printer for zebra gk420t, argox os214 plus, gk430t, gk888t etc.
Any other ribbon material is ok.
1 inch core ribbon
Suits for standard printer model Zebra GT820, TSC 247, TSC246M, 346M, T300-E printer etc.
For ordinary purpose.
1 inch core with slit
This kind of ribbon cut to 220mm*76m, 180mm*76m, 256mm*76m 120mm*76m etc.
Mostly used for utility industry for outdoor signs, road signs, state grid use.
How to choose the correct ribbon matierial?
1. The label material decides which ribbon material to choose, normally paper label sticker ( except direct thermal sensitive paper ) , wax, wax resin ribbon.
2. If for synthetic material like bopp, PE, pvc, PET, choose RESIN
3. Wash care label choose washable resin ribbon, because it's washable and waterproof.
Choose the right size for the ribbon, different model printer with its limit for that.
1.Standard size for table portable printer, like for tsc 342E pro, T300-E, zebra gt820 printer, 110mm*300m is ok
2. for small printer, TTP2824 110mm*100m, zebra gk420 gk430t , gk888t, 110mm*74m, argox os214 plus printer 110mm*90m, this matters.
How to operate the ribbon on the barcode printer properly?
1. In any case, ribbon should be a little wider than the labels, for the protection of printer head, which decrease the friction between printer head and labels.
2. put the ribbon on convey spindle, barcode labels or stickers on label roll spindle, especially notice that the ribbon or label must be in the middle of the spindle, and aligned.
3. Be sure that the inking side of ribbon will be contact with labels
How to preserve the ribbon:
PRESERVATION ENVIROMENT:
Usage: 5℃-35℃,45%-85%relatively humid
Shipment: -5℃-45℃,20%-85%under relatively humid, no more than one month
Storage: -5℃-40℃,20%-85% ,within one year.
To ensure the best printing effects, please according the above request to protect it from outside environment influences.
NOTICE: Please do not explode the ribbon directly into the sunshine and wet environment, in case for damage its printing results.
Print on Utility special PVC label sticker.
Wax resin ribbon print on art coated paper.
Wash resin ribbon print on nylon taffeta, others material like satin ribbon, iron on label, tpu etc.
Dongguan Kebao Barcode Technology Co.,ltd
Our company established on 2007, which major in providing the variety of printer consumables, for printer ribbon , id card color ribbon, security uv ribbon, outdoors signs specialized ribbon, postal franking machine, barcode label sticker to all over the world, delicate to meet different requirement from customer, we offer OEM services, which can do research for different materials and colors.
Introducing advanced slitting machine, spreading machine, pouch bag machine, label stripping machine to meet short leading time, with professional team-working, to provide you solution on each issue.
Our services:
Why Choose Us
> completely and careful double check before shipment.
> Take great pains for every of you with highly patience to solve any questions and issues.
> Our products with high quality guranteed the quality for 2 years or above.
> Machine installing and worker training service; whole life free tecnical support; regular onsite routine inspection.
> We put service premiumly, your satisfaction is our perpetual persuit.
> We have proffesional and corporately team.
FREE SAMPLES is available for evaluation, should attention freight charges would be bear by you.
If any of our products are be of interest to you, please feel free to contact me, we'll be always at you service.
