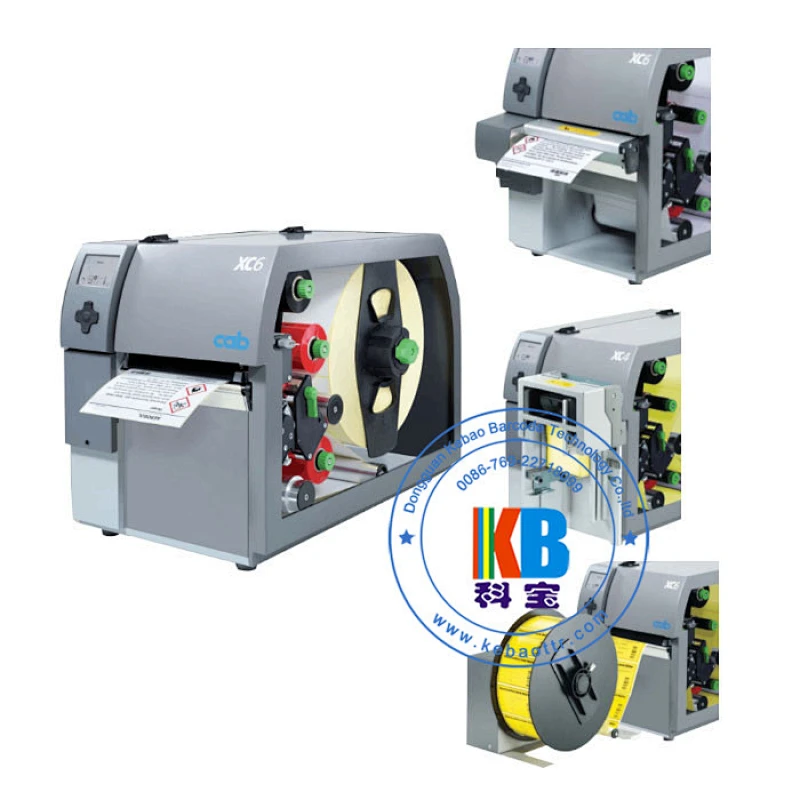

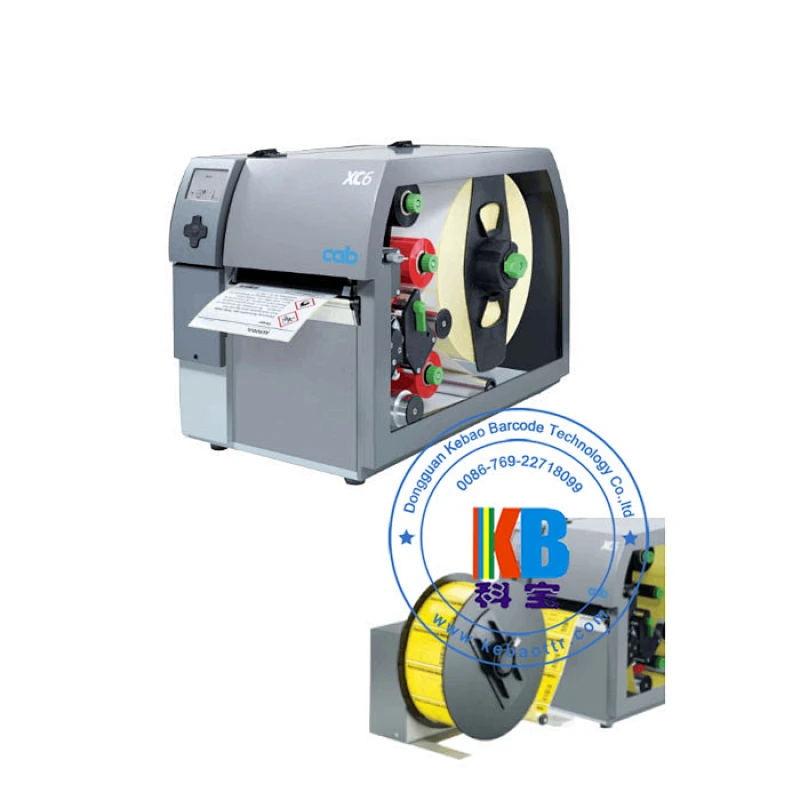

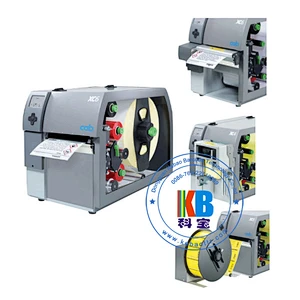

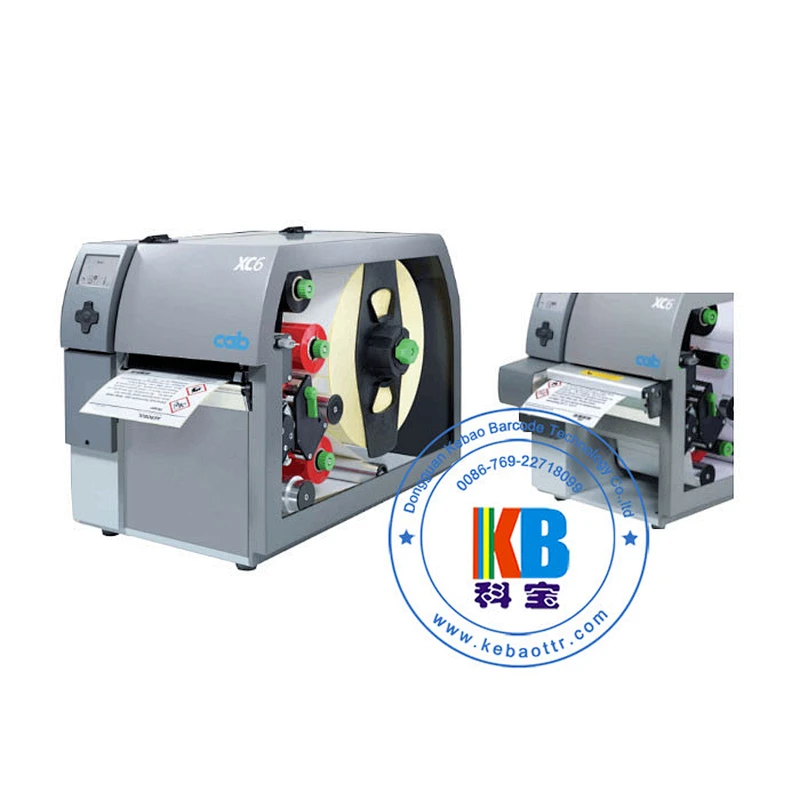

300dpi dual side printing satin care label XD4 XC4 XC6 printer machine for clothing label
1. Equip with two pcs printer head which can ensure two kind ribbon (colors) print on one type label material for single side printing 2. The ribbon device can be decided by the first module printer head 3. Hard aluminum appearance shell 4. suits putting 300m outside inking ribbon 5. Double printer head modules with single operation panel main engine
thermal transfer printing
The most printing speed
30, 40, 50, 70, 100, 125
30, 40, 50, 70, 100, 125
The max printing width
2. Label substrates
suitable label materials ( die-cutting, roll type)
direct thermal paper, coated paper, plastic PET, bopp pe, PP , cardboard hang, clothing wash care labels etc
label thickness / weighs
0.05 -0.8 / 60- 180
20- 116mm if the backing paper is continuous pre-cutting labels , then the size 25-120mm
label height (mm)
the max label diameter (mm) : 300 paper core: (mm) 76mm rewind orientation: inside/ outside
thermal transfer ribbon
Inside/ outside ( support)
The ribbon max diameter
The max paper core
1 inch 25.4mm
The max ribbon length
The max ribbon width
4. Printer dimension
height* depth* width
weight ( KG)
5. label sensor
label forehead , perforated mark or label tail
reflective sensor (up and down)
Distance to leading edge
7. High speed 32 Bit Cold Fire / Taktrate Mhz
Memory IFFS MB Flash
It shows Alarm sounds when error comes
8. Transmission page
Alternative connected device 2* USB master for: external operation screen, keyboard, scanner or service key
9. Operation environment
100-240v - 50/60 Hz, PFC
The max Power consume
Operation temperature/ humidity
operation storage transportation
+5- 40c / 10- 85% not condensed +0 - 60c/ 20-85% not condensed -25 - 60C / 20-85 % not condensed
10. Operation LCD
Multi-function operation button
Pause, paper feeding, cancel, choice, confirmation,
4 lines, 20 bytes
Code 39, Code 93, Code 93 Full ASCII, Code 128 A, B, C Codabar, EAN 8, 13 EAN/ UCC 128, EAN/ UPC Appendix 2 EAN/ UPS Appendix 5, FIM , HIBC
Interleaved 2/ 5, Ident-and leader, code of Deutsche Post AG. JAN 8, 13 , MSI Plessey, Postnet , RSS 14 UPC A, E , EO
Aztec, Codablock F, Data Matrix, PDF 417, Micro PDF 417, UPS Maxicode, QR-cODE, rss 14 Truncated, limited, Stacked and Stacked omnidirectional, EAN-Datamatrix, GS1 Data Bar
All codes variable in height, module width and ratio. Orientation 0, 90, 180, 270. Optional with check digit, printed characters and Start/ Stop code depending on code type.

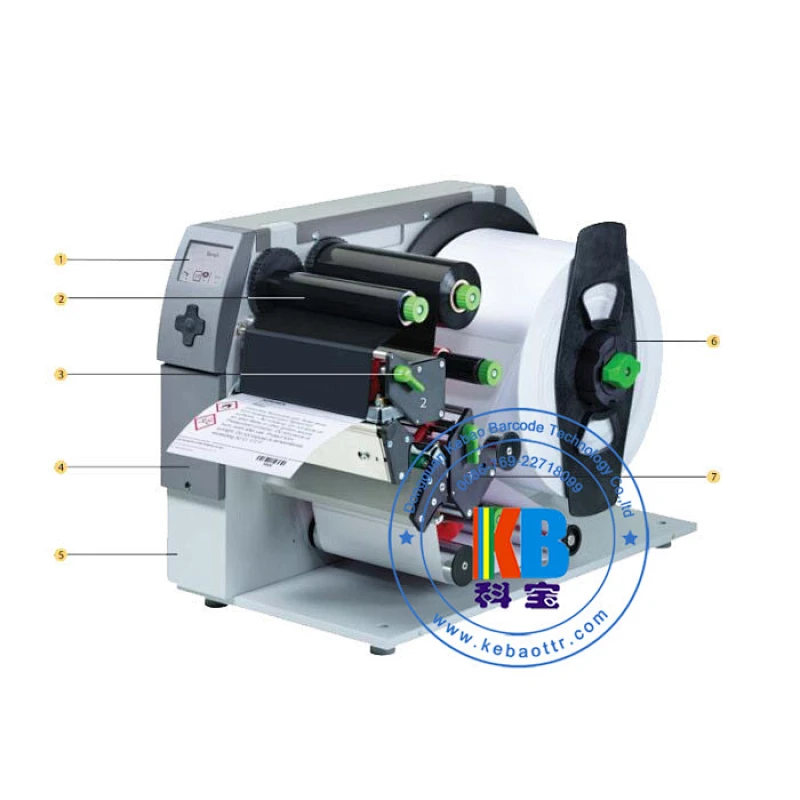

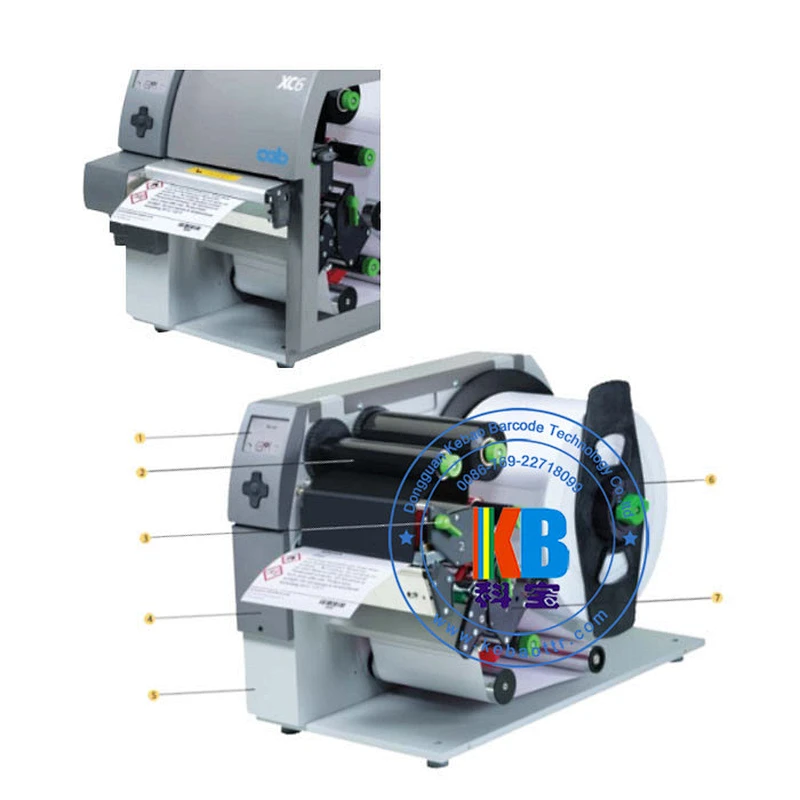

Structure parts of the printer
1. Big LCD display White background lighted panel to clear show its printing status and functions buttons operations
2. Ribbon supply and rewind roller Ribbon core rotary tighten design to ensure easily load and unload the ribbon
3. Easily to adjust different printing width Through increase pressure on the printer head two side to control the printing quality, labels should be one side fixed on the printer left side, and to adjust the right side location suits for different width labels printing.
4. Expand the interface panel Only need a screw fixed the USB panel, then can randomly install module spare parts, like cutter, outer hanging rewinder, labeling sensor or machine.
5. Hard and Solid Foundation structure Unibody cast aluminum produced, all the printer structure firmly installed above the solid foundation holder.
6. label roller Shrapnel control on the rotary label roller makes paper feeding more fluently and stable location.
7. The first module printer head can install extra ribbon-saving module Ribbon-saving module to avoid the friction and dirt after printed the labels should be stretch back and forth, also can save the ribbon when need to print only small area content on the big labels.
