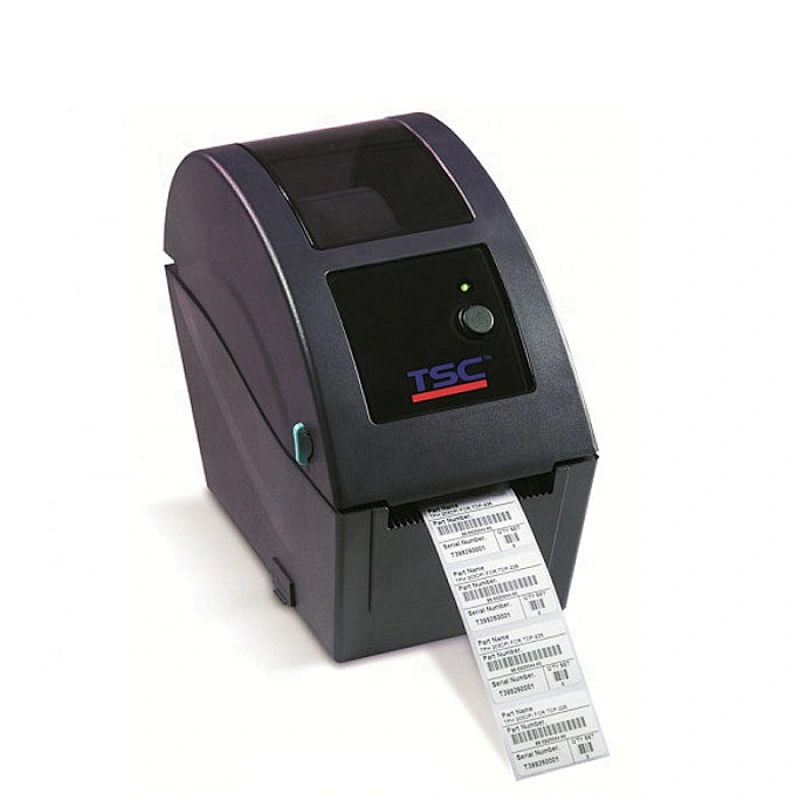

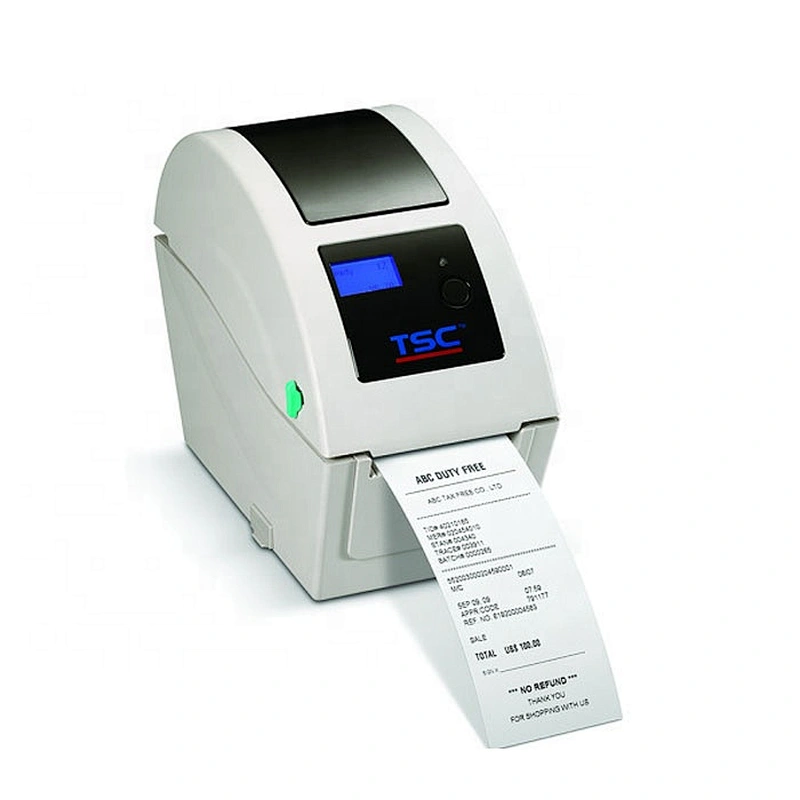

Model: | TDP 225 Series / TTP 255 series |
Printer resolution : | 8 dots/ mm (203dpi) |
Print mode: | Direct thermal |
Max Printing speed: | 127mm ( 5inches) |
Max print width: | 52mm (2.05") |
Shell | 2,286mm (90") |
Dimension | 109 mm(w)* 210mm ( H)* 260mm(L)
4.29"(W) * 8.27"(H) *10.24"(L) |
Weight: | 1.2KG (2.65 pound) |

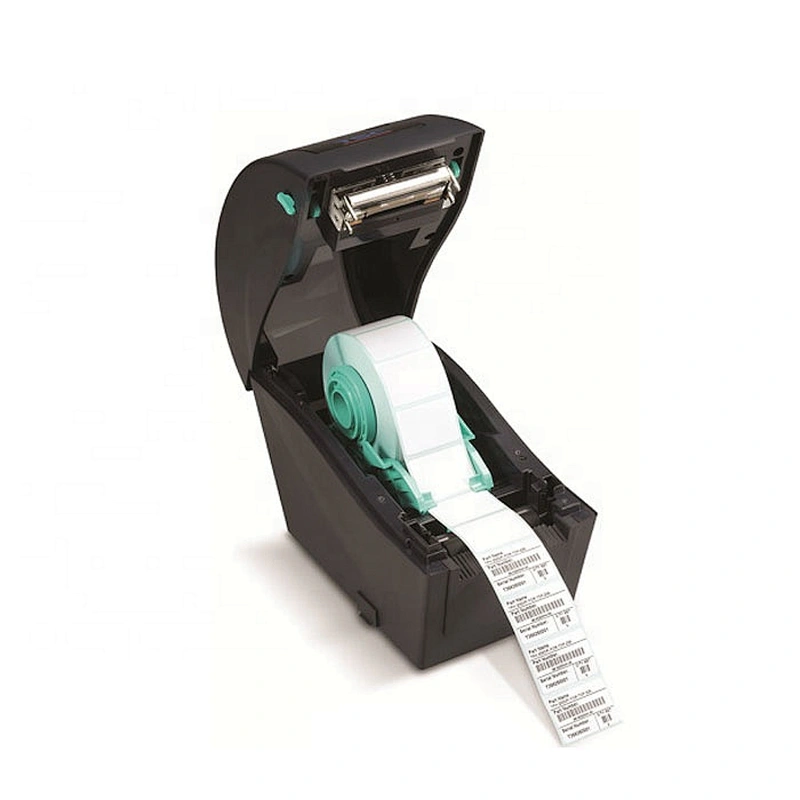

Inside roll max diameter | 165mm (6.5") diameter |
CPU | 32 bits CPU |
Memory: | - 4 MB Flash Memory - 8 MB SD RAM - microSD card memory slot can extend to 4GB |
Communication interface: | - USB 2.0 - Built-in Ethernet network server - USB hast, support stand-alone operation keyboard and barcode scanner ( factory alternative) |
Power supply: | -circumscribe power supply automatic exchange power server -AC imput: AC 100-240V .1 A 47-63Hz -DC output: DC24V, 2.08A, 50W |

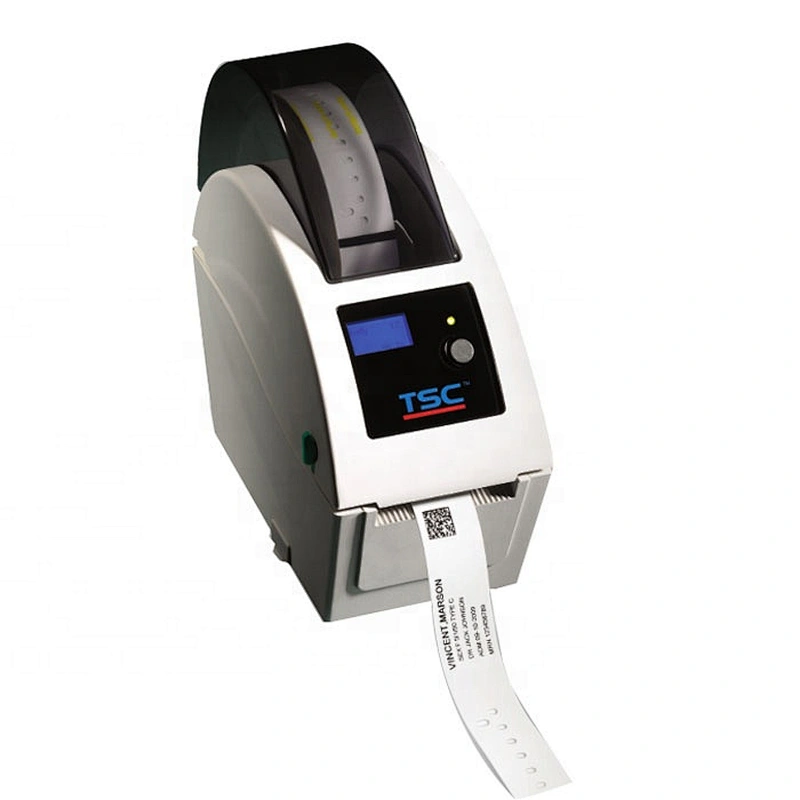

Operation panel : | Display LCD 128*64 pixel back-light demostration |
Operation button, switch , LED | Power supply, feed, LED direction light( green , orange, red) |
Sensor | Paper distance sensor( penetration) black mark sensor (reflection , location adjustable) printer head open sensor |
data/ time generator: | standard |
In-built typeface | - 8 kinds bitmap typface - one set of Monotype CG Triumvirate Bold Condensed vector quantity and True Type Font Typeface - Can download new typeface for usage through software |
barcodes | • One-Dimension code: Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2 (5) digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code 11
• 2-D codes
PDF-417, Maxicode, DataMatrix, QR code, Aztec |
Typeface and barcode rotary | 0°,90°,180°,270° |
Instruction sets | TSPL-EZ TM (Compatible with EPL,ZPL,ZPL II) |

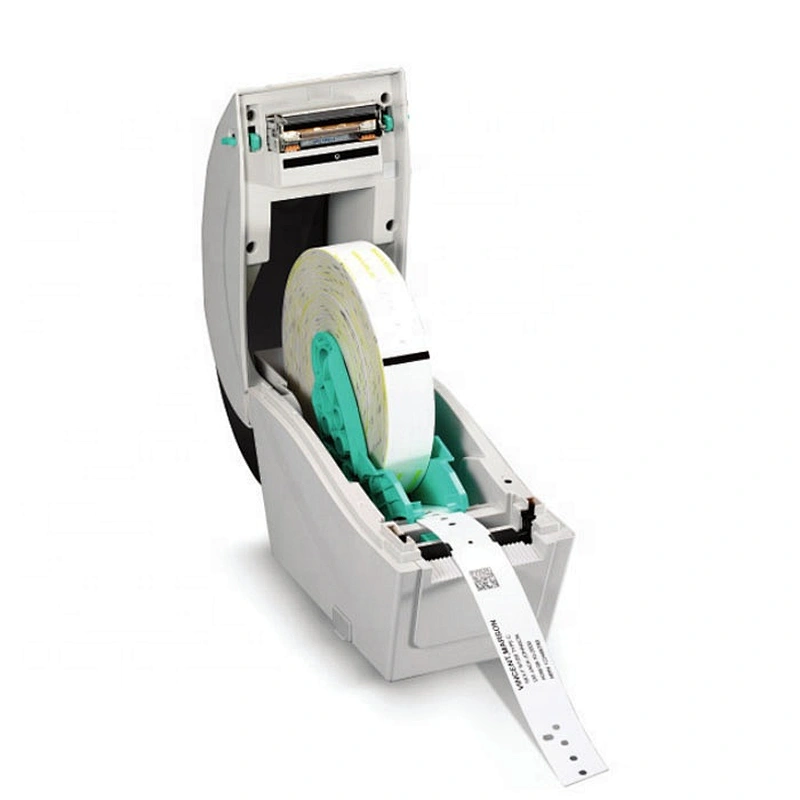

Medium paper typeface | Continous label, label with distance/ gap, cardboard tags, folded tags, wristband etc. (outside) |
Medium label width | 15 ~ 52 mm(0.59"~ 2.05") |
Medium label thickness | 0.06 ~ 0.19 mm(2.36 ~ 7.48 mil) |
Paper core size | 25.4 mm(1") |
Label length | 10 ~ 2,286 mm(0.39"~ 90") |
Environment condition | Operation : 5 ~ 40°C , Humidity(uncondensed)25 ~ 85%
Storage: -40 ~ 60°C , Humidity (uncondensed)10 ~ 90% |
Safety regulation | FCC Class B,CE Class B,C-Tick Class B,UL,CUL,TÜV/Safety,CCC |
Environment regulation | Conform to RoHS,WEEE |
Spare parts | - Windows label sticker editor software , driver program and operation manual CD - quick installation guideline - USB transmission line - Power supply -Circumscribed Voltage exchange power supply |
Factory alternative | - USB Hast communication interface ( support stand-alone operation keyboard and barcode scanner) |
Distributor alternative | - Label peelling off sensor - Knife cutter (full cutting - half cut) |
Custom alternative: | NO |
