Model NO.
110Xie
Price:
USD 2,016.00-2,066.00 / piece
Delivery:
FOB
Minimum order quantity:
1 piece
Supply Ability:
500 piece / Quarterly
Country of Origin:
Shenzhen, guangzhou dongguan
Quantity:
  • Products Status:Stock
  • Type:Dot-matrix
  • Style:Black And White
  • Interface Type:USB
  • Place of Origin:CN;GUA
  • Use:thermal receipt printer, direct paper roll sticker printing
  • Max Paper Size:104mm
  • Black Print Speed:304.8mm/ sec 12 inch/sec
  • Color Print Speed:No
  • Max. Resolution:300dpi
  • Brand Name:no
  • Model Number:110Xie
Product Description

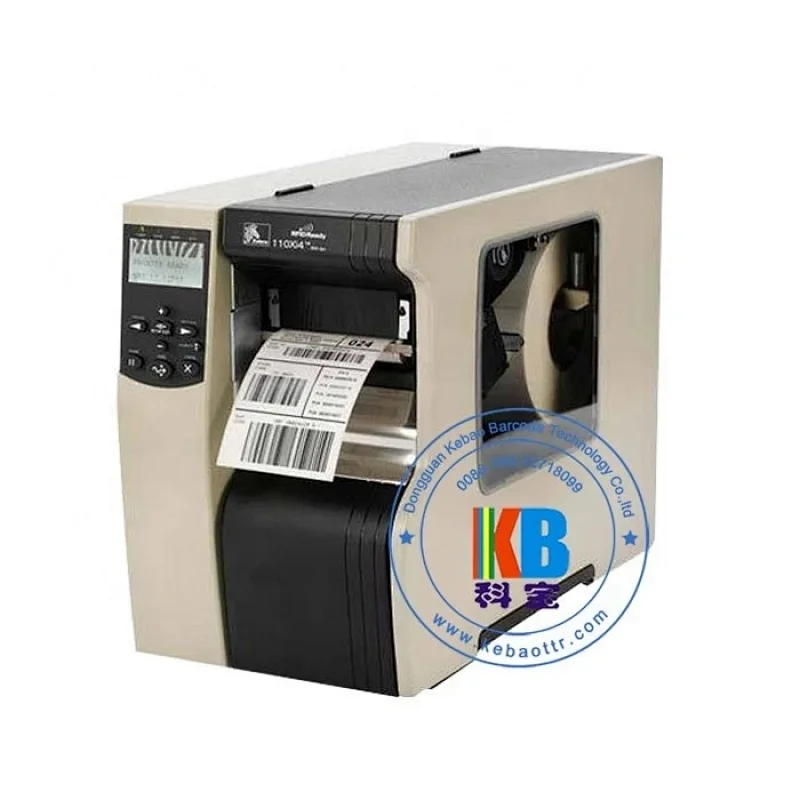

New 110Xi4 Thermal USB industrial label printer

Suits for particular customize labels printing with high flexibilit
To print on such as for small vessel , electric products, jewelry labels, it requires highest clearity, then 600dpi can ensure it print high distinct prints by zebra 110 Xi4 model, with RFID supportive, it can helps to perform your work with more flexibility , high quality and precision.

Print on various label materials always provide consistent printin effects.

UHF RFID code alternative especially use for smallest labels size .

110Xi4 Thermal USB industrial label printer
Standard features
Full function panel with the function programmable password for user , multi-language LCD screen.
Media side window - ot can easily monitor the printing status while no need to open the printer system
32 bit 133 Mhz RISC processor
16MB board linear flash
internal real-time clock
High grade labels/ medium counter
Double medium sensor, transmission and reflective , it can choose by software or upper panel.
automatically calibration it will feed 2 or 3 pcs labels auto calibration when start or close the printer head.
warning system - through the upper panel and zebra Link alarm to show the end of ribbon or labels , or the warn need to clear the printer head.
Adopt Element Energy Equalizer (E3) technology printer head to ensure its excellent printing quality.
In-bulit Zebra Net 10/100 printer server (Ethernet)
Passed by ENERGY STAR certificate ( 140 XI4, 170 Xi4 , 220Xi4)
Printing method
Thermal sensitive / thermal transfer printing
Printing definition
203dpi / 8 dots
300dpi / 12 dots
600 dpi/ 23.5 dot
memory
64 MB FLASH MEMORY, 16 RAM
The max printing width
110 Xi4 : 4 inches/ 102mm
140 Xi4: 5.04 inches/ 128mm
170 Xi4 : 6.6 inches/ 168mm
220 Xi4: 8.5 inches/ 216mm
Printing speed
110 Xi 4:
14 inches / 355.6mm (203 dpi)
12 inches/ 304.8mm (300dpi)
6 inches/ 152.4mm ( 600dpi)
140 Xi4 :
14 inches/ 355.6mm ( 203dpi)
170 Xi4:
12 inches/ 304.8 mm(203dpi)
8 inches/ 203.2mm (300dpi)
220 Xi4:
10 inches/ 254mm (203dpi)
6 inches/ 152.4mm (300dpi)
Media sensor
Transmission line, reflective
Media characteristic:
Media width
110 Xi4: 0.79 inches (20mm) to 4.5 inches (114 MM)
140 Xi4:1.57 inches ( 40mm) to 5.51 inches (140mm)
170Xi4: 2 inches (51mm) to 7.1 inches (180mm)
220 Xi4: 4.25 inches (108mm) to 8.8 inches ( 224 MM)
Label diameter
Outer diameter 8 inches (203dpi): core inner diameter 3 inches/ 76mm
Media thickness
0.003 inch/ 0.076mm to 0.012 inch/ 0.305mm
Media type
continuous label, die-cutting label, black line labels , perforated label sticker
Minimum un-continuous label length
0.25 inches/ 6mm ( rewind)
0.5 inch / 13mm ( stripping)
0.7 inch/ 18mm ( tearable label)
1.5 inch/ 38mm ( diecutting label)
Ribbon
Only support thermal transfer ribbon
diameter 3.2 inches/ 81.3mm
Standard length
1276 feet / 450m
984 feet / 300m
Label width
110 Xi4: 0.79 inch (20mm) to 4.33 inches (110mm)
140 Xi4: 1.57 inch (40mm) to 5.1 inches (130mm)
170Xi4: 2.0 inches ( 51mm) to 6.7 inches ( 170mm)
220 Xi4: 4.25 inches (108mm) to 8.6 inches ( 220mm)
Ribbon rewinding
outside inking
ribbon inside core: 1 inch/ 25.4mm
Environment pharameters
working temperature: 40 F/ 5C to 105 F/ 40C ( thermal transfer)
32 F/ 0 C to 105 F/ 40C ( direct thermal)
storage, transportion environment: -40 F/ -40C to 140F / 60C
working humidity: 20% to 85% ( uncondensed)
storage humidity: 5% to 85% ( uncondensed)
Electric pharameters
90-264 VAC; 48-62 Hz
through ENERGY STAR certificate ( 140 Xi4 , 170 Xi4 , 220 Xi4)
Organization standard
IEC 60950-1, EN 55022 Class B, EN 55024, EN61000 -3-2 , EN61000-3-3
cTUVus, CEMarking, FCC-B, ICES-003 , VCCk C-Tick, NOM, S-Mark, CCC , GOSTR, KCC, STB, UkrSepro
Physic pharameters:
110 Xi4
Height: 15.5 inches / 393.7mm
Width: 10.31 inches/ 261.9mm
Depth: 20.38 inches/ 517.5mm
Weight: 50 pounds/ 22.7 KG
140Xi4
Height: 15.5 inches / 393.7mm
Width: 11.31 inches/ 287.3mm
Depth: 20.38 inches/ 517.5mm
Weight: 55 pounds/ 25.00 KG
170 Xi4
Height: 15.5 inches / 393.7mm
Width: 13.31 inches/ 338.1mm
Depth: 20.38 inches/ 517.5mm
Weight: 67 pounds/30.5 KG
220Xi4
Height: 15.5 inches / 393.7mm
Width: 15.811 inches/ 401.6mm
Depth: 20.38 inches/ 517.5mm
Weight: 72 pounds/32.7 KG
Alternative options
ZebraNel a/b/g/n wireless printer server
zebraNet 10/100 wiresss printer server ( insert or outputting)
Centronics parallel ports ( insert)
Firmware
zpl $ zpl II
ZBI 2.0 ( alternative)
Barcode type
One dimension: Code 11, Code 39, Code 93, with A/B/C subset Code 128 and UCC Case Codes, ISBT -128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2 Bytes or 5 Bytes expand, Plessey Postnet, Standard 2-of-5, Industrial 2-of -5, Interleave 2 of-5, Logmans, MSI, Codabar, Planet Code

Two dimension codes:
Aztec, Codablock, PDF 417, Code 49, DataMatrix, MaxiCode, QR Code, MicroRDF 417, TLC 39, GS1 Databar (RSS)
Font and Graphics
Unicode compatible global printing scheme
Dot-Matrix fonts H and GS symbols , height and width can enlarge for 10 times.
Triumvirate TM bold compressed words ( include Agfa Mototype, Corporation UFST)
IBM CODE PAGE 850 International character sets
Support customize font and graphics , include badges
61MB user Nonvalatile flash use for storage and download
12 MB user availalble SDRAM
Bitmap Font A to H and GS symbols
Include Agfa Monotype Corporation UFST
Printer ribbon

How to choose the correct ribbon matierial?

1. The label material decides which ribbon material to choose, normally paper label sticker ( except direct thermal sensitive paper ) , wax, wax resin ribbon.
2. If for synthetic material like bopp, PE, pvc, PET, choose RESIN
3. Wash care label choose washable resin ribbon, because it's washable and waterproof.

Choose the right size for the ribbon, different model printer with its limit for that.
1. Standard size for table portable printer, like for tsc 342E pro, T300-E, zebra gt820 printer, 110mm*300m is ok
2. for small printer, TTP2824 110mm*100m, zebra gk420 gk430t , gk888t, 110mm*74m, argox os214 plus printer 110mm*90m, this matters.

How to operate the ribbon on the barcode printer properly?
1. In any case, ribbon should be a little wider than the labels, for the protection of printer head, which decrease the friction between printer head and labels.
2. put the ribbon on convey spindle, barcode labels or stickers on label roll spindle, especially notice that the ribbon or label must be in the middle of the spindle, and aligned.
3. Be sure that the inking side of ribbon will be contact with labels

How to preserve the ribbon:
PRESERVATION ENVIROMENT:
Usage: 5℃-35℃,45%-85%relatively humid
Shipment: -5℃-45℃,20%-85%under relatively humid, no more than one month
Storage: -5℃-40℃,20%-85% ,within one year.

To ensure the best printing effects, please according the above request to protect it from outside environment influences.
NOTICE: Please do not explode the ribbon directly into the sunshine and wet environment, in case for damage its printing results.
