Use:thermal receipt printer, direct paper roll sticker printing
Max Paper Size:108 mm (4.25")
Black Print Speed:127mm/ sec 5 inches/ sec
Color Print Speed:NO
Max. Resolution:203dpi
Brand Name:NO
Model Number:DT108B
Product Description
white self adhesive label sticker printing DT108B direct thermal shipping label printer
XP DT108B 108mm direct thermal ( thermal sensitive electric express sheet barcode printer) Courier express shipping label printer
1. Adopt integration design structure, with superior and advanced performance and function 2. smart Volice remind report , more thorough than other same series product
3. mature examination-free and first piece postion technology
4."Error shows up"will print again and with remind smart function
5. 127mm/s print speed, fast and stable
6. Continuous print can adjust the temperature, to ensure its steady operation
7. Personalized"water drop shape"switch off button, certificated and with patent 8. Industrial heat dissipation, it suits for long-time batch work printing without taking a break.

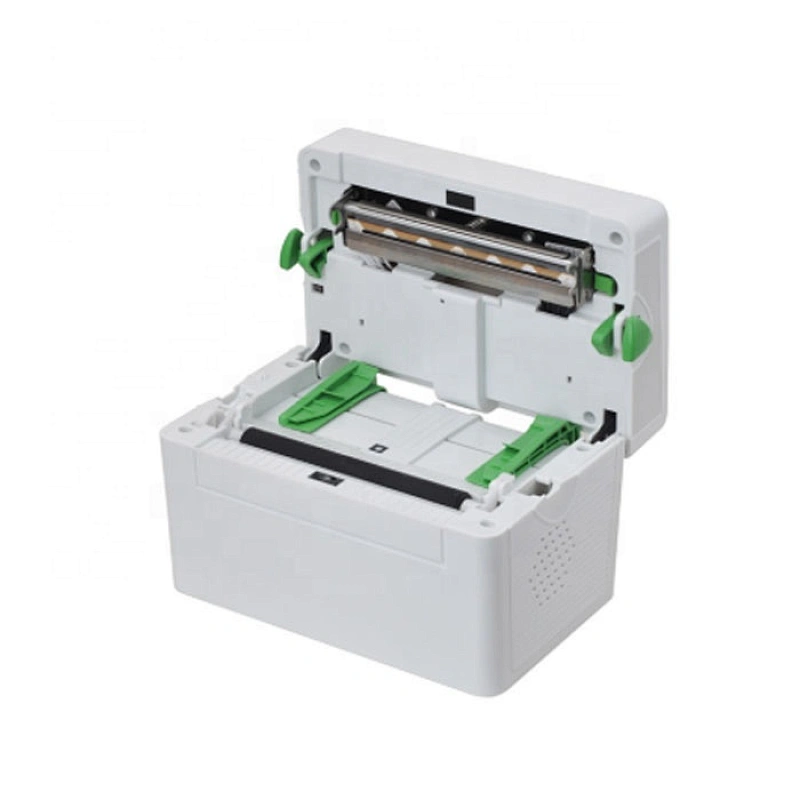

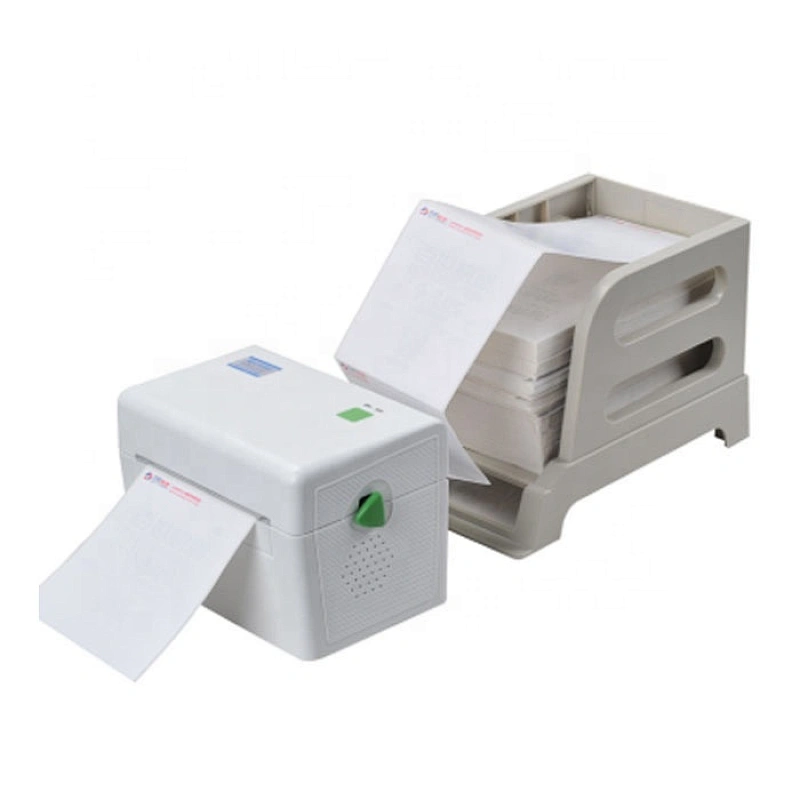

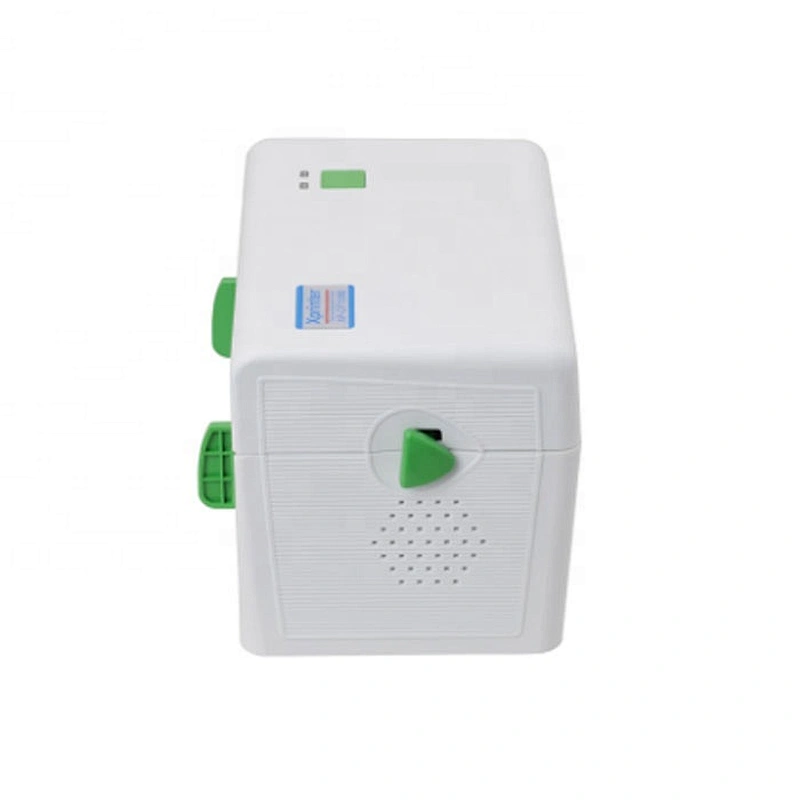

Detailed Images
Printer model
XP DT108B
Printing method:
direct thermal printing/ thermal sensitive
printing resolution:
203dpi
pirnt width:
108 mm (4.25")
print speed:
101.6mm/ sec 4 inches
Print length:
1778 mm (70")
Interface:
USB 2.0 ( standard configuration)/ RS-232 ( factory opional), Ethernet bluetooth, wireless wife ( factory option)
CPU
32 bytes RISC TPU
Memory:
8MB Flash Memory / 8 MB SD RAM/ Micro SD Flash reader can be extended to 4GB
Power supply
External general switch power supply:
Input: AC100-240V, 1A 50-60 Hz
output: DC24 v ,2.5A 60W
Operation switch, button LED
Power supply switch, Feed, LED direction light:
( include 3 colors: red, purple, blue)
Sensor
black mark reflective sensor ( position adjustable)
printer haed open sensor
Structure typeface: ( in-built)
8 kinds bitmap typeface /
download the Windows typeface through software
Barcodes
1-D barcodes: Code 39, Code 93, Code 128 UCC, Code 128 subsets A, B, C Codabar, Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, CHINA POST.
2-D barcodes
2-D barcodes : PDF-417, Maxicode, DataMatrix, QR code
