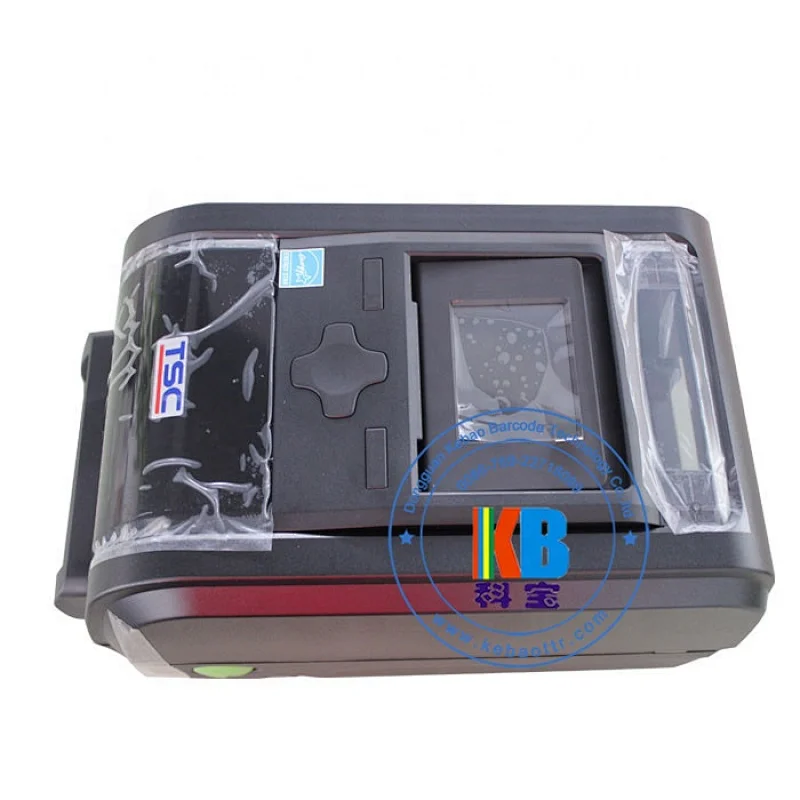

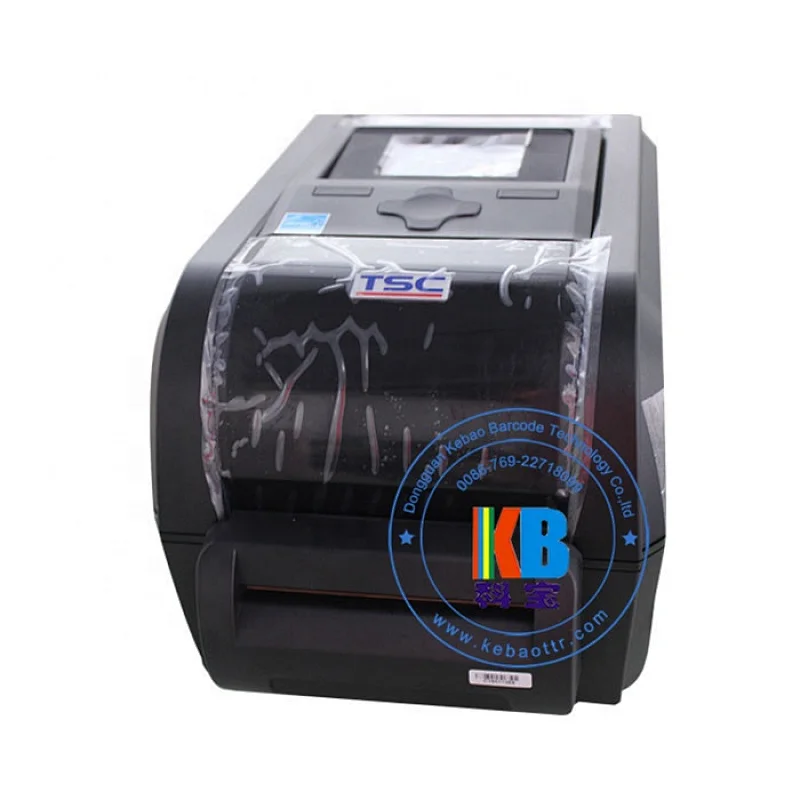

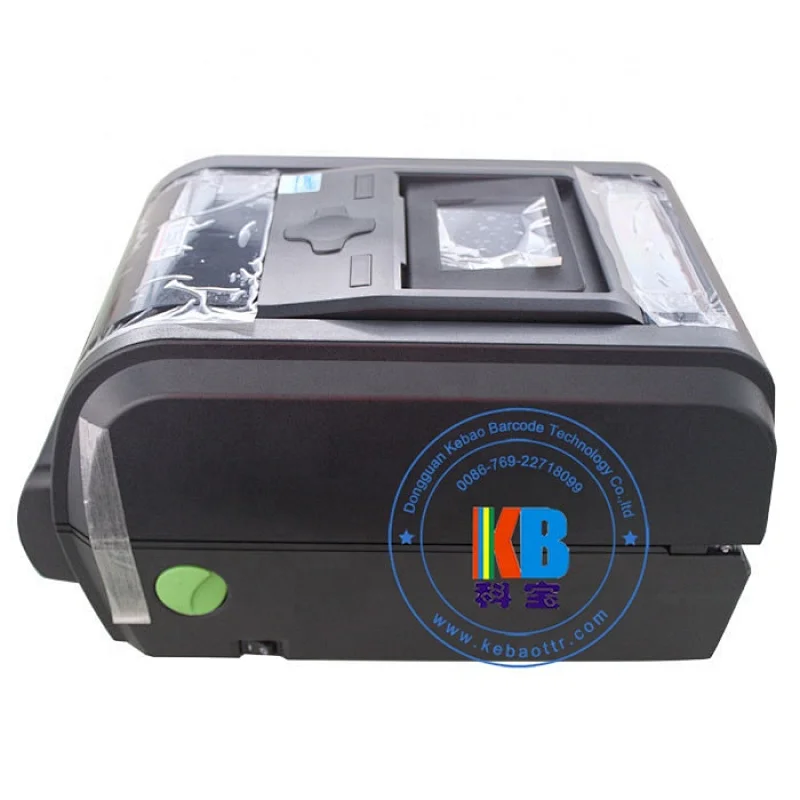

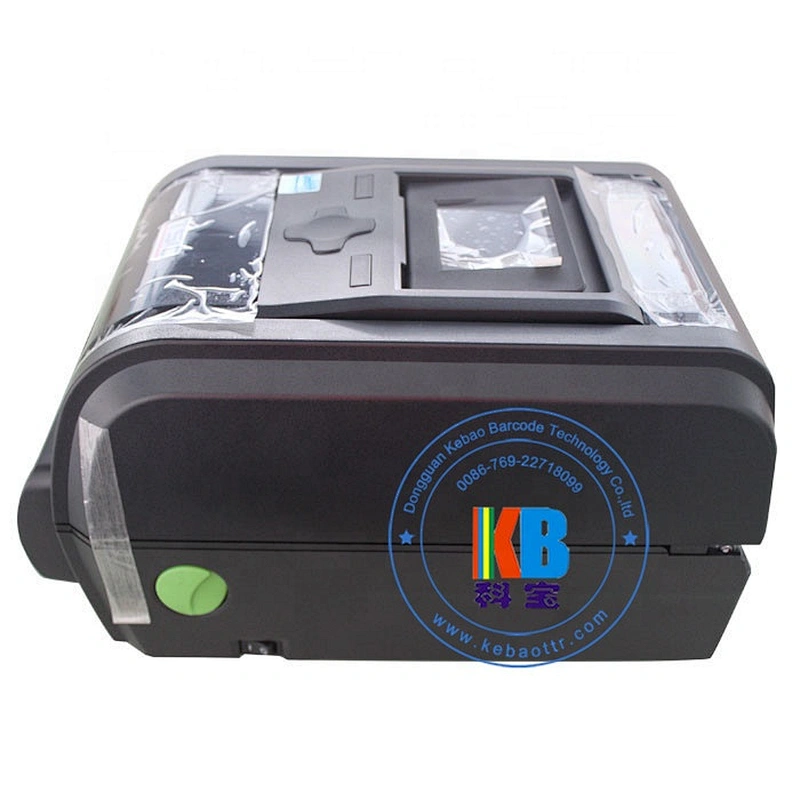

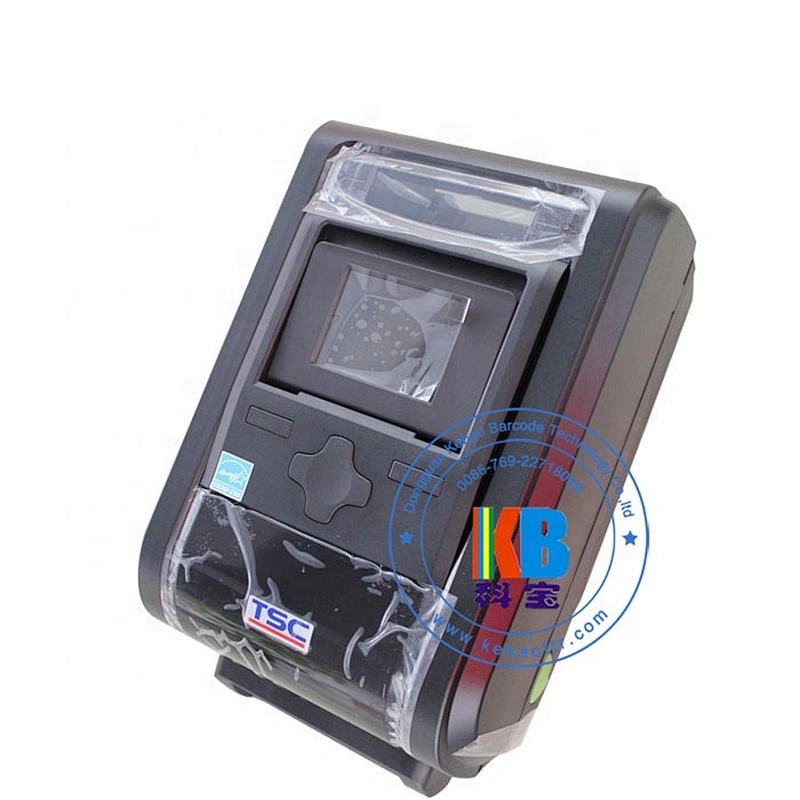

Auto-cutter TX-600 label Printer clothing label print machine

Auto-cutter TX-600 label Printer clothing label print machine

Model NO.: driver HRP80
Price:: USD 1200.00-1238.00
Delivery:: FOB
Minimum order quantity:: 1

Quantity:

Product Description

Method:Heat Transfer Printing
Place of Origin:CN;GUA
Usage:Barcode Printing
Brand Name:KEBAO
Model Number:driver HRP80

Product Description

Title goes here.

1. The model with 600dpi, suits for both thermal transfer printing/ thermal sensitive, with printing speed 4 inches/ sec=102mm/sec, the max printing width is 106mm.

2. High definition use for tiny words, text, icons, logo barcodes printing with clear images, one type high performance application kind of competitive price

3. USB interface only

4. Support for 1-Dimension and 2-Dimension barcodes print.

5. Ribbon width 25.4mm -114mm

TX-600 Series - Desktop thermal transfer printer / barcode printer
Model	TX-200	TX-300	TX-600
Printing resolution	8 dots/mm (203dpi)	12 dots/mm ( 300dpi)	24 dots/ mm ( 600dpi)
Printer mode	Thermal transfer printing/ direct thermal sensitive
The max printing speed	203mm (8 ) / mm 152MM (6 )/MM	152MM (6 )/MM	102MM ( 4)/ MM
The max printing width	108MM (4.25 )	106MM (4.17)	106MM (4.17)
The Max printing length	25.400MM (1,000)	11,430MM (450)	2,540MM (100")
Printer body shell	ABS plastic
Dimension	226 MM (W) x 198 MM(H) x 332 mm (L) 8.90"(W) x 7.80"(H) x 13.07"(L)		226 MM (w) x 200 MM(H) x 332 MM (L) 8.90"(W) x 7.87"(H) x 13.07"(L)
Weight	3.75 kg (8.27 pound)		4.08KG (8.99 pound)
Inside roll diameter	127MM (5") outside diameter
ribbon	300M , the max 67 mm diameter, 1 inch core roller ( outside inking)
Ribbon width	40mm - 110mm ( 1.6"-4.3")
CPU	32 bytes high efficiency CPU
Memory	• 128 MB Flash memory • 128 MB SDRAM • microSD card slot can expand to 32GB
Communications interface	• USB 2.0 • Serial port (RS-232) • Built-in Ethernet server • USB Host • Parallel) (EX-Factory alternative) • Bluetooth (customer options) • 802.11 b/g/n wifi network transmission (customer option)
Power supply	Circumscribed Voltage automatically switch power supply • AC Imput :AC 100-240V, 2.5A, 50-60Hz • DC ouput :DC 24V, 3.75A, 90W		Circumscribed Voltage automatically switch power supply • AC imput :AC 100-240V, 2.5A, 50-60Hz • DC ouput :DC 24V, 5.41A, 130W
Operation switch, button, LED/ LCD	• Power Supply • 6 Operation button (menu, feed/pause, up, down, left, right) • TFT color screen,display 320 x 240 Pixel		• Power Supply • 6 Operation button (menu, feed/pause, up, down, left, right) • TFT color screen,display 320 x 240 Pixel
Sensor	• Paper distance sensor (penetration) • Black mark sensor (reflective , adjustable) • Ribbon rewind speed sensor • Printing head up sensor		• Paper distance sensor (penetration) • Black mark sensor (reflective , adjustable) • Ribbon use-out sensor •Ribbon rewind speed sensor • Printing head up sensor
Date / time generator	EX-FACTORY alternative		standard configuration
In-built typeface	• Eight kind bitmap typeface • One set Monotype® CG Triumvirate Bold Condensed Vector Fonts and True Type Font typeface generator • Can use other different Fonts through downloading from network
Barcode	• 1-Dimension codes Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleaved 2 of 5, EAN 8, EAN 13, EAN 128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China post, ITF14, EAN14, Code 11, TELEPEN, TELEPENN, PLANET, Code 49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS • 2-D codes TLC39, CODABLOCK F mode, PDF-417, Maxicode, DataMatrix, QR code, Aztec, Micro PDF 417, GS1 DataBar (RSS barcode)
Tyepface and codes rotary	0°,90°,180°,270°
Instruction sets	TSPL-EZ TM (compatible with EPL,ZPL,ZPL II)
Label substrates type	Continous label, distance paper, black mark paper, hang tags, fold label etc
Paper width	19 ~ 112 MM(0.75 ~ 4.4)
Paper thickness	0.055 ~ 0.254 MM (2.17 ~ 10 MIL)
Paper core ( size)	25.4 ~ 38.1 MM(1 ~ 1.5)
Label length	3 ~ 25,400 MM (0.1~ 1,000)	3 ~ 11,430 MM (0.1 ~ 450)	3 ~ 2,540 MM (0.1 ~ 100)
Environment condition	Operation:5 ~ 40°C,Humidity(uncondensed) 25 ~ 85% Storage :-40 ~ 60°C,humidity(uncondensed) 10 ~ 90%
Safety regulations	FCC Class B, CE Class B, RCM, UL, cUL, TUV/Safety, CCC
Environment regulations	conform to RoHS,WEEE
Spare parts	• Windows roll label editor software,Dirver programe and opertion manual handbook CD • quick-installation guide • USB trasmission line • Power supply line • Circumscribed Voltage automatically exchange power supply
Factory alternative	• (Parallel) • Date/ Time generator (RTC) • TFT color LCD screen • Ribbon -use out sensor		Parallel
Distributor alternatives	• Label sticker peeling off module • Knife -cutting ( full width cutting)
Customers alternative	• Bluetooth wireless transmission module ( serial port interafce) • 802.11 b/g/n wireless network module ( serial port) • Stand-along keyboard(KP-200 PLUS,KU-007 PLUS)

Packing & Delivery

Busniess term:
EXW WORK, FOB, CFR, FCA, CIF incoterms.

Package:
Carton size: 48mm*33mm*31mm
Net weight: 5.5KG
Gross weight : 6.7kg

Delivery:
By express: FEDEX, DHL, TNT, UPS, EMS We will choose the preferabel, cost-efficient way for you.
By sea: Please provide the specific seaport near your address.
By air: Please offer me the international custom airport for me to confirm.

Lead time:
Generally 3-5 working days, mass production for 7-10 working days, color ribbon needs take longer.
