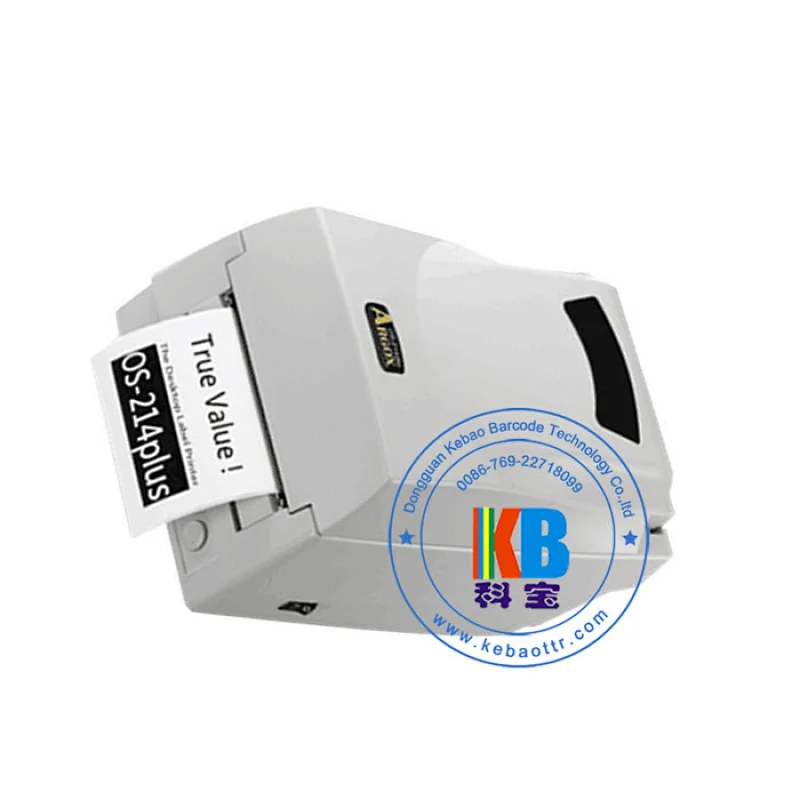

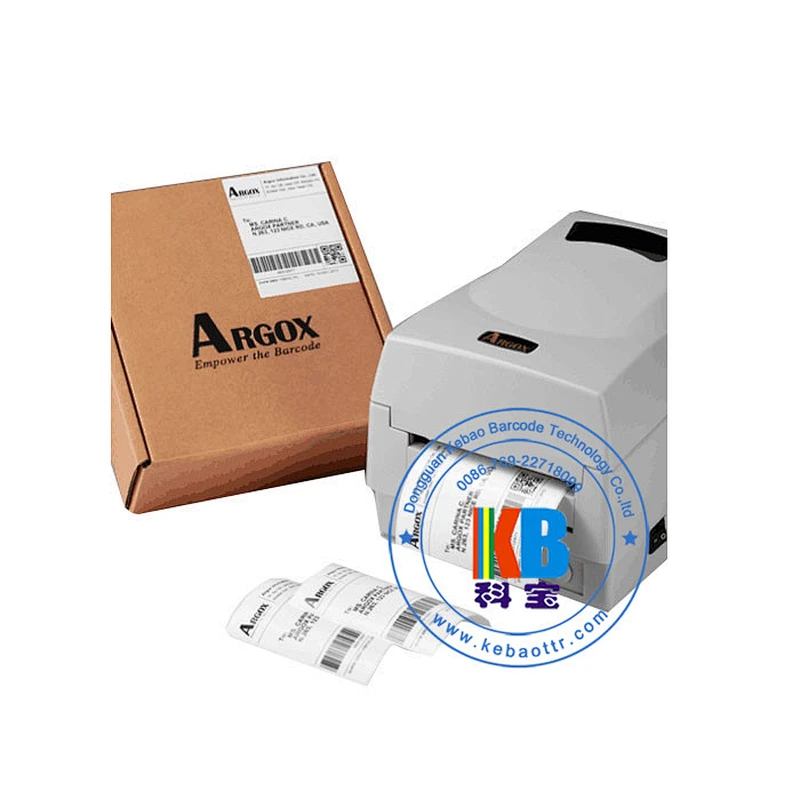

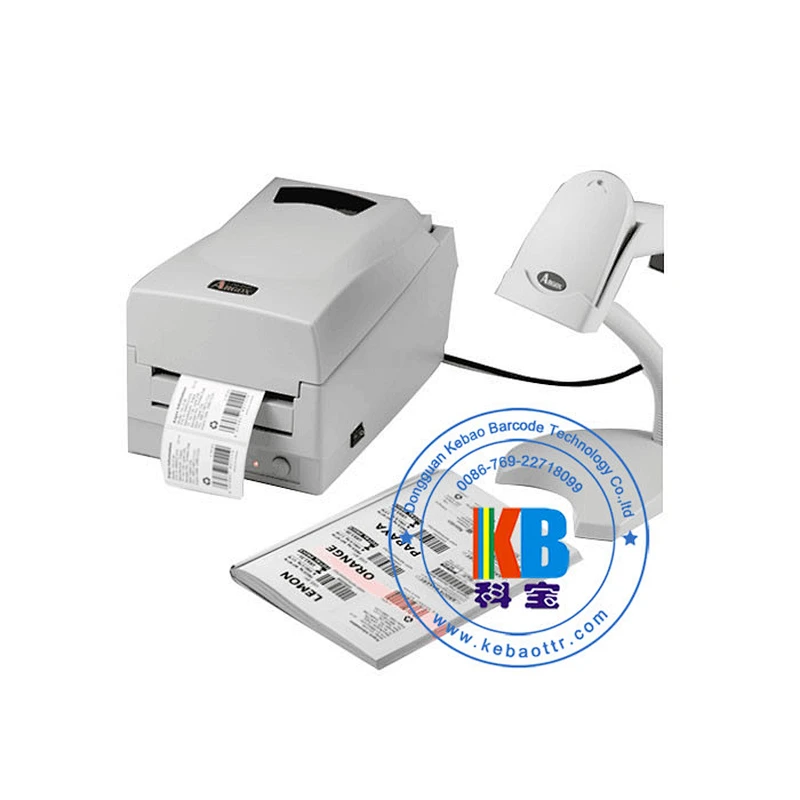

Direct thermal printing USB interface argox os 214 plus color printer
Premier option for portable desktop printer of 200dpi, with printing speed to 3 inches/ sec. White color with elegant design of outer appearance, suits for commodity name labels, post office labels, shipping logistic labels for transportation; inventory storage adhesive label sticker printing, if use to print on very tiny content or the Jewelry tags, we suggest can use high definition of 600dpi.
There's main four types material printer ribbon use on barcode printer, divide into wax, wax resin, resin and wash resin.
Wax mostly suits for rough coated paper label material, wax resin suits for adhesive paper sticker and BOPP, but its anti-scratch is much better than normal wax ribbon; Resin suits for synthetic label material like pp, bopp pvc plastic, Polyester PET, synthetic paper ; another special ribbon type is wash resin suits for many kinds garment/ clothing wash care label with waterproof, washable and durable features after washed or in severe environment.
Wash ribbon is one type of durable material designed for printing on wash care labels that made of polyamide nylon taffeta, polyester fabrics satin ribbon, tyvek, iron on label, tpu and others types. Mainly used for garment, shoes, bag, present fields, with high washability and superior resistance to dry cleaning, sweat, heat and waterproof.
Printer pharameters
Model
Argox os214 plus
Printing method
thermal transfer printing/ direct thermal sensitive
printer definition
203 dpi/ (8 dot/ mm)
The max printing width
105mm
The fastest printing speed
3 ips (76mm/sec)
printing length
1-8 inches ( 25mm- 203mm)
memory
512K
Communication interface
RS-232 connection/ standard parallel
Dimension
L 278 MM* W 186 MM * 153 ( H) mm
Weight
Net weight 2.1KG
Typeface
Standard typeface/ smooth typeface
Graphics
PCX bitmap, GDI graphics
Barcodes printing
Various 1-Dimension and Maxicode, PDF 417 Datamatrix two-dimension codes
label substrates
roll cardboard hang tags, or adhesive label roll
continuous direct thermal paper, adhesive sticker distance barcode label like synthetic paper, matt silver PET , plastic etc
UL labels, transparent sticker, easy tear paper

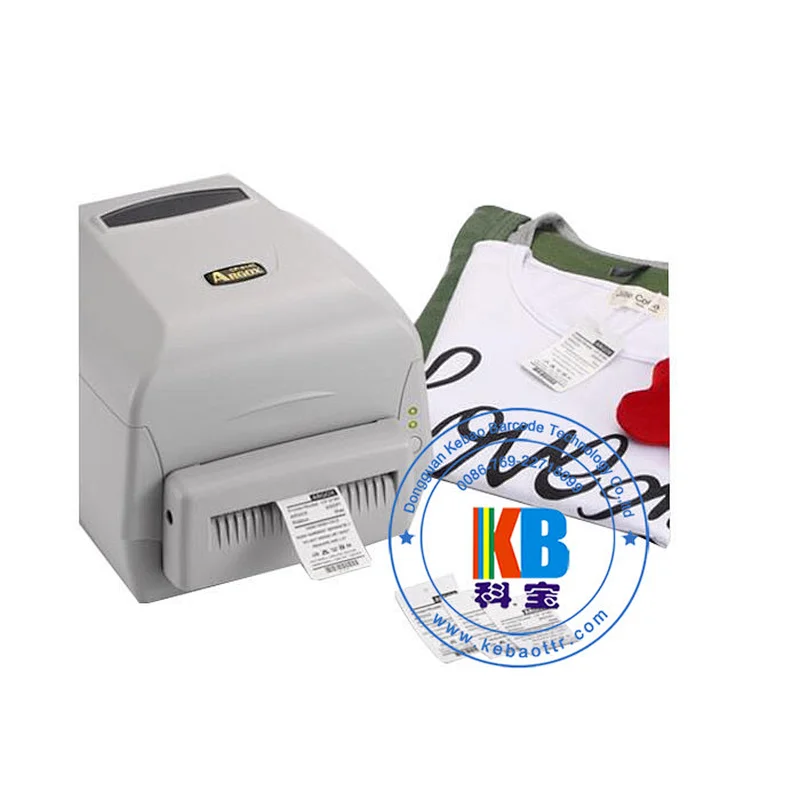

clothing labels like nylon taffeta, satin fabric iron on labels etc
The max label diameters
109mm
label core
25mm
ribbon length
92m
ribbon width
33mm- 109mm
ribbon core
1/2 inch = 12.7mm
Applications
It has wide usage on commodity products name labels, postal office shiping label, transportation logistic shipping labels, garment clothing label, inventory sticker etc.
Adhesive label sticker
common use adhesive coated paper label sticker
or Cardboard swing hang tags.
Package and shipping
For Printer we will packed in solid and firm cartons, with foam structure inside.
Outside packed with protection film to make it stronger undertake the international express shipping ( by FEDEX, DHL, UPS, TNT, EMS )
Ribbon for option
How to choose the correct ribbon matierial? 1. The label material decides which ribbon material to choose, normally paper label sticker ( except direct thermal sensitive paper ) , wax, wax resin ribbon. 2. If for synthetic material like bopp, PE, pvc, PET, choose RESIN 3. Wash care label choose washable resin ribbon, because it's washable and waterproof.
Choose the right size for the ribbon, different model printer with its limit for that. 1. Standard size for table portable printer, like for tsc 342E pro, T300-E, zebra gt820 printer, 110mm*300m is ok 2. for small printer, TTP2824 110mm*100m, zebra gk420 gk430t , gk888t, 110mm*74m, argox os214 plus printer 110mm*90m, this matters.
How to operate the ribbon on the barcode printer properly? 1. In any case, ribbon should be a little wider than the labels, for the protection of printer head, which decrease the friction between printer head and labels. 2. put the ribbon on convey spindle, barcode labels or stickers on label roll spindle, especially notice that the ribbon or label must be in the middle of the spindle, and aligned. 3. Be sure that the inking side of ribbon will be contact with labels
How to preserve the ribbon:
PRESERVATION ENVIROMENT: Usage: 5℃-35℃,45%-85%relatively humid Shipment: -5℃-45℃,20%-85%under relatively humid, no more than one month Storage: -5℃-40℃,20%-85% ,within one year.
To ensure the best printing effects, please according the above request to protect it from outside environment influences. NOTICE: Please do not explode the ribbon directly into the sunshine and wet environment, in case for damage its printing results.
