Model NO.
xc4 xc6
Price:
USD 9,830.00-9,850.00 / piece
Delivery:
FOB
Minimum order quantity:
1 piece
Supply Ability:
70 piece / Quarterly
Country of Origin:
Shenzhen , guangzhou
Stock Time:
3- 5 days Days
Quantity:
  • Place of Origin:CN;GUA
  • Black Print Speed:30-125mm/ sec
  • Color Print Speed:30-125mm/ sec
  • Use:Barcode Printer
  • Products Status:Stock
  • Model Number:xc4 xc6
  • Brand Name:Cab
  • Max Paper Size:105.6mm
  • Interface Type:USB
  • Max. Resolution:300dpi
  • Style:Color
  • Type:thermal transfer printer, label printer
Product name

Barcode printer type two tone color thermal transfer printer

Two tone color print

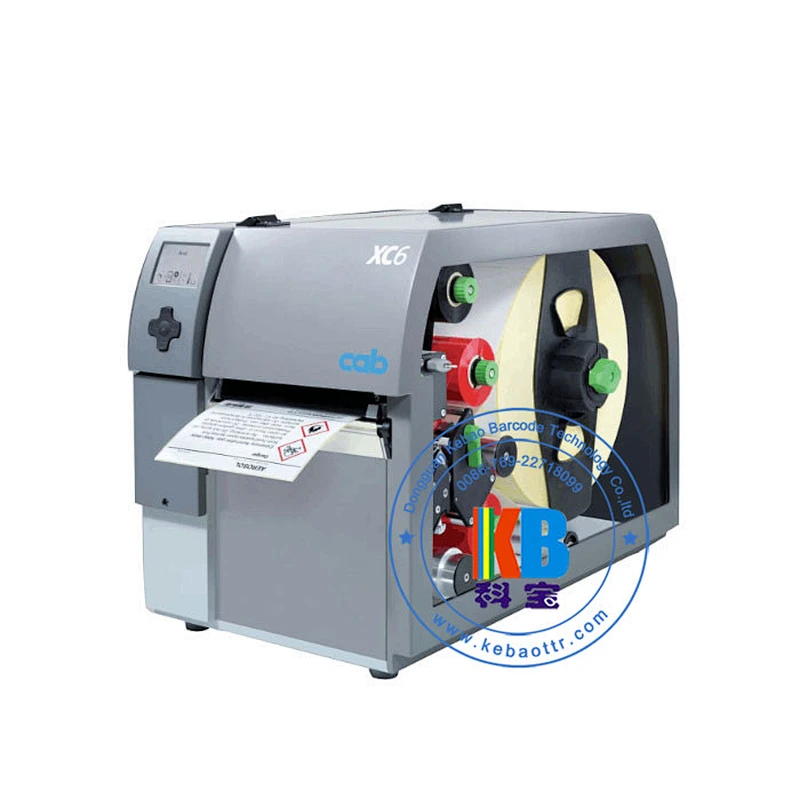

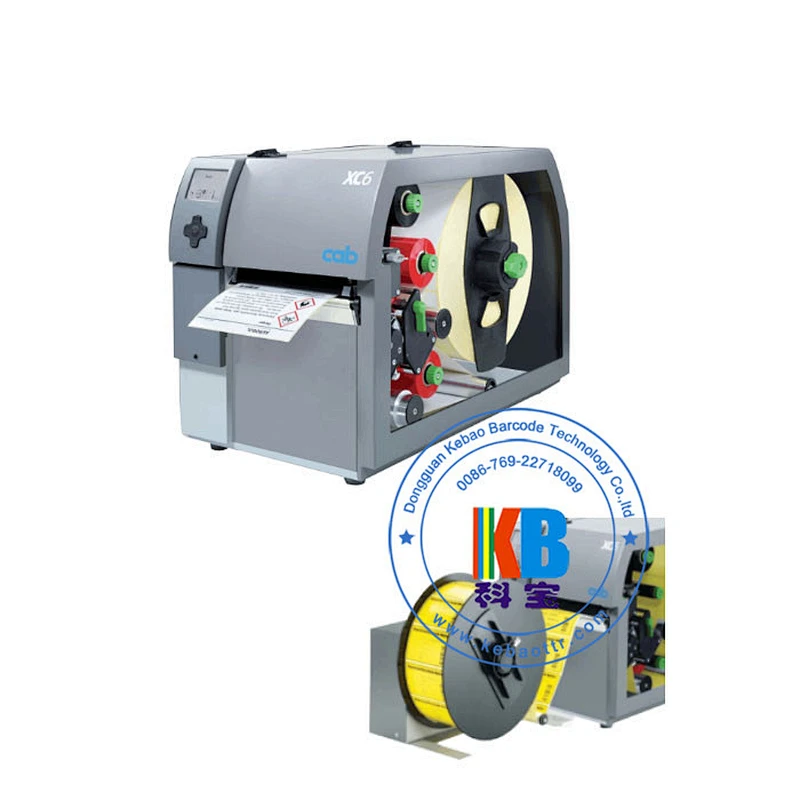

Introduce of two tone color printer ( Cab XC4 / XC6)


1. Equip with two pcs printer head which can ensure two kind ribbon (colors) print on one type label material for single side printing
2. The ribbon device can be decided by the first module printer head
3. Hard aluminum appearance shell
4. suits putting 300m outside inking ribbon
5. Double printer head modules with single operation panel main engine

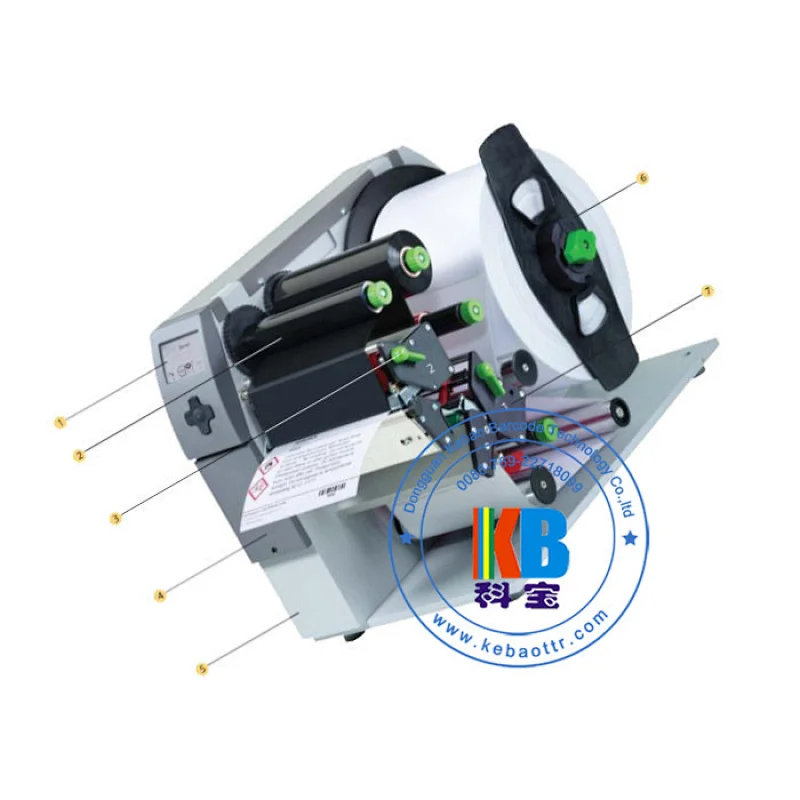

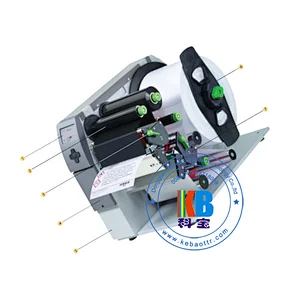

Structure parts of the printer

1. Big LCD display
White background lighted panel to clear show its printing status and functions buttons operations

2. Ribbon supply and rewind roller
Ribbon core rotary tighten design to ensure easily load and unload the ribbon

3. Easily to adjust different printing width
Through increase pressure on the printer head two side to control the printing quality, labels should be one side fixed on the printer left side, and to adjust the right side location suits for different width labels printing.

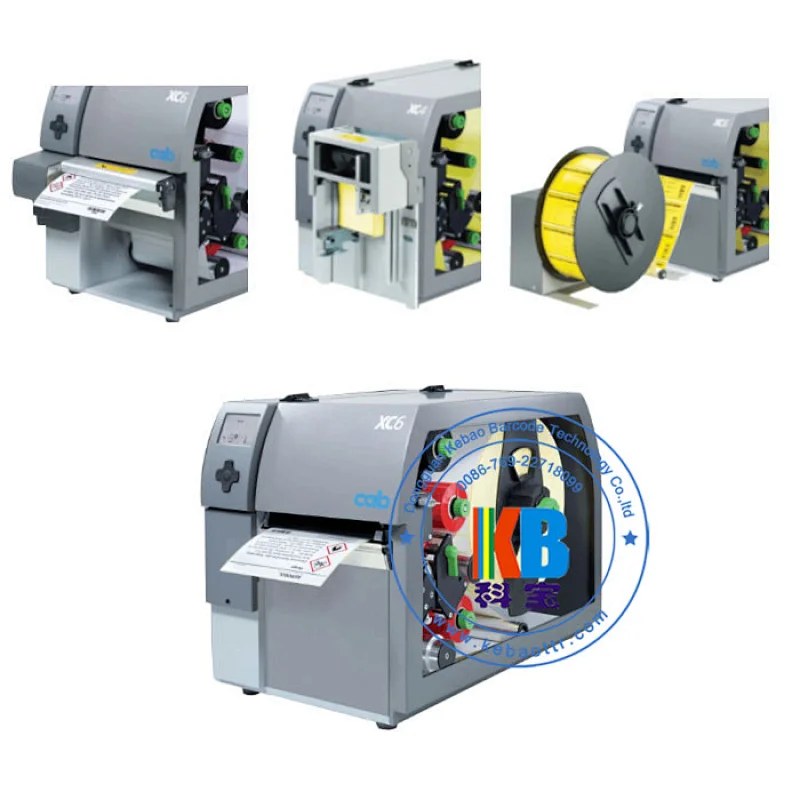

4. Expand the interface panel
Only need a screw fixed the USB panel, then can randomly install module spare parts, like cutter, outer hanging rewinder, labeling sensor or machine.

5. Hard and Solid Foundation structure
Unibody cast aluminum produced, all the printer structure firmly installed above the solid foundation holder.

6. label roller
Shrapnel control on the rotary label roller makes paper feeding more fluently and stable location.

7. The first module printer head can install extra ribbon-saving module
Ribbon-saving module to avoid the friction and dirt after printed the labels should be stretch back and forth, also can save the ribbon when need to print only small area content on the big labels.




Pharameters of the printer

Two tone color printing ( Two colors thermal transfer printing)
Printer model
XC4
XC6
Printing method
thermal transfer printing
Printer definition
300dpi
300dpi
The most printing speed
30, 40, 50, 70, 100, 125
30, 40, 50, 70, 100, 125
The max printing width
105.6 mm
162.6mm
2. Label substrates
suitable label materials
( die-cutting, roll type)
direct thermal paper, coated paper, plastic PET, bopp pe, PP , cardboard hang, clothing wash care labels etc
label thickness / weighs
0.05 -0.8 / 60- 180
label width
20- 116mm
if the backing paper is continuous pre-cutting labels , then the size 25-120mm
label height (mm)
20-2000
label roll
the max label diameter (mm) : 300
paper core: (mm) 76mm
rewind orientation: inside/ outside
3. Ribbon
thermal transfer ribbon
Inside/ outside ( support)
The ribbon max diameter
72 mm
The max paper core
1 inch 25.4mm
The max ribbon length
360m
The max ribbon width
25-114 mm
55-165 mm
4. Printer dimension
height* depth* width
395 *554*248
395*554*358 MM
weight ( KG)
22
24
5. label sensor
Penetration sensor
label forehead , perforated mark or label tail
reflective sensor (up and down)
perforated
Distance to leading edge
5-53 MM
7. High speed 32 Bit Cold Fire / Taktrate Mhz 266
(ram) MB
64
Memory IFFS MB Flash
8
dime-size standby battery
Alarm signs
It shows Alarm sounds when error comes
8. Transmission page
Alternative connected device 2* USB master for:
external operation screen, keyboard, scanner or service key
9. Operation environment
Power supply
100-240v - 50/60 Hz, PFC
The max Power consume
max .300W
Operation temperature/ humidity:
operation
storage
transportation
+5- 40c / 10- 85% not condensed
+0 - 60c/ 20-85% not condensed
-25 - 60C / 20-85 % not condensed
safety recognition
CE, IN preparation FCC class A, CB, CCC, UL
10. Operation LCD
Multi-function operation button:
led Graphics
Pause, paper feeding, cancel, choice, confirmation,

4 buttons
LCD graph
4 lines, 20 bytes
Width* height
0*40
11. Barcodes
One- dimension
Code 39, Code 93, Code 93 Full ASCII, Code 128 A, B, C Codabar, EAN 8, 13
EAN/ UCC 128, EAN/ UPC Appendix 2
EAN/ UPS Appendix 5,
FIM , HIBC
Interleaved 2/ 5, Ident-and leader, code of Deutsche Post AG.
JAN 8, 13 , MSI
Plessey, Postnet , RSS 14
UPC A, E , EO
Two- dimension
Aztec, Codablock F, Data Matrix, PDF 417, Micro PDF 417, UPS Maxicode, QR-cODE, rss 14 Truncated, limited, Stacked and Stacked omnidirectional, EAN-Datamatrix, GS1 Data Bar
All codes variable in height, module width and ratio. Orientation 0, 90, 180, 270. Optional with check digit, printed characters and Start/ Stop code depending on code type.

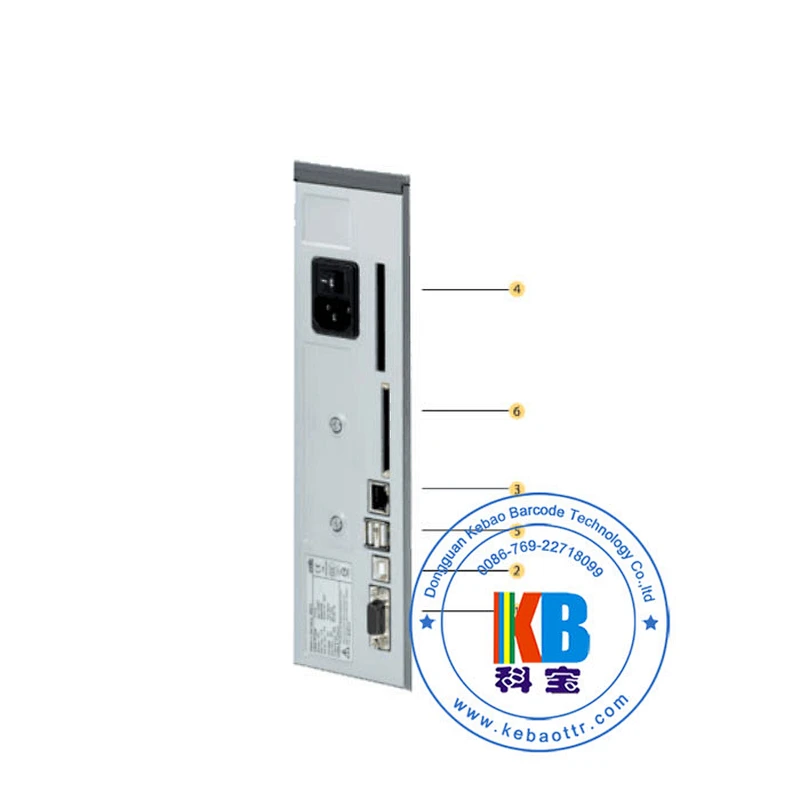

Transfer interface

Printer transmission interface

1. Serial interface RS232 c ( Didn’t support by XC4)
2. USB 2.0 connection interface
3. Support 10/100 TCP/ IP communication negotiation Ether network
4. Wife device , Wifi – card socket
5. 2 groups of USB- Master connection external operation panel , keyboard, scanner or maintenance USB flash drive.
6. Compact Flash Type / Momery Slot

Alternative choice: Wireless Network Cab WLAN card 802.11 b/g

Product introduction

Printer consumables

Our company"Dongguan Kebao Barcode Technology Co.,ltd company"has been engaged in printer and its printer consumabels since 2007, and majority in thermal transfer products, sublimation printer items and some relative products.
We can provide all the four kinds of printer materials suits for all printer use like, Cab , Sbarco, honeywell , TSC, TEC, Argox, Godex, Zebra Datamax, Markem Imaje, Videojet, Domino printer etc.
Wax ribbon: suits for most coated paper, adhesive label sticker with poor anti-scratch
wax resin: suits for coated paper as well, bopp pe opp materials, better than wax
resin ribbon: for synthetic paper, plastic , polyester PET, pe opp bopp etc.
wash ribbon : use on clothing/ garment apparel labels, like nylon taffeta, satin fabric ribbon, TPU iron on label etc.
