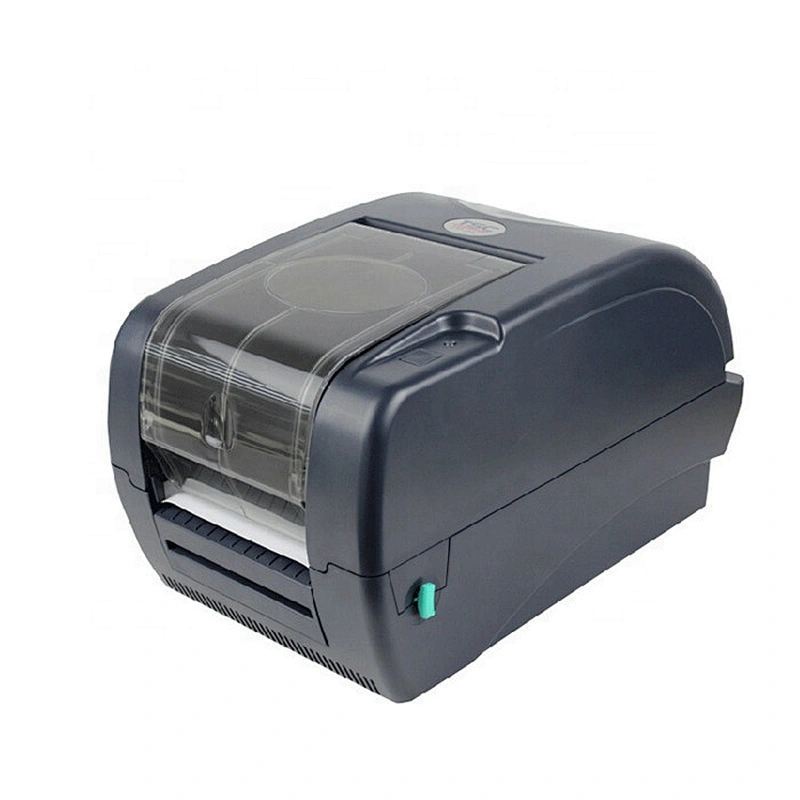

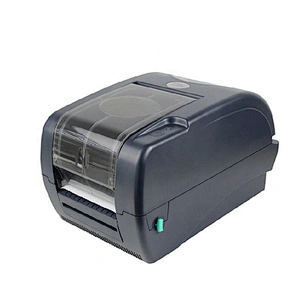

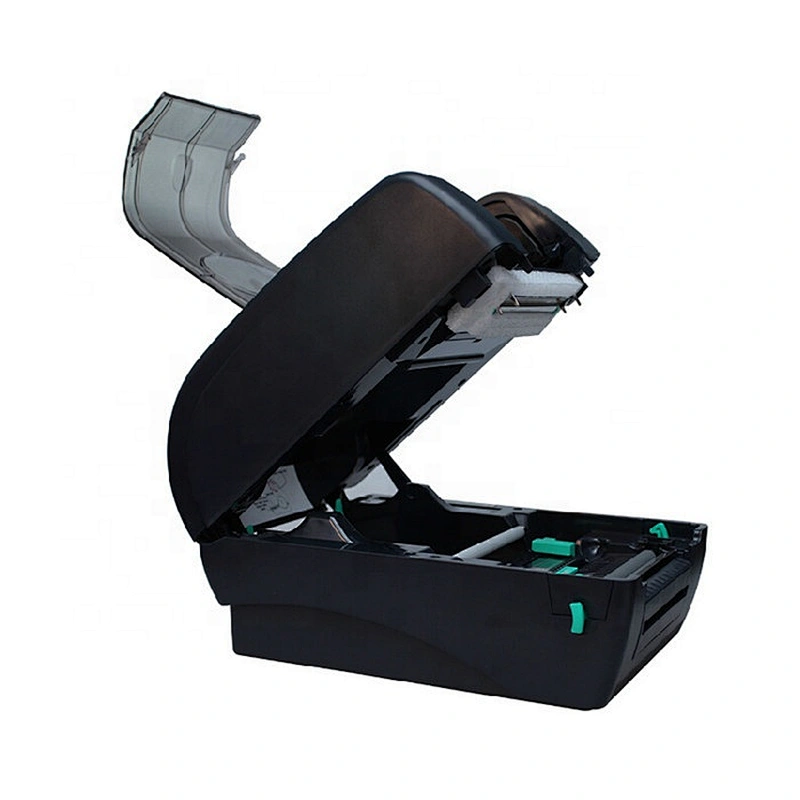

Printer model | TTP-247 | TTP-345 |
Printing resolution | 8 dots/mm (203 DPI) | 12 dots/mm (300 DPI) |
Printing method | Thermal Transfer printing & Direct Thermal |
Max. print speed | 178 mm(7)/sec | 127 mm(5)/sec |
Max. print width | 108mm (4.25) | 106mm (4.17) |
Max print length | 2,286 mm(90) | 1016mm (40) |
Printer shell | Double -check ABS plastic |
Physical Dimension | 213 mm (W) x 188 mm (H) x314 mm (D)/8.39"(W) x 7.40"(H) x 12.36"(D) |
Weight | 2.8 KG (6.17 lbs) |
Ribbon | 300m the max diameter 67mm , 1 inch roller ( outside inking) |
Ribbon width | 40 mm ~ 110mm (1.6"~ 4.3") |
Processor | 32 bit CPU |
Memory | • 4 MB Flash memory • 8 MB SDRAM • SD Flash card with expandable card extend up to 4 GB |
Communication interface | • Serial interface RS-232
• Parallel port
• USB 2.0
• In-built Ethernet Server ( Factory Alternative )
• USB host, support stand-alone operation keyboard, and barcode scanner
• GPIO (alternative option)
• Bluetooth (user alternative option)
• 802.11 b/g/n Wireless transmission (user option) |
Power Supply | In-built Power Voltage automatically switching power supply
• Input: AC 100-240V, 2A, 50-60Hz
• Output: DC 24V, 5A, 120W |
Operation panel | Display 128*64 Pixel backing light |
Operation switch-off, button | one switch-off power supply, Button Feed, LED indicator light) ( 3 colors, green orange red_) |
Sensor | Label distance sensor ( Penetration, location adjustable)
black line sensor ( reflective , location adjustable)
ribbon end-up usage
printing head up and down style sensor |
Real time clock | standard |
In-built typeface | • 8 alpha-numeric bitmap fonts
• Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font |
Barcode | • 1D bar code Code 39, Code 93, Code 128UCC, Code 128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Logmars
• 2D bar code
PDF-417, Maxicode, DataMatrix, QR code, Aztech
|
Font and barcode rotation | 0, 90, 180, 270 degree |
Printer language | TSPL-EZTM (Compatible to EPL, ZPL, ZPL II) |
label type | Continuous roll,distance labels, perforated tags, folded label, black line , cardboard tags, ticket, clothing care labels ( outside rewinded) |
Label width | 20~ 112 mm (0.78 ~ 4.4) |
label thickness | 0.06 ~ 0.19 mm (2.36 ~ 7.18 mil) |
label core size | 25.4 ~ 76.2 mm (1 ~ 3) |
label length | 10 ~ 2,286 mm (039"~ 90") | 10 ~ 2,286 mm (039"~ 90") |
Environment condition | Operation environment : 5-40 c humidity ( Non-condensed) 25-85%
storage environment: -40-60c humidity ( Non-condensed) 5-90% |
Environment regulations | Comply with RoHS, WEEE |
Safety regulations | FCC Class B, CE Class B, C-Tick Class B, UL, CUL, TÜV/Safety, CCC |
Accessories | Windows labels roll editor software, cd driver and operation Manual files
quick-installation guideline
USB transmission line
power supply line |
Factory option | In-built Ethernet printer server
Date/ Time generator (RIC) |
Dealer option | label peel off module ( include the label peel off device, internal label rewinder or stripping sensor)
Auto cutter ( switch blade) ( full cutting or half cutting shape) |
User option | • Bluetooth module (serial interface)
• 802.11 b/g/n Wireless module (serial interface)
• 3"paper core
• stand-alone operation keyboard ( KP-200 Plus, KU-007 PLUS) |
