Model NO.
CL4NX CL6NX
Price:
USD 2,590.00-2,622.00 / piece
Delivery:
FOB
Minimum order quantity:
1 piece
Supply Ability:
20 piece / Quarterly
Country of Origin:
shenzhen, dongguan
Quantity:
  • Products Status:Stock
  • Products Status:Used
  • Style:Black And White
  • Use:Barcode Printer
  • Interface Type:USB
  • Place of Origin:CN;GUA
  • Type:thermal transfer printing, direct thermal printing
  • Max Paper Size:104mm
  • Black Print Speed:6 ips , 8 ips 10 ips
  • Color Print Speed:6 ips , 8 ips 10 ips
  • Max. Resolution:600DPI 300DPI 200DPI
  • Brand Name:SATO
  • Model Number:CL4NX CL6NX
Product Description

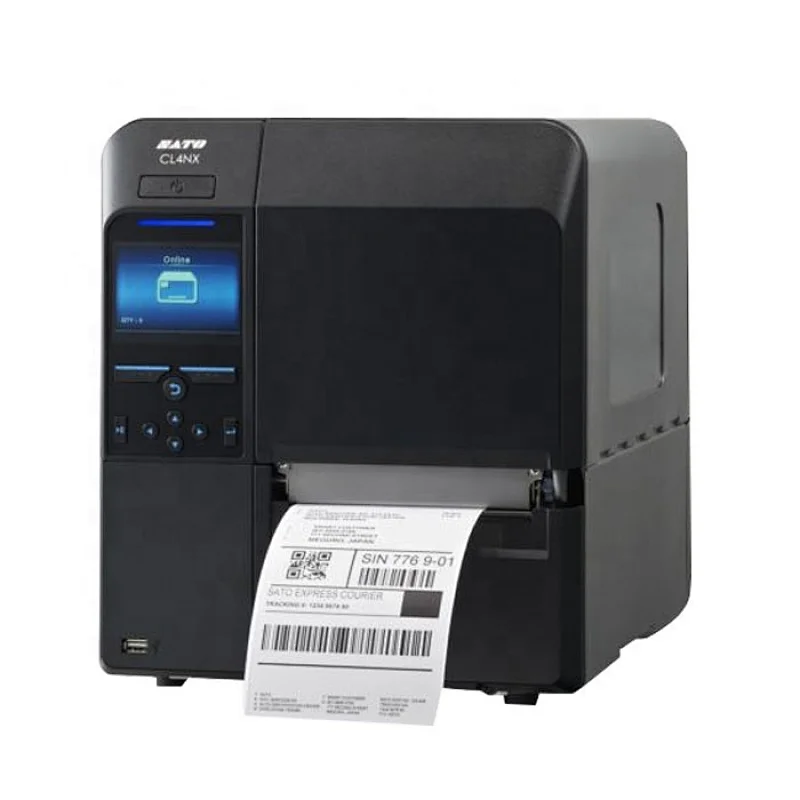

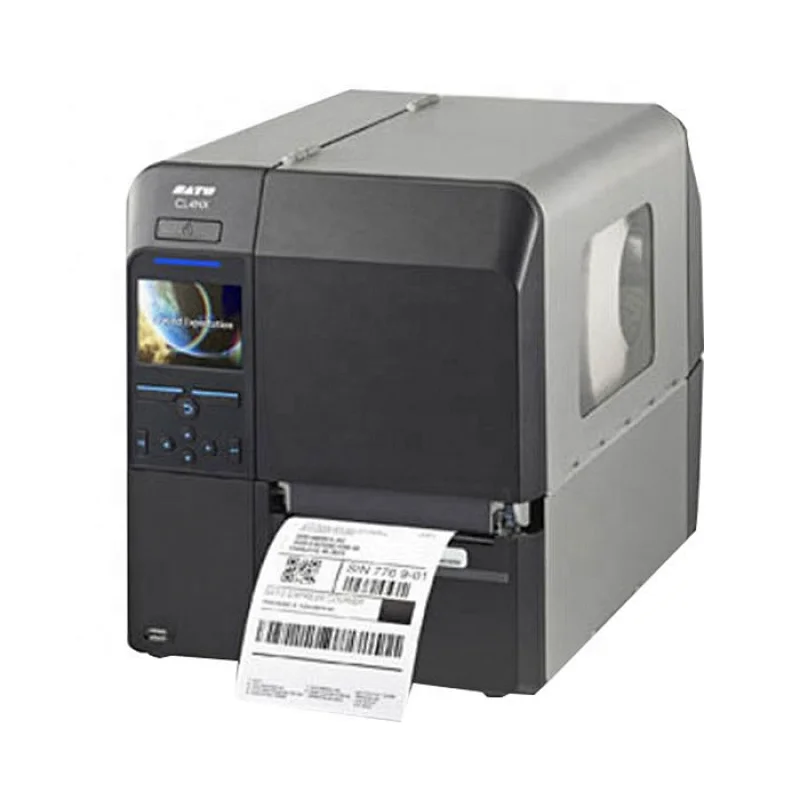

CL4NX CL6NX adhesive label sticker QR barcodes Tags printing barcode label RFID printer

Plug and play mode, multifunctional intergration, simplified operation

> Industrial barcode printer duarable and steady working.
1. Metal constructure front panel and side cover suits for factory or severe environment.
2. Aluminium die-casting body, provide the stable function for the printer, printer ribbon device to ensure its good performance
3. Printer freely maintanance for one year, printer head and the roller maintanance last long 30KM.

Function constructure

1. double folding cover design , in case to meet the request for saving working space.

2. Label and ribbon support inside and outside, also can enlarge the label capacity putting throught adjust the label core.

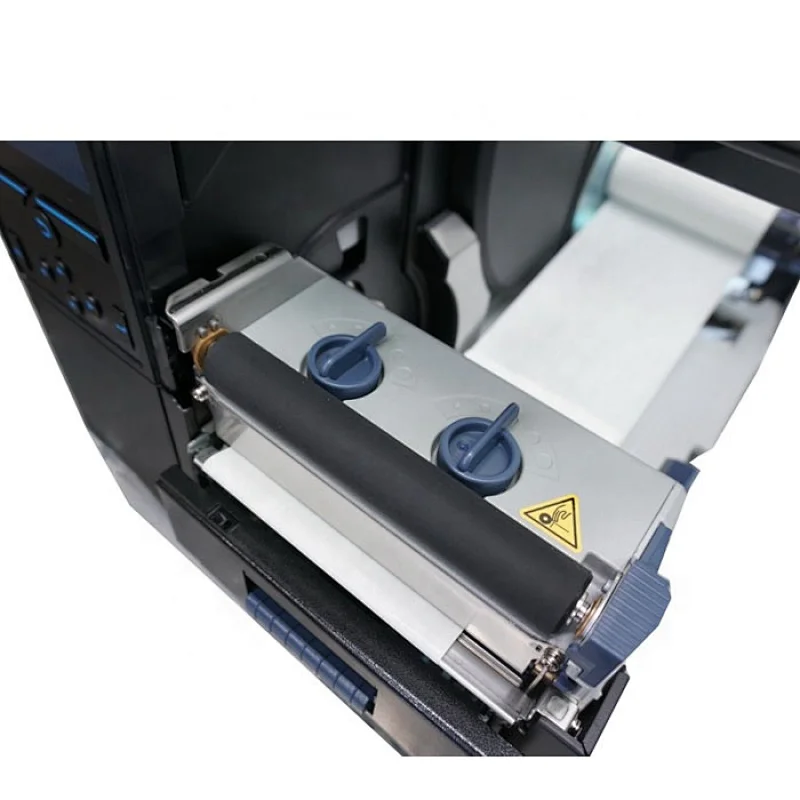

3. Under the working site , support manual change the printer head and label roller quickly , in case for saving the off-line time.

Visual user LCD page

1. LED industruction to state the printer status all the time, direction video helps to solve the issues immediately.

2. Advance user Page for better control on printing, applications I/F and system settings.

3. Can customize GUI ( Graphics interface ) text and permission settings to realize personalised operation experiences.

4. Printer opening 60C , avoid -shaking device and without -core ribbon rewinding roller make the installation steps easier.

On-time and high effiency

1. Printer self-examination fuctions, doing analysis before every printing to make sure its right printing.

2. High Speed dealing with data, printing speed can reach to 10ips .

3. 10 pcs pre-set concentration grade for adjustment to make this meet the best printing requirements.

4. UHF RID selective support wide labels material, it can insert code through antenna devices.

Multifuction Intergration


1. Standard serial , parallel , LAN and USB intergrated interface support all the old and new system, WLAN selective.

2. SZPL, SIPL , SDPL. STCL printing language can do exchange in current system.

3. Automatic recognization different communication interface , automatically calibration and adjust the Voltage Value , to make sure its quickly exchange printing task.

4. 30 kinds display language, 40 types printing language, 15 types SATO in-built typeface, the extra download rooms can provide the unit format.

5. Global safety certificate contribute to the enterprise global layout and potential expension .

Continous creation and Innovation

1. Without -core printer ribbon simplified operation steps , rewind the ribbon directly onto the rewinder roller would be ok, when take out the ribbon by Pushing and the ribbon will fallen out easily.

2. Throught Energy Star Recognization, it can save engergy cost by the premise didn't reduce functionality.

3. Optional Non-backing paper device helps for saving energy, so that can incresed the amounts for each roll.

Printer parts

Printer optional extra parts

> Front Hand-Hay Cutter

> It can set for single or Batch Quantities printing.

> Cutter living in long life

Standard format of inside rooms

> Tearing label block slice apply on manual tear off the labels


> Can adjust the label guide to expand the space support 10 inches diameter labels.

> Throught external media card slot, it can delivery the labels from the bottom or the rear of the printer.

Peeling off label device

> Peeling off Unit include the label stripper pole.

> Extra parts can match with backing paper recycle devices.

Non - backing paper

> Puretech Non-release paper device

Non-release paper cutter match with corresponding sensor.

> Anti-stick Puretech Roller , Media route and sensor cover.

> Can recognize the Purtech roller abrasion status through the mark

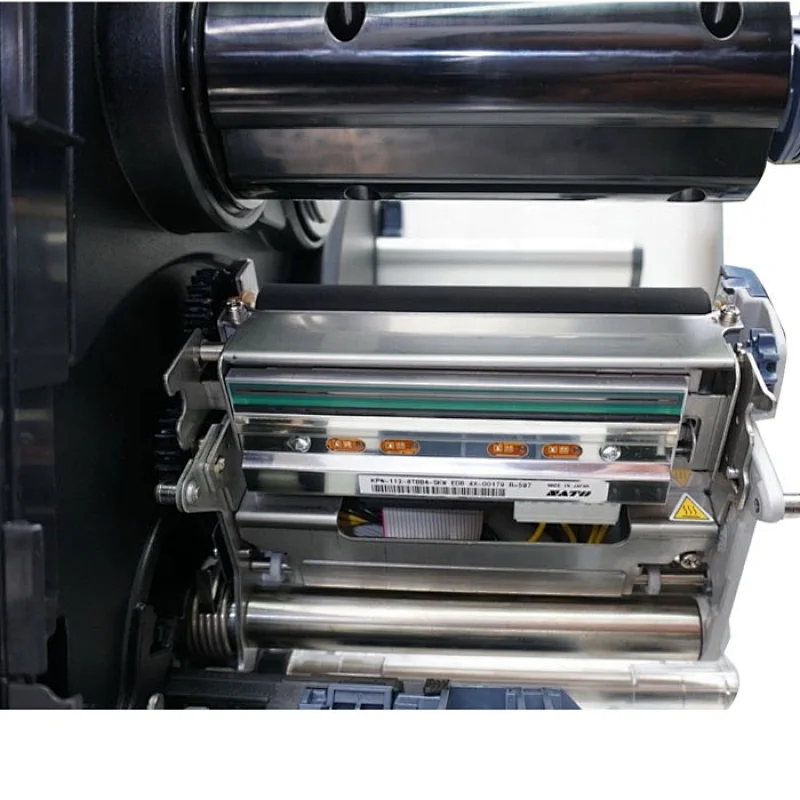

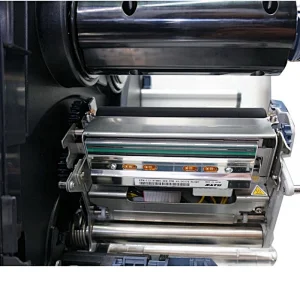

Printer head

> 203 , 305, 609 dpi printing resolution

> User can quickly exchange it by yourself

> Printing definiton can be automaticall be examined.

WLAN

>802.11a/b/g/n

> 2.4/5 Ghz double frequency switches.

> WI-FI and CCX certificate

Time and date

> Track time and date.

> Time stamp labels

RFID encoder

> UHF ISO/ IEC 18000-6 Module

> Global frequency range settings

> Support super short distance labels.
Only support in CL4NX printer.

Pharameters

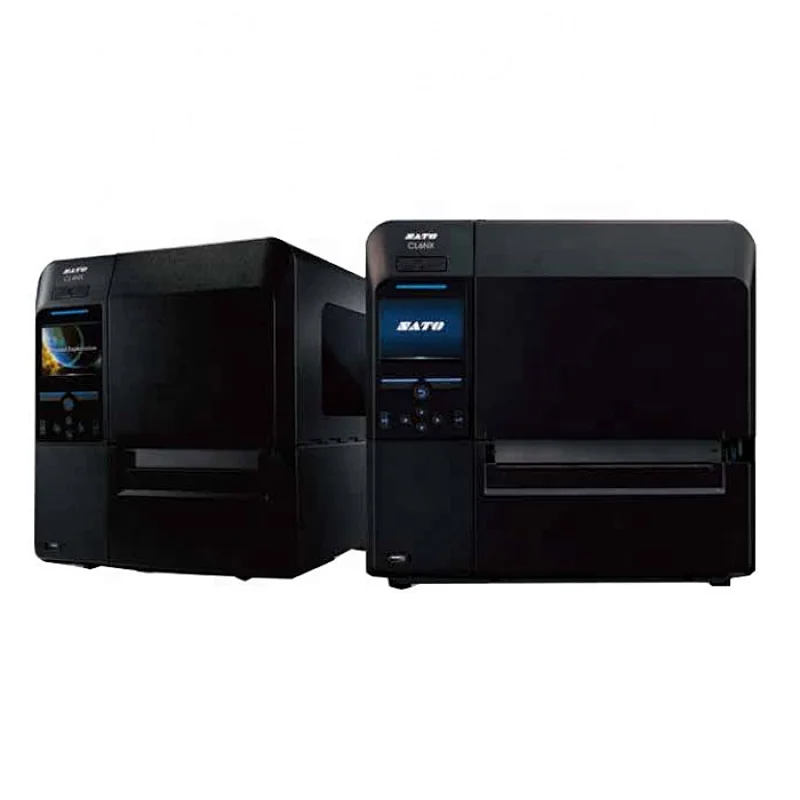

Printer model
CL 4NX
CL 6NX
Printer specifications / pharameters
Resolution
203dpi (8 dots/ mm)
305dpi (12dots/ mm)
609dpi ( 24dots/ mm)
203dpi (8 dots/ mm)
305dpi (12dots/ mm)
Max printing speed
10 ips ( 254mm/sec)
8 ips ( 203 mm/ sec)
6 ips ( 152mm / sec)
10 ips ( 254mm/sec)
8 ips ( 203 mm/ sec)
Print mode
Continous , tear off, cutting label, peeling off, without release paper
Continous , tear off, cutting label, peeling off
Max printing scope
w104mm*p2500mm
w104mm*p1500mm
w104mm*p400mm
w167.5mm* p2500m
w167.5mm * p 1500mm
Printer consumables ( printer ribbon, label material pharameter)
printer sensor
black mark sensor (reflective), distance sensor (penetration ), label end using , ribbon end using, ribbon almost ending.
Continoius printing (with backing paper)
p: 6-2497mm
(9-2500mm)
p: 6-1497mm
(9-1500mm)
p: 6-397mm (9-400mm)
p : 16- 1249mm ( 19- 1252mm)
RFID mode: p: 13- 240mm ( 16-240mm)
tear off labels
(with paper)
p: 17-2497mm(20-2500mm)
p: 17mm-1497mm (20mm-1500mm)
p: 17-397mm (20-400mm)
p: 16- 1249mm ( 19- 1252mm)
RFID mode: p: 17- 240mm (20-240mm)
Knife cuttting printing
(with paper)
P: 17- 2497mm (20-250mm)
p: 17mm-1497mm( 20-1500mm)
p: 17- 397mm ( 20-400mm)
p: 16- 1249mm ( 19- 1252mm)
RFID mode: p: 17- 240mm (20-240mm)
Peeling off printing
(with paper)
P: 27-397mm ( 30- 240mm)

RFID Mode: P 27-240mm ( 30-240mm)
p: 27-397mm ( 30-240mm)
printing model
(Non paper)
P: 30-120MM , W: 32- 128mm
Width (with paper)
W: 22 -128mm ( 25-131mm)
W: 47 -177mm ( 50-180mm)
Label max diameter
Max 220mm , it can reach to 254mm after refit , core 76mm
Label media thickness
0.06 -0.268 mm


Ribbon
W: 39.5-128mm
W: 39.5mm-177mm
Ribbon rewind direction: inside/ outside no need to set up
Ribbon diameter: MAX 90mm , ribbon core 25.4MM
CPU & Storage
double CPU& double operation system
Linux OS and CPU1: 2GB ROM, 256MB RAM; ITRON OS and CPU2: 4MB ROM, 64MB RAM
User convenient usage function:
LED status light
Blue/ red
Alarm sound
Alarm buzzing ( sound grade 3)
self examine
printer head self-examination, cutter opening inspection, stand-by mode, automatically calibration label, auto matically recognize printing language
LCD display:
TFT 3.5"FULL COLOR LCD
Mutli-language support
In-built 47 kinds printing language, 30 types LCD display language
In-built 47 kinds printing language, 30 types LCD display language
Operation video:
pre-settings: 18 videos( printer consumables installation, spare parts exchange, cleaning, set RFID antenna Optional: customize video ( max to 100MB) only in CL4NX
External communication interface:
Standard
USB 2.0 (TypeA,B), Ethernet (IPv4/v6), RS232C, IEEE1284, EXT, Bluetooth Ver.3.0
Selective/ optional:
Wifi and CCX certificate, IEEE802.11 a/b/g/n, double frequency(2.4GHz/5GHz)
Options/ selective extra parts:
extra parts:
Peeling off machine(in-built rewinder), time-date, WLAN kit, UHF RFID, without paper kit
Cutter, simplified label peeling off machine ( built-in label stripper), time-date , WLAN kit
Typeface:

In-built
typeface
Bitmap Fonts
U , S , M , WB , WL , XU , XS , XM , XB , XL , OCR-A , OCR-B , Chinese (GB18030, BIG5) , Korean (KSX1001)
Scalabel Fonts
15 kinds SATO typeface
Can download typeface, visual images, format space up to 100mb
Barcode :
Barcodes:
1-D codes
Code 39 , Code93 , Code128 , CODABAR (NW-7) , EAN8/13 , GS1 DataBar , GS1-128 (UCC/EAN128) ,

Interleaved2/5 , Industrial2/5 , JAN8/13 , Matrix2/5 , MSI , Bookland , POSTNET , UPC-A/E
2-D codes:
PDF417 , Micro PDF , Maxi Code , GS1 Data Matrix , QR code , Micro QR Code , Composite Symbologies
Operation environment:
Power supply
Automatical exchange power supply: 100 -240 VAC +- 10%, 50/60 HZ, energy star
Voltage
Peaking: 190 VA/ 180 W standby: 40VA/ 19.5W
peak: 308VA/ 240 W Standby: 63VA/ 23W
standard and certificate
IEC 60950, CE Marking, EN60950-1, EN55022 Class A, EN55024, R&TTE, NEMKO-GS, cMETus, UL60950-1/CSA C22.2 No.60960-1,

FCC 15 (SUB B, C), ICES-003, NMB-003, BIS, C-Tick, RCM, CCC, SRRC, KC, S-Mark (Arg), SIRIM, IDA, PTQC, NBTC
Environment:
Operation: continous/ tear/ cutting: 0-40c, peel off/ without paper : 5-35c
continous / peel off/ cutting/ tear off : 30%-80% RH ( uncondensed); without paper: 30%-75% ( uncondensed)
Continous/ tear off/ cutting: 0-40c; peeling off 5-35c
30%-80% RH ( uncondensed)
Storage: -20c - 60c , 30% -90% RH ( uncondensed)
Physics characters:
Apperance size/ Weight
w 271mm * D 457MM *H 321MM /15kg
W338MM * D457 MM *h321MM /20kg
Structure:
Aluminum die-casting, ( bottom, shell frame, front cover, ribbon roller, printer device)
Body side cover:
double folded type for space-saving, with big vision window
base plate installation:
3 perforate hole fixation, can flat or oblique installation
Package

CL 4NX W 28CM * 46CM* 33CM 16/ KG net weight

CL 6NX W 35CM* D 46CM * 35CM 21KG Net Weight
