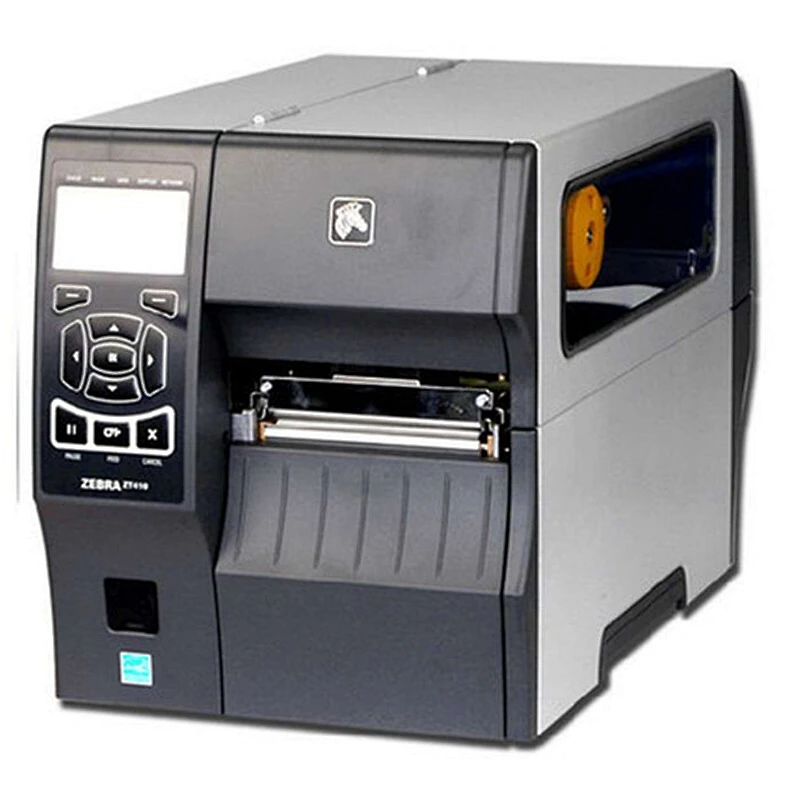

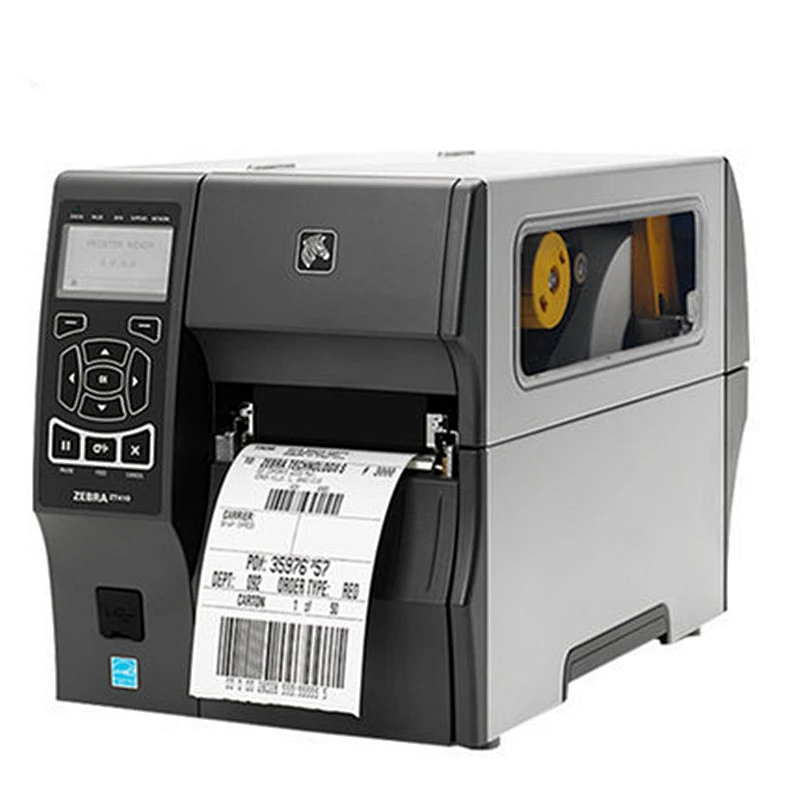

Printer model | Zebra ZT410 |

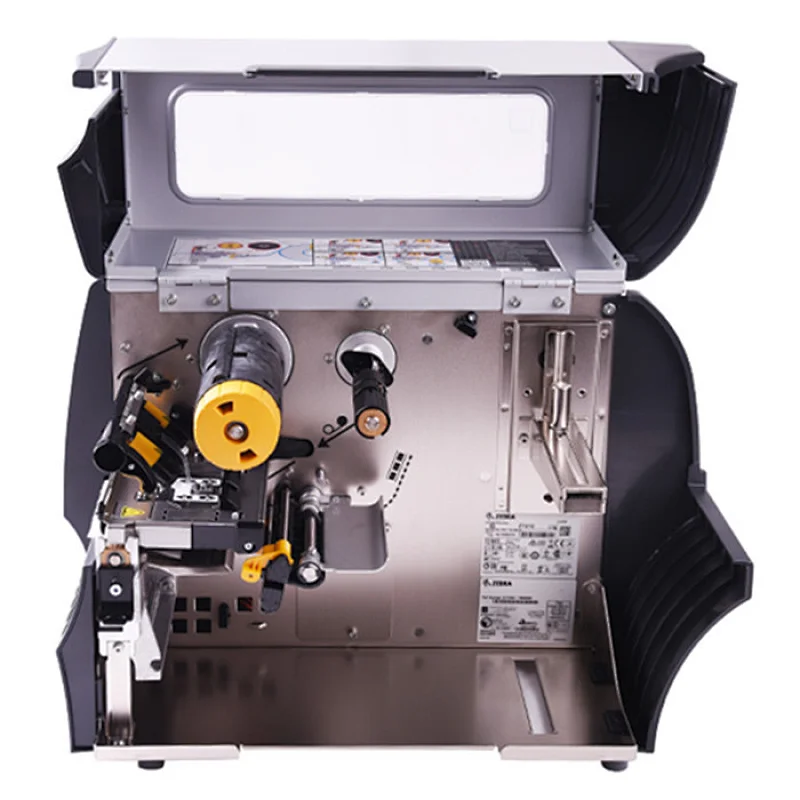

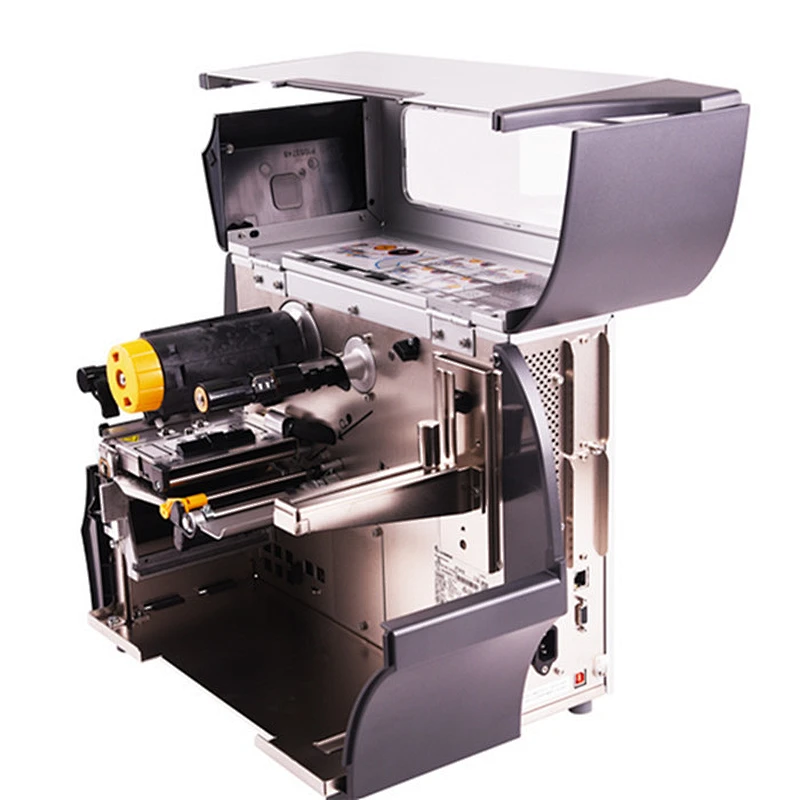

Standard features | Structure: metal shelf Frame
withoepn and big window and media folded cover
side type consumable installation, make it easily for installation of ribbon and labels
With Element Energy Equalizer (E3) Technology to make sure excellent printing quality.
double color LED, quickly to monitor the printing status of the printer
Multi languages and graphics user interface and full-function keyboard ( ZT410)
USD 2.0 and RS-232 Serial interface, 10/100 Ethernet, bluetooth 2.1, USB main ports
Dual color status LED, quickly realized monitoring the printing status
Pass certificate ENERGY STAR |
Printing method | Thermal sensitive / thermal transfer printing |
Printing definition | 203dpi / 8 dots/ mm
300dpi 12 dots/ mm
600dpi 24 dots/ mm( only for ZT410 , Alternative) |
RAM | 256 MB RAM
512 MB flash memory |
Printing width | The max printing width:
4.09 inches/ 104mm (ZT 410)
6.6 inches/ 168MM ( ZT420) |
Printing speed | The max printing speed:
14 ips / sec 356mm ( ZT410)
12 Ips/ sec 305MM ( ZT420) |
Media sensor | Transmission line, reflective and penetration type. |
Media characteristic | The biggest size/ backing paper: 4.5 inches/ 114mm
uncontinuous label length: 39 inches/ 991mm |
Media characteristics | Between ZT410 and ZT420 |
Label diameter | Label width : ( label and backing paper) 1. ZT410 * 1 inch/ 25.4mm to 4.5 inches/ 114 mm, tearable paper/ cutter * 1 inch/ 25.4mm to 4.25 inches/ 108mm, label stripping/ rewinding
2. ZT420
* 2 inches/ 51 mm to 7 inches/ 178mm, tearable paper/ cutter
* 2 inches/ 51mm to 6.75 inches/ 171mm, label peelling / rewinding.
The uncontinuous label max length: 39 inches/ 991 mm
|
Printing length | ZT410 ZT420
203dpi 157 inches/ 3988mm 102 inches/ 2591mm
300dpi 73 inches / 1854mm 45 inches/ 1143mm
600dpi 39 inches/ 991mm |
Media thickness | 0.0023 inches/ 0.058mm to 0.01 inches/ 0.25mm |
Media type | continuous label, die-cutting label, black line labels , perforated label sticker |
Ribbon specifications: | Only support thermal transfer ribbon |
Diameter | 450m , 3.2 inches / 81.3 mm , core size 1 inch/ 25.3 mm |
Standard length | |
Label width | ZT410: 2 inches/ 51mm to 4.33 inches/ 110mm
ZT420 : 2 inches/ 51mm to 6.85 inches/ 174mm |
Ribbon rewinding | outside inking |
Environment pharameters | Thermal transfer printing:
working temperature: 40 F/ 5C to 104 F/ 40C ( thermal transfer)
Direct thermal:
32 F/ 0 C to 105 F/ 40C ( direct thermal)
storage, transportion environment: -40 F/ -40C to 140F / 60C
working humidity: 20% to 85% ( uncondensed)
storage humidity: 5% to 85% ( uncondensed) |
Electric pharameters | General automatic range power supply ( comply to PFC regulation) 100-240VAC, 47-63HZ
Accordance with Energy Star |
Organization standard | IEC 60950-1, EN 55022 Class B, EN 55024, EN61000 -3-2 , EN61000-3-3
cTUVus, CEMarking, FCC-B, ICES-003 , VCCk C-Tick, NOM, S-Mark, CCC , GOSTR, KCC, BSMI, UkrSepro ( ZT230) |
Physic pharameters | Closing condition:
19.5 inches ( L) * 10.6 inches ( w) *12.75 inches ( H)
495mm* 269mm * 324 MM
Weight: 36 pounds 16.33 KG
Specifications for ZT420:
19.5 inches (L)* 13.25 inches (w) * 12.75 inches ( H)
495MM *337mm* 324MM
weight: 40 pounds / 18.4KG |
Alternative options | ZebraNel a/b/g/n wireless printer server
zebraNet 10/100 wiresss printer server ( insert or outputting)
Centronics parallel ports ( insert) |
Firmware | ZPLP
Zebra Global printing solutions
EPL2
Web View and warning
ZBI 2.0 ( alternative) |
Barcode type | One dimension: Code 11, Code 39, Code 93, with A/B/C subset Code 128 and UCC Case Codes, ISBT -128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2 Bytes or 5 Bytes expand, Plessey Postnet, Standard 2-of-5, Industrial 2-of -5, Interleave 2 of-5, Logmans, MSI, Codabar, Planet Code
Two dimension codes:
Aztec, Codablock, PDF 417, Code 49, DataMatrix, MaxiCode, QR Code, MicroRDF 417, TLC 39, RSS-14 |
Font and Graphics | 7 ways dot matrix , one way smooth vector font
Triumvirate TM bold compressed words ( include Agfa Mototype, Corporation UFST)
Supply flexible font comply with Unicode for EMEA character set
support Character set IBM Code Page 850
Support User OEM graphics and font , logo etc
ZPLII draw order include the square and line |
