Use:thermal receipt printer, direct paper roll sticker printing
Max Paper Size:58mm
Black Print Speed:70mm/sec
Color Print Speed:no
Max. Resolution:384 dot /line
Brand Name:no
Model Number:M1
Product Description

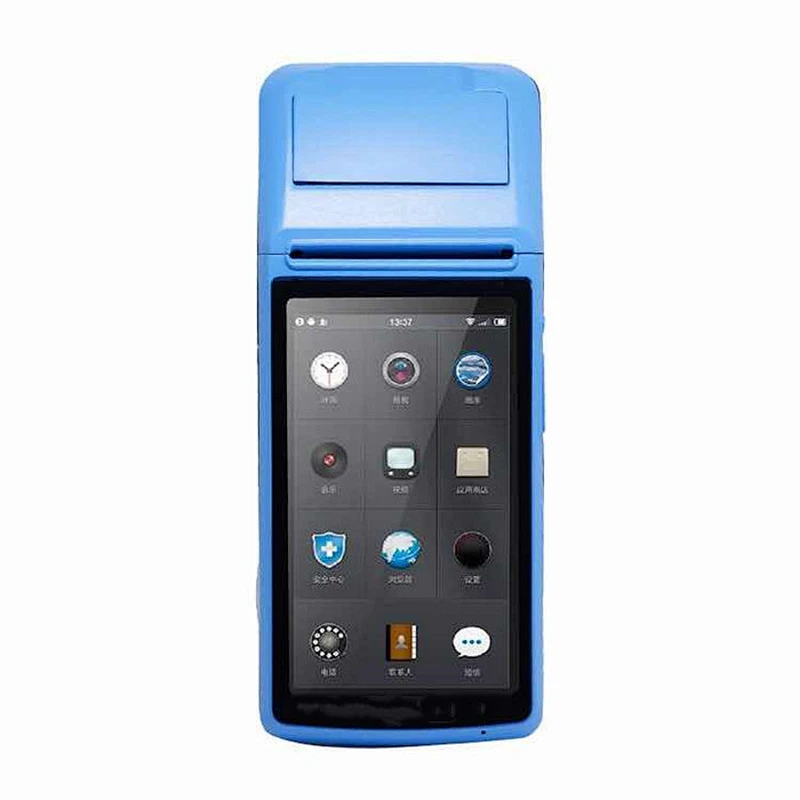

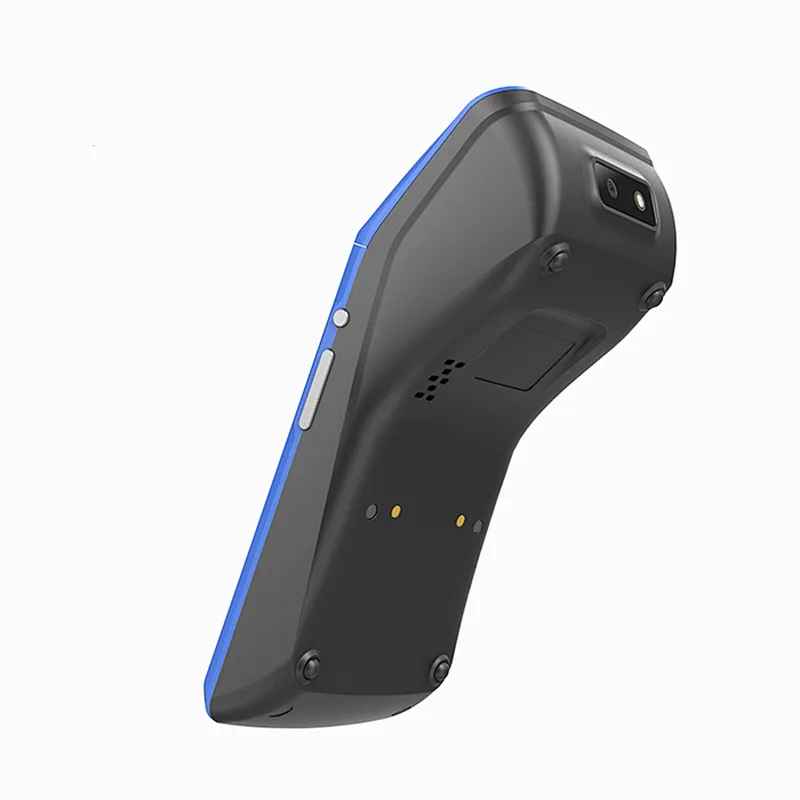

mini M1 58mm touch screen Bluetooth label thermal paper roll label printer
Features : 1. High performance and super endurance under commercial scene 2. Stable performance with updated Android 6.0 system. 3. Super endurance battery life with 3.7v/7500mAh High batterypowered 4. with 5 megapixels and built-in flash 5. 5 inch HD 720*1280 IPS touch screen with 180 degree viewing angle 6. Built-in high speed printer with Bluetooth/Wi-Fi/3G connection. 7. Quickly identify QR code and Barcode 8. Full network coverage. 9. Provide more convenient software services toolkit to help you manage your business users effectively. 10. Resist compression, Anti fall, durability.
M1 barcode label printer
Operating System
Android 6.0
CPU
1.3GHZ ,ARM Cortex-A7
Storage
8GB
Memory
1GB
Function Support
Support GPS, GPRS
LCD screen
5"Inch,HD 720*1280 IPS
Touch Screen
Capacity Dual-point Touch Screen
Camera
5 megapixels,(Max. 5 megapixels), Auto zoom camera
Multimedia Supports
MPS,AAC, OGG
Charging mode
Charging Seat (Optional)/DC charging
NFC Supports
Type A, Type B
WIFI
2.4G, Support IEEE802.11b/g/n
Bluetooth
Bluetooth 2.1/3.0/4.0,support BLE
Button
Power button/Volume key
USB interface
Micro USB, support USB2.0,with OTG function
Battery
Inside battery 3.7V/7500mAh
Printing Mode
Thermal Line Printing
Thermal Line Printing
58mm
Paper Width
48mm
Mechanical Properties
50KM
Printing Speed
70mm/s
Paper Type
Thermal Roll Paper
Paper Width
58.0±0.1mm
Roll Diameter
Max 50mm
Paper Thickness
0.05-0.15mm
Adapter power
Input AC100-240V; output DC5V/2.4A
Charging time
4 hours
Standby Time
5-6 days after fully charged
Printer
Inside thermal Printer
Dimension
195*85*55mm
Unit Weight
240g
Unit Weight(GW)
250G
Mechanical properties
50KM
Color
Black+blue
Bluetooth Effect Range
Around 6-9 meters(Depend)
Temperature
Working: 0 to 45 Degree; Storage: -20 to 60 Degree
Humidity
Working: 20%-85%; Storage: 5%-95%
box size
253x235x75mm
Packing & Delivery
barcode label receipt printer
Packaging: Neutral Packaging
Terms of trade: We accept trade based on EXW, C&F, FOB CIF terms,
Shipping: By express: FEDEX, DHL, TNT, UPS, EMS (suitable for small quality, urgent occasions, door-to-door services) By sea: designated seaport(mass production, cost-effecient, takes long) By air: International custom airport(fast-way delivery, airport-to-airport, more expensive)
Payment of terms: We accept L/C, money gram, T/T, West Union, Escrow, all throght negotiable.
