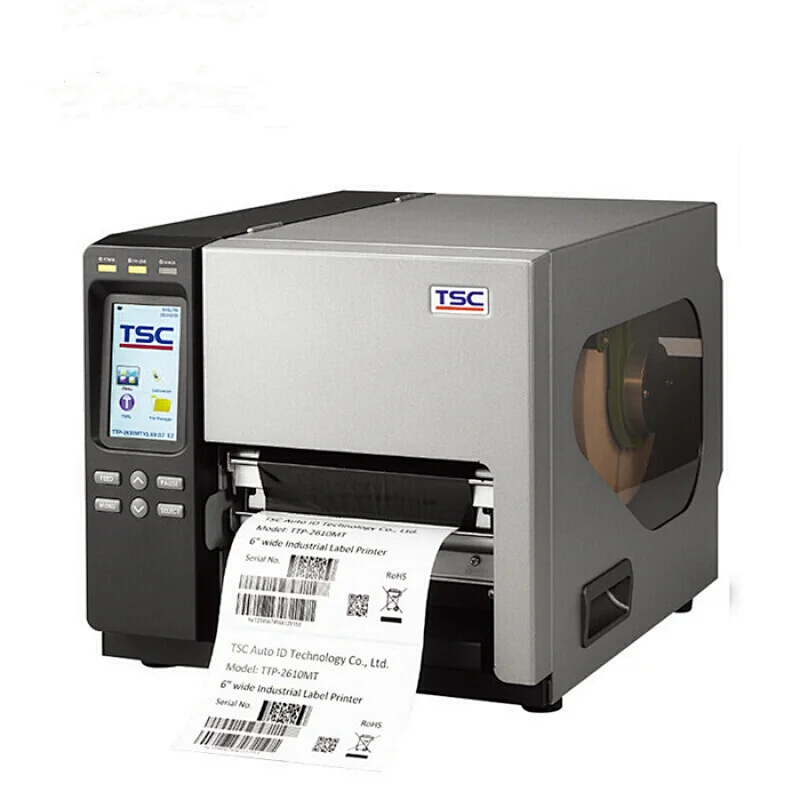

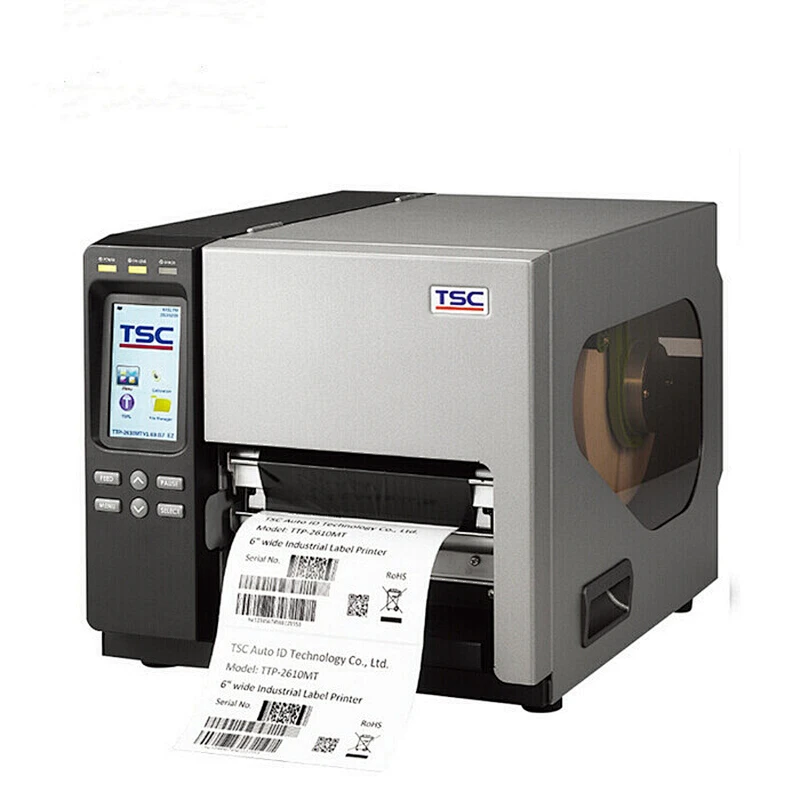

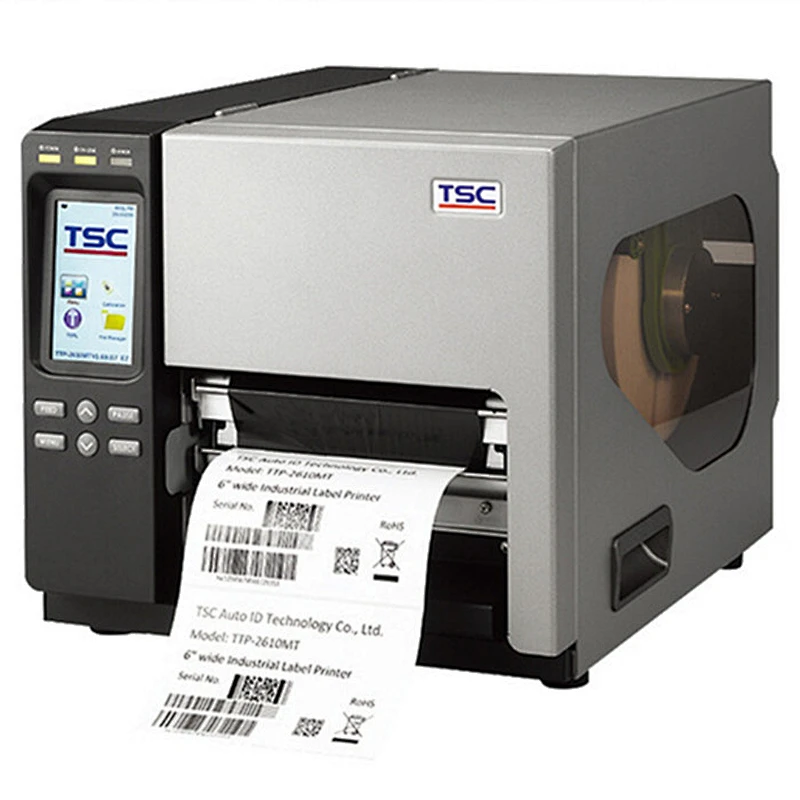

High speed mutl-functional TTP384MT fabric textile large format labelling machine
* Thermal Smart Control tm Printer head to perform printing technology , providing high clarity and high quality barcodes. * Printing speed up higher to 152mm/ sec ( 6 inches/sec) TTP 286MT of 203dpi, 300dpi printer reach to 4 IPS * 4.3 inches color touch screenand 6 panel operation button. * 512 MB Flash and 256 MB SDRAM * Heavy duty Aluminum alloy shell design with large open widow. * USB host ports can support the stand- alone operation. * there's differnet models TTP 286MT (203 dpi), TTP384MT( 300dpi) * ribbon length up to 600m per roll * SD RAM can extend and upgrade to 32 GB * Demostration of the ribbon length * The Label sticker max width can reach to 241.3mm*9.5 inches), and in the circumstances of 300dpi TTP 384 MT printer, it can reach to 219.5mm( 8.64 inches) * High speed processor 536Mhz * Humanized printer language , simulation other brand ( Eltron, zebra,)barcode procedure language * Alternative options : GPIO interafe, cutter module, bluetooth or 802.11b/g/n wireless module.
8 dots/mm (203 DPI)
12 dots/mm (300 DPI)
Thermal Transfer printing & Direct Thermal
Max print speed
Max. print width
216mm (8.5 )
Max printing length
11,430 mm (450")

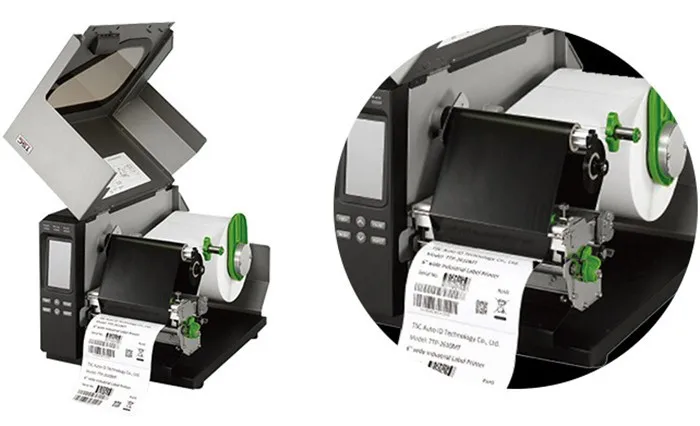

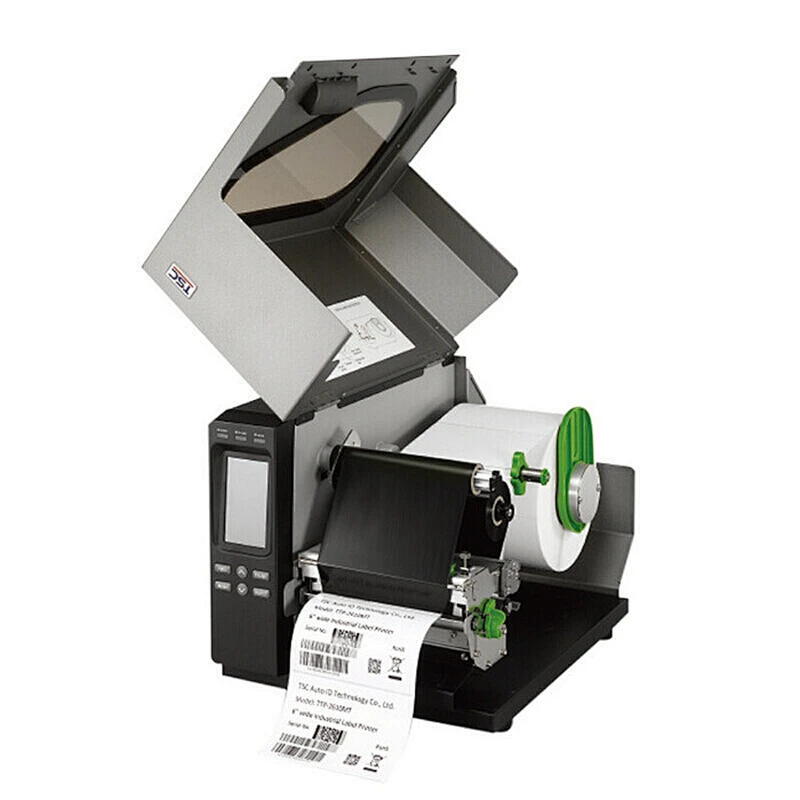

Main structure: Aluminium alloy structure , metal shell , with an open window design
23.7KG (50.25 lbs)
Label Capacity Diameter
208.3 mm (8.2") OD
600 m max. OD 90 mm, 1"core (inking outside)
110 mm ~ 254 mm (4.3"~ 10")
32 bit CPU
• 512 MB Flash memory • 256 MB SDRAM • SD Flash card with expandable card extend up to 32 GB
• Serial interface RS-232 • Parallel port • USB 2.0 • In-built Ethernet Server • USB host, support stand-alone operation keyboard, and barcode scanner • GPIO (alternative option) • Bluetooth (user alternative option) • 802.11 b/g/n Wireless transmission (user option)
In-built Power Voltage automatically switching power supply • Input: AC 100-240V, 3.0A, 50-60Hz • Output: DC 24V, 8.33A, 220W
Display 480*272 Pixel and backing light, 16 bits color LCD screen, touching panel
Operation switch-off, button
one switch-off power supply, 6 buttons ( Menu, Pause, Feed, Up, Down, Select)
Real time clock
Real time clock
• 8 alpha-numeric bitmap fonts • Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font • Download Windows typeface for usage through Internet
• 1D bar code Code 39, Code 93, Code 128UCC, Code 128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST,GS1 DataBar, Logmars • 2D bar code PDF-417, Maxicode, DataMatrix, QR code, Aztech
Font and barcode rotation
0, 90, 180, 270 degree
TSPL-EZTM (Compatible to EPL, ZPL, ZPL II)
Continuous roll,distance labels, perforated tags, folded label, black line , cardboard tags, ticket, clothing care labels ( outside rewinded)
Package: packed in wooden support every pcs , net weight 17 KG , Gloss weight 23 KG Carton size: 64 cm*43* 41CM
Delivery: By express: FEDEX, DHL, TNT, UPS, EMS We will choose the preferabel, cost-efficient way for you. By sea: Please provide the specific seaport near your address. By air: Please offer me the international custom airport for me to confirm.
Lead time: Generally 3-5 working days, mass production for 7-10 working days, color ribbon needs take longer.
