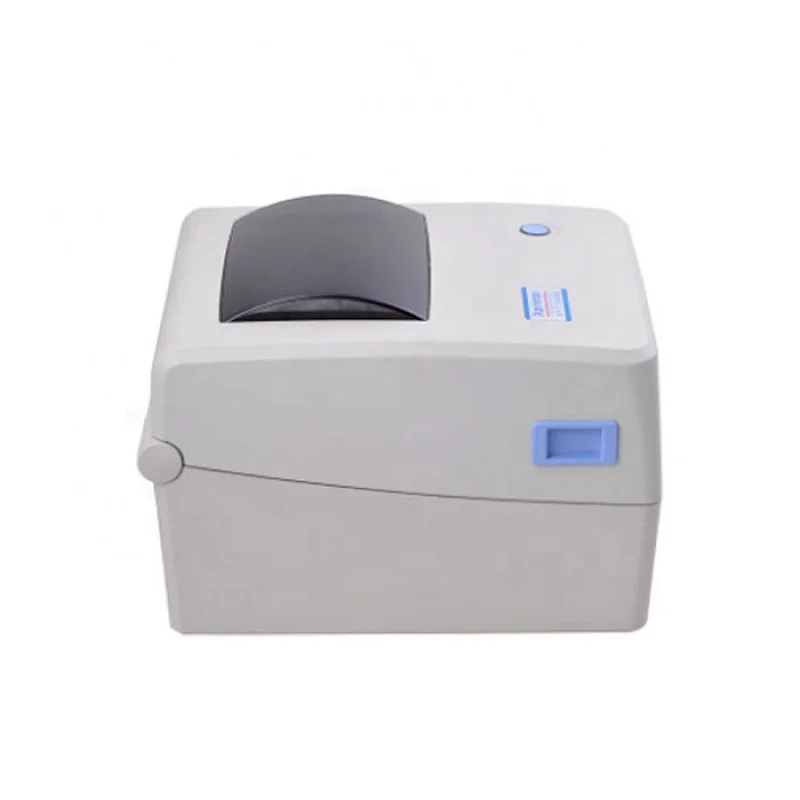

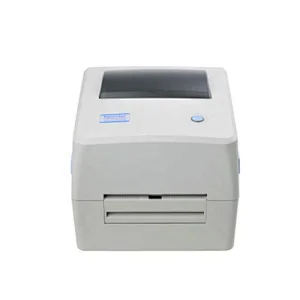

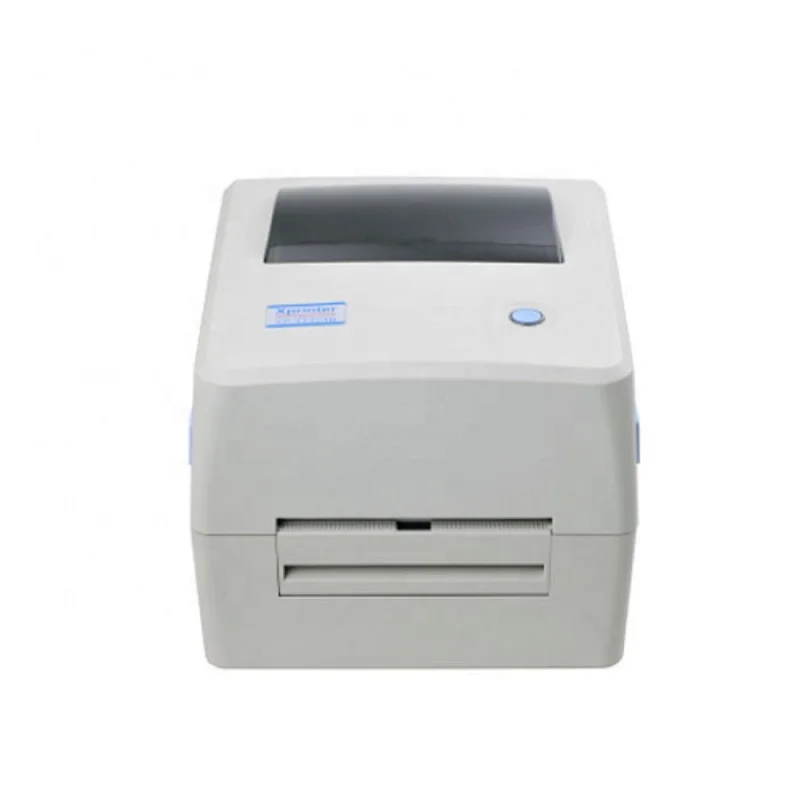

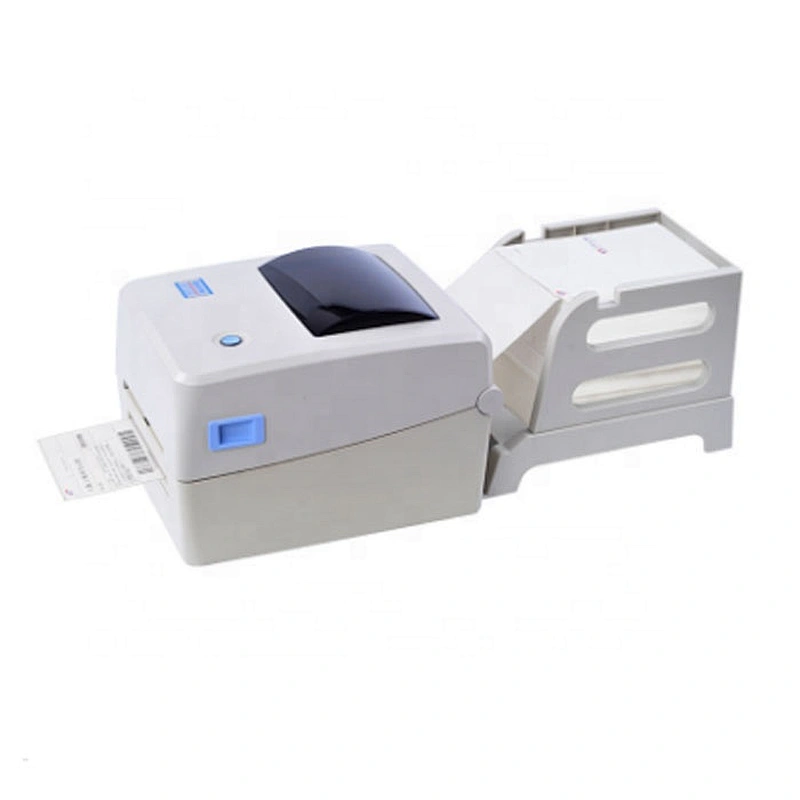

| Printer model | XP TT424B | |
| Printing method: | direct thermal printing/ thermal sensitive |
| printing resolution: | 203dpi 8 dots/ mm ( other 300dpi) |
| pirnt width: | 108mm (4.25") |
| print speed: | 127mm ( 5") |
| Most print length: | 1178mm (78") | |
| memory: | 4MB FLASH RAM, 8MB SDRAM / Micro SD Flash reader can extend to 4GB. |

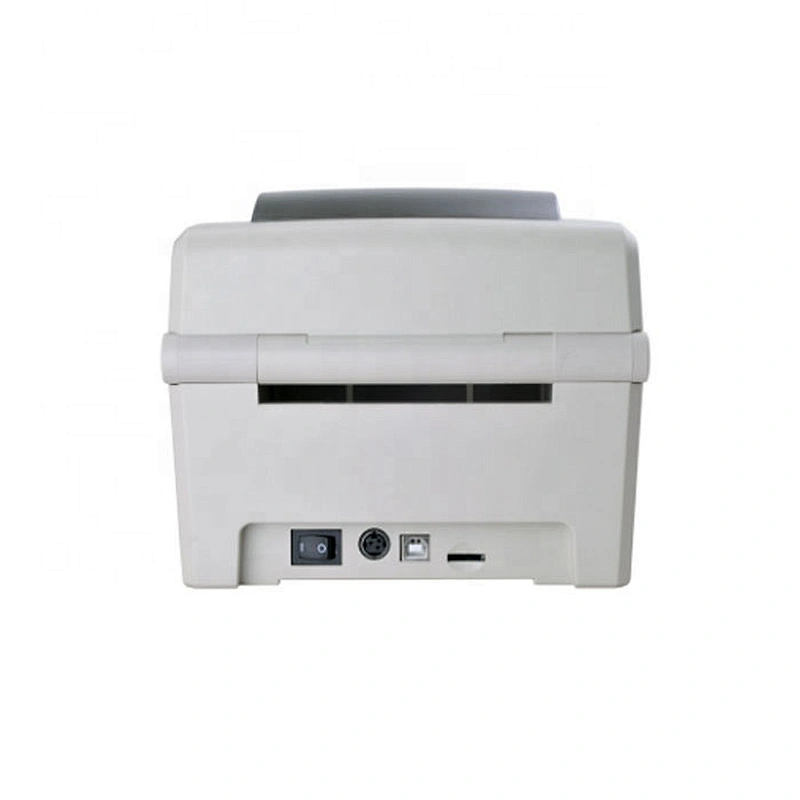

| Interface | USB 2.0 (standard )/ serial port (optional) / parallel (optional)/ network (optional) bluetooth (optional) / wirelss wifi(optional)/TFcard(alternative) |
| Power supply: | Circumscribed general switch power supply Imput: AC 100-240V , 1.8 A 50-60HZ output: DC 24v 2.5A , 60W |
| Operation switch, button , LED | Power off switch, feed, LED light ( three color) red purple, blue |
| Sessor | Black mark ( reflective location can be adjustable) Printer head open sensor gap distance sensing Ribbon end sensing |
| In-built typeface | 8 kinds bitmap typeface/ or can use windows fonts download from Internet. |
| Barcodes: | 1D bar code:Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code 11
2D bar code:PDF-417, Maxicode, DataMatrix, QR code, Aztec |
| Character enlarge/ rotary: | Horizontally and vertically can amplified 1-10 times, rotary printing ( 0°,90°,180°, 270°) |
| Printer Language: | TSPL ( EPL, ZPL, DPL) |
| Medium ( paper) type | Continuous paper, distance paper, fold , perforated tags etc |
| Medium width: | 25.4 mm- 118mm (1"- 4.6") |
| Medium thickness: | 0.06 ~ 0.18mm |
| label roll inner core | 25.4 ~ 50.8mm (1"~ 2") |
| Print label length: | 10 ~ 1178mm (0.39"~ 70") |
| Accessory: | > Windows label editoring software, driver and operation manual CD > quick -installation guideline > USB transmission line > Power supply line > Circumscribed Voltage automatically exhange power supply server
> rewinder roller, paper fixation panel *2 |
| Factory: (Alternative) | 1. Built-in Ethernet server (10/100Mbps) 2. RS-232C (2400-115200 bps) communication interface, 3. Centronics communication port |
| Customers (alternative) | 1. Exernal hanger and 1 inch core paper roller 2. bluetooth module (RS-232C transmission interface) 3. WIFI module 4. Circumscribed external extend panel 5. Cutter |
| Safety regulation: | FCC,CE, CCC,CB |
| Weight: | 2.5 kg |
| Dimension: | 303 (D) x 238(W) x198(H)mm |
| working environment : | 5~40℃ (41~104°F), Humidity 25-85%RH ( uncondensed) |
| Storage: | -40~60℃ (-40~140°F),Humidity 10 ~ 90% ( uncondensed) |
| Durability: | Printer head one year/ printer head 30miles or within one year , rubber covered roller valid within 1 year. |
