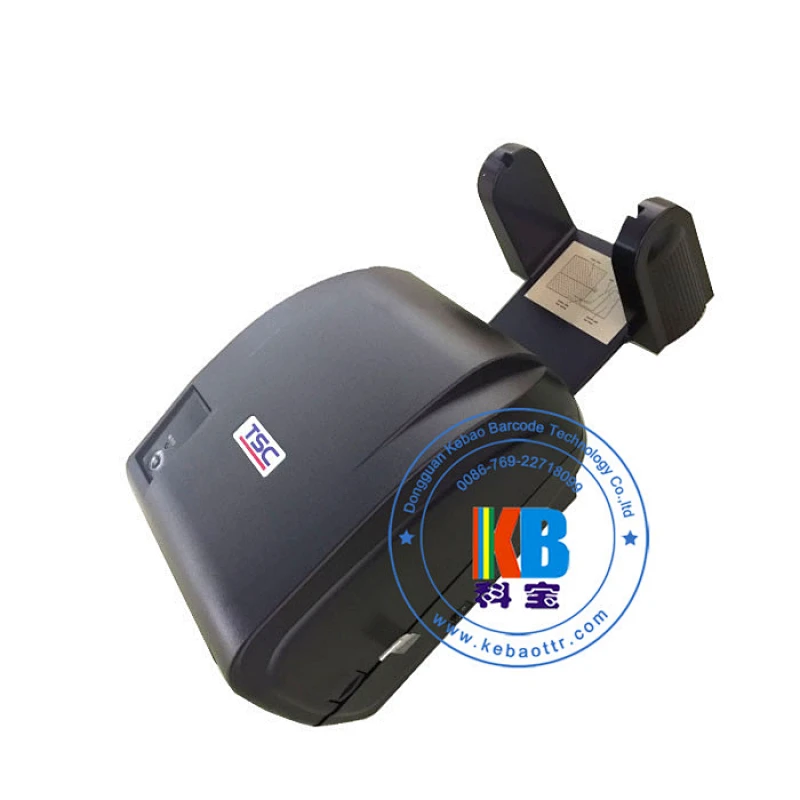

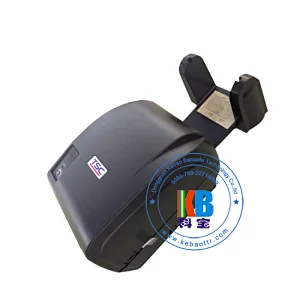

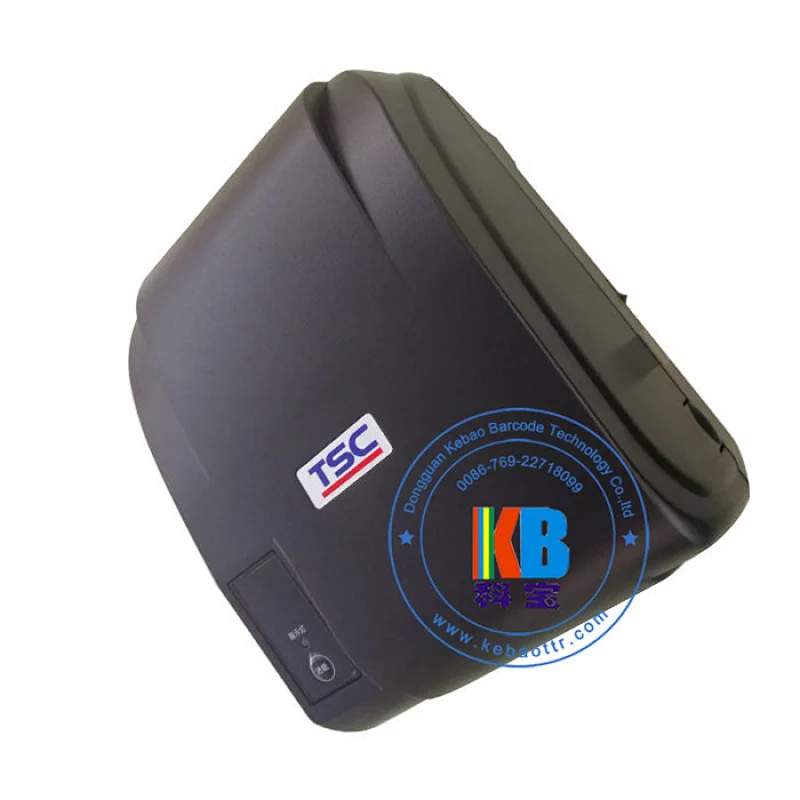

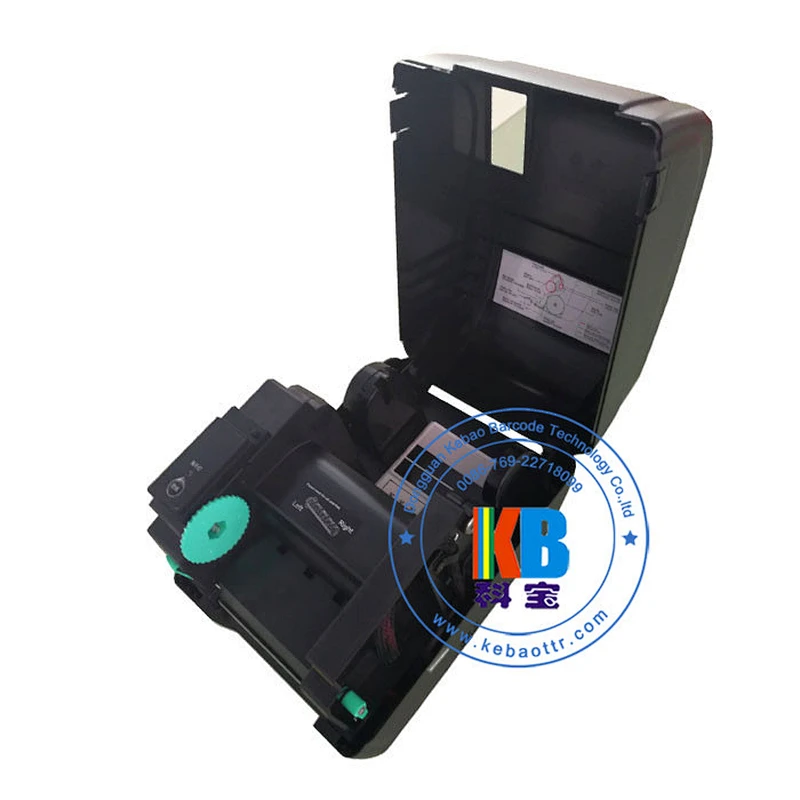

T300-A desktop mini pvc PET paper label thermal transfer printing printing barcode plastic label printer
There's main four types material printer ribbon use on barcode printer, divide into wax, wax resin, resin and wash resin.
Wax mostly suits for rough coated paper label material, wax resin suits for adhesive paper sticker and BOPP, but its anti-scratch is much better than normal wax ribbon; Resin suits for synthetic label material like pp, bopp pvc plastic, Polyester PET, synthetic paper ; another special ribbon type is wash resin suits for many kinds garment/ clothing wash care label with waterproof, washable and durable features after washed or in severe environment.
Wash ribbon is one type of durable material designed for printing on wash care labels that made of polyamide nylon taffeta, polyester fabrics satin ribbon, tyvek, iron on label, tpu and others types. Mainly used for garment, shoes, bag, present fields, with high washability and superior resistance to dry cleaning, sweat, heat and waterproof.
Printer Pharameters
Printer model and standard features:
Model
T300-A
Definition
12 dots/mm 300dpi
Print model
Thermal transfer printing / thermal sensitive
The most printing speed
102 mm/sec ( 4 inches/ sec)
The most print width
104mm (4.09")
The most printing width
1016mm (40")
Printer outer case
ABS Plastic
Dimension
224mm( W) *186mm(H) *294mm (L)
8.82"( W) *7.32"( H) * 11.57"(L)
Weight
2.45 KG (5.4 pound) Net weight
The most label size
127mm (5") outside
Ribbon
300m , the most diameter is 67mm, 1 inch core (outside inking)
Ribbon width
40mm- 110mm (1.6"-4.3")
CPU
32 byte effective CPU
Memory
4MB Flash Memory, 8MB SDRAM, micro SD card RAM can expand to 4 GB
Communication interface:
USD 2.0 serial port ( RS-232) Parallel interface Ethernet in-print server bluetooth ( customer alternative) 802.11b/g/n wifi transmission ( customer alternative)
Power supply specification
Built Circumscribed voltage auto exchange power supply unit. AC input: AC 100-240 VAC, 1.8A, 50- 60Hz DC output: DC 24V, 2.5A, 60W
Operation button, LED
Power button, paper delivery key, LED direction ( green, orange, red)
sensor
Paper space sensor (Panetration stype, location adjustable) black line marked sensor ( reflection, location adjustable) Sensor for the end use of ribbon Printer head lift-up sensor
Barcode rotary
0, 90 , 180, 270
date/ Time generator
standard
In-built type font:
8 typs bitmap font One set Monotype CG Triumvirate Bold Condsensed Vector font and True type font generator Download through software Windows font for usage
barcodes
1-D barcode code39, code93, Code 128UCC, Code128 subsets A, B, C Codabar, Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A
Windown roll edit software, driver procedure and operation manual CD Rapid installation handbook USB Transmission line Circumscribed voltage auto exchange power supply unit paper roll, paper roll fixing plate *2 Ribbon core *2 Outer side paper roll shelf
we can customize for small size like 110mm*74mm , 55mm*74m , 55mm*50m etc.
label size: (normal)
Label core is 4cm usually , should not exceed the most diameter 67mm when putting inside.

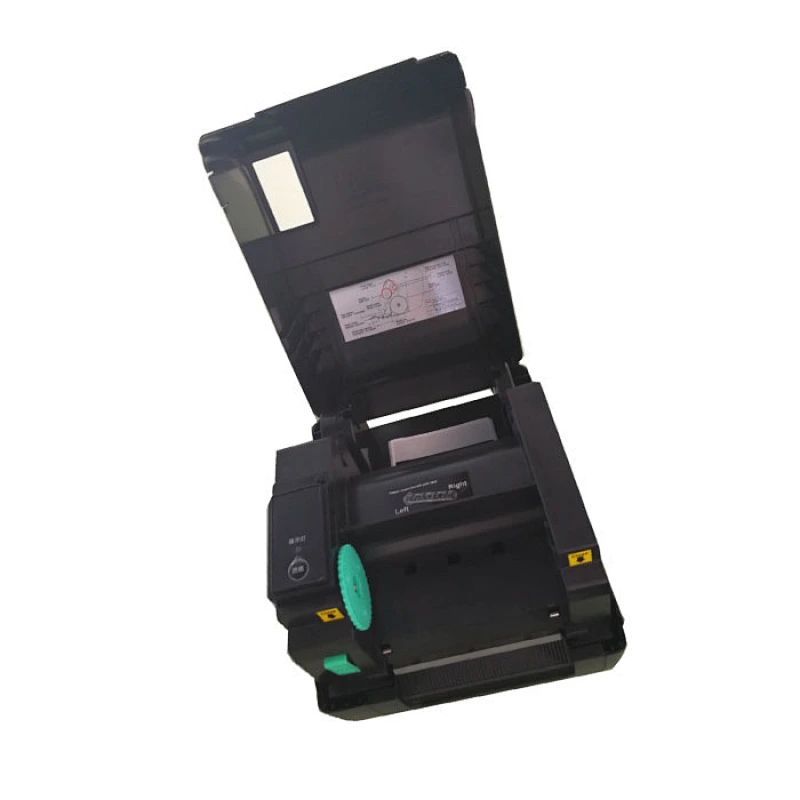

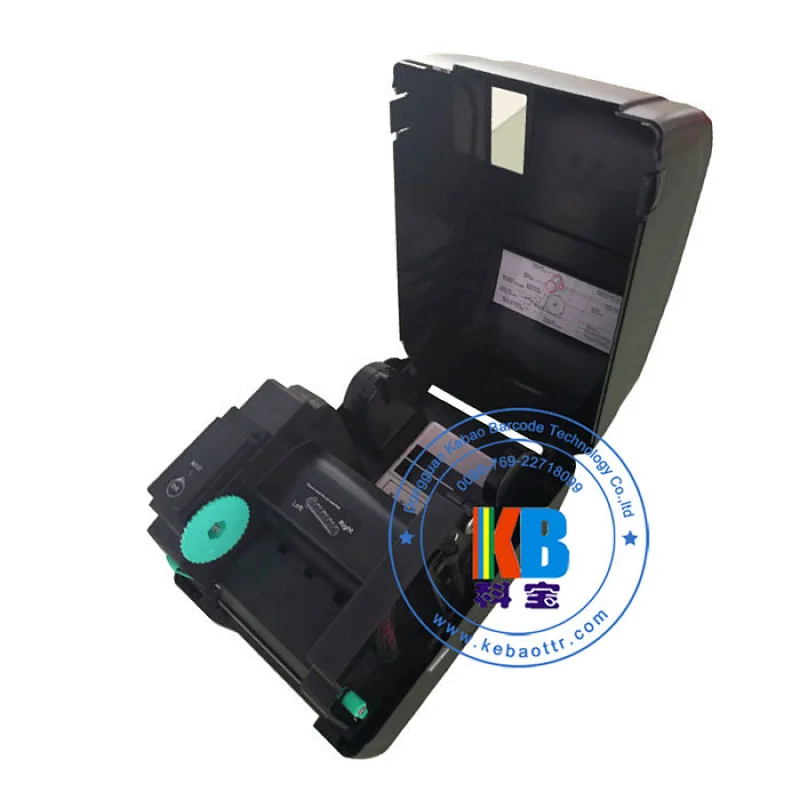

How to use it:
1. first, put the ribbon on convey spindle, barcode labels on lable roll spindle, especially notice that the ribbon or label must be in the middle of the spindle, and aligned. 2. Be sure that the inking side of ribbon will be contact with labels. 3. Ribbon material must match with label used, otherwise it can't show perfect printing images. 4. Ribbon must be a little bit wider than care labels for the protection of print head.
Packing & Delivery
Busniess term:
EXW WORK, FOB, CFR, FCA, CIF incoterms.
Package: Carton size: 45*35*35 CM
Net weight: 3.5 KG
Gross weight : 6.5KG
Delivery: By express: FEDEX, DHL, TNT, UPS, EMS We will choose the preferabel, cost-efficient way for you. By sea: Please provide the specific seaport near your address. By air: Please offer me the international custom airport for me to confirm.
Lead time: Generally 3-5 working days, mass production for 7-10 working days, color ribbon needs take longer.
