qr code label shipping label thermal paper roll hang tag XP-TT424B labelling machine
Features : 1.Duoble motor design 2.Printing speed up to 127mm/s 3.ribbon capactiy is 90mm length, and the core is 0.5 inch(outside ink) 4.Large memory capacity:4MB Flash, 8MB SDRAM 5.with microSD card slot 6.USB 2.0 standard communication interface 7.printer language TSPL - EZ ™, support Eltron ® and Zebra ®
How to use it:
1. first, put the ribbon on convey spindle, barcode labels on lable roll spindle, especially notice that the ribbon or label must be in the middle of the spindle, and aligned. 2. Be sure that the inking side of ribbon will be contact with labels. 3. Ribbon material must match with label used, otherwise it can't show perfect printing images. 4. Ribbon must be a little bit wider than care labels for the protection of print head.

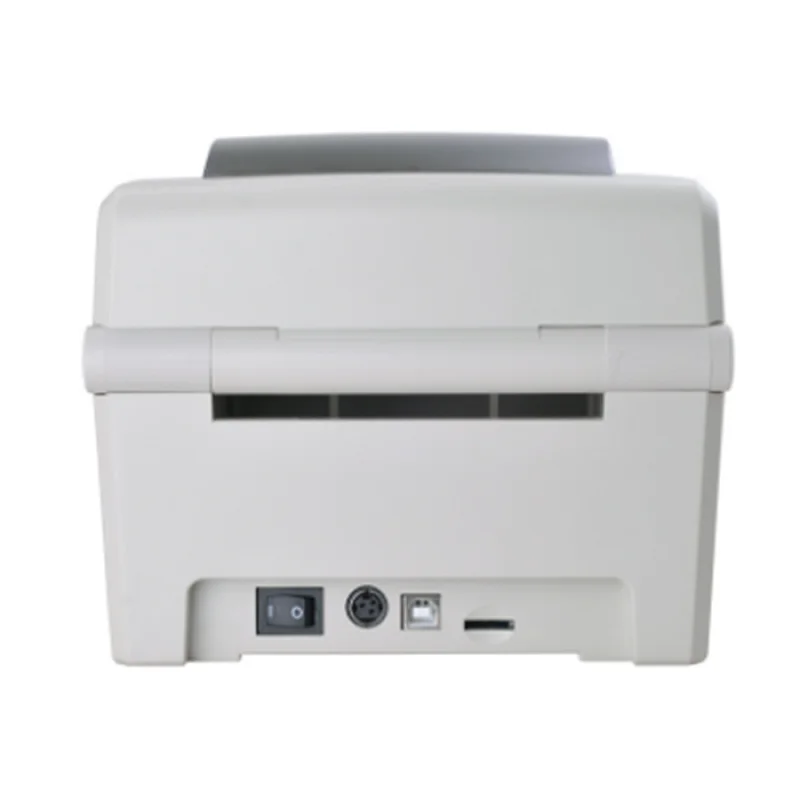

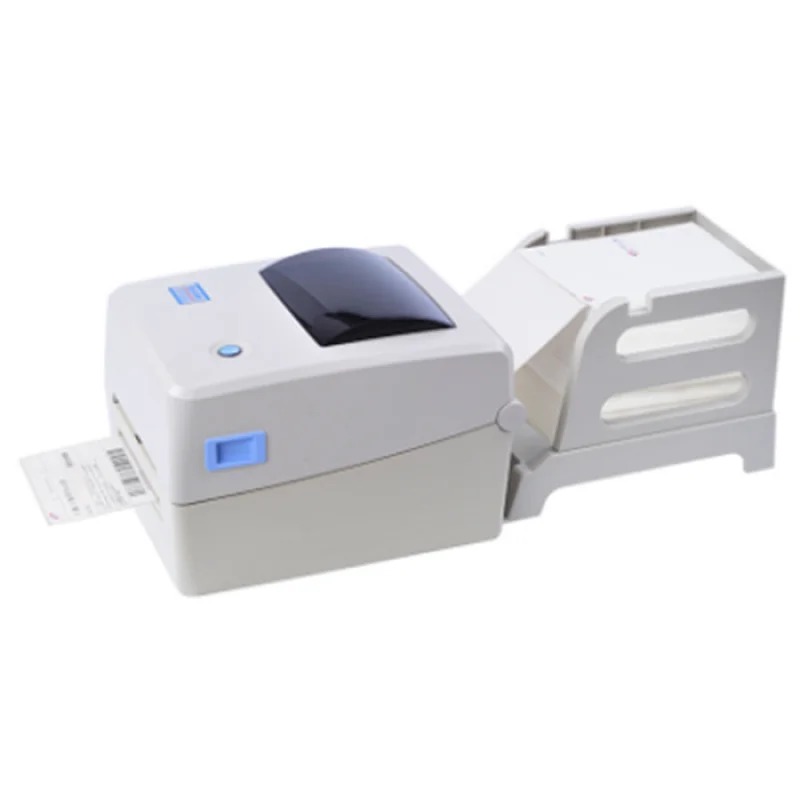

XP-TT424B label machine
print method
thermal transfer/direct thermal
resulotion
200 DPI
max print speed
127 mm (5) / s
max print width
108 mm (4.25")
max print length
1778 mm (70")
CPU
32 byte RISC CPU
Memory
4MB flash memory/Micro SD flash reader can be extended to 4GB
External Power supply switch; Input:AC 100-240V Output:DC 24V,2.5A
Operation switch,button,LED
Power switch,feed,Led direction light:red, purple, blue
sensor
distance sensor,printer head open sensor,black mark reflective sensor,ribbon sensor
In-built typeface
8 kinds bitmap typeface download the typeface through software
barcode
1D bar code:1D bar code:Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code 11 2D bar code:PDF-417, Maxicode, DataMatrix, QR code, Aztec
typeface and barcode rotary
0°,90°,180°,270°
printer language
TSPL,EPL,ZPL,DPL
medium paper
continuous paper,distance paper,folded paper,hang tag
paper width
25.4 ~ 115 mm
paper thinkness
0.06 ~ 0.18mm
medium core diameter
25.4 ~ 50.8mm (1 ~ 2 )
label length
10 ~ 1778mm
spare
1.Windows label roll editor software, driver and operation menual CD 2.quick installation guide 3.USB transmission wire 4.Power wire 5.circumscribed voltage auto -exchange power supply 6. label scroll, label roll fixation panel *2 7.ribbon scroll*2 8.ribbon recyle container 9.Random paper
factory alternative
①built-in Ethernet server (10/100 Mbps);②RS-232C(2400-115200 bps) communication interface;③Centronics communication interface
Customers optional
1. External hanger and 1 inch paper label core 2.Bluetooth modul(RS-232C communication interface) 3.Wifi modul 4. External label hanger expanded 5. cutter
Delivery: By express: FEDEX, DHL, TNT, UPS, EMS We will choose the preferabel, cost-efficient way for you. By sea: Please provide the specific seaport near your address. By air: Please offer me the international custom airport for me to confirm.
Lead time: Generally 3-5 working days, mass production for 7-10 working days, color ribbon needs take longer.
