Type:thermal transfer printing, thermal sensitive printing
Max Paper Size:104mm wide
Black Print Speed:5 inches
Color Print Speed:no
Max. Resolution:300 dpi

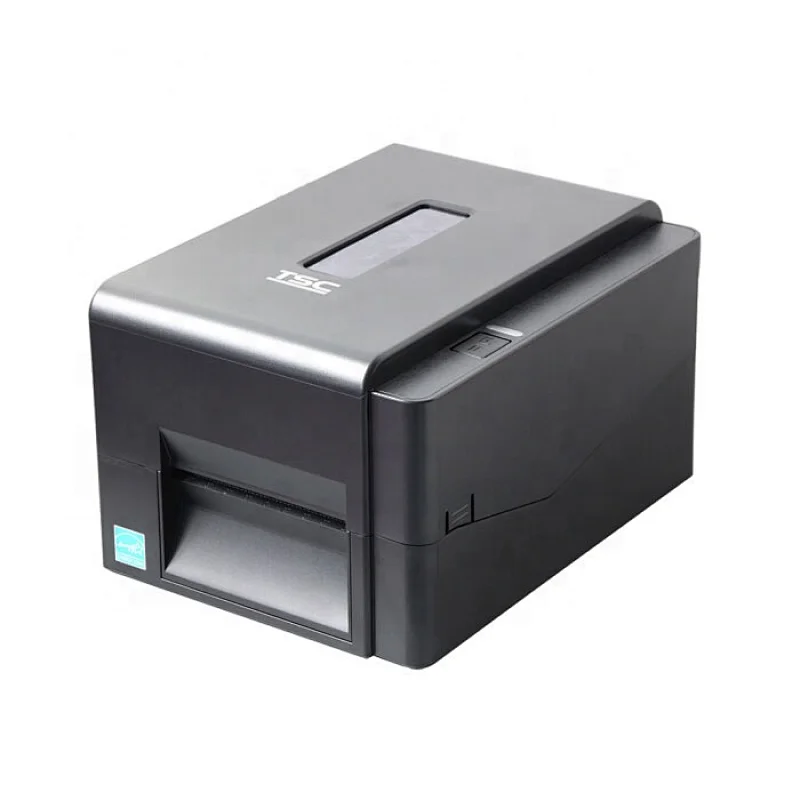

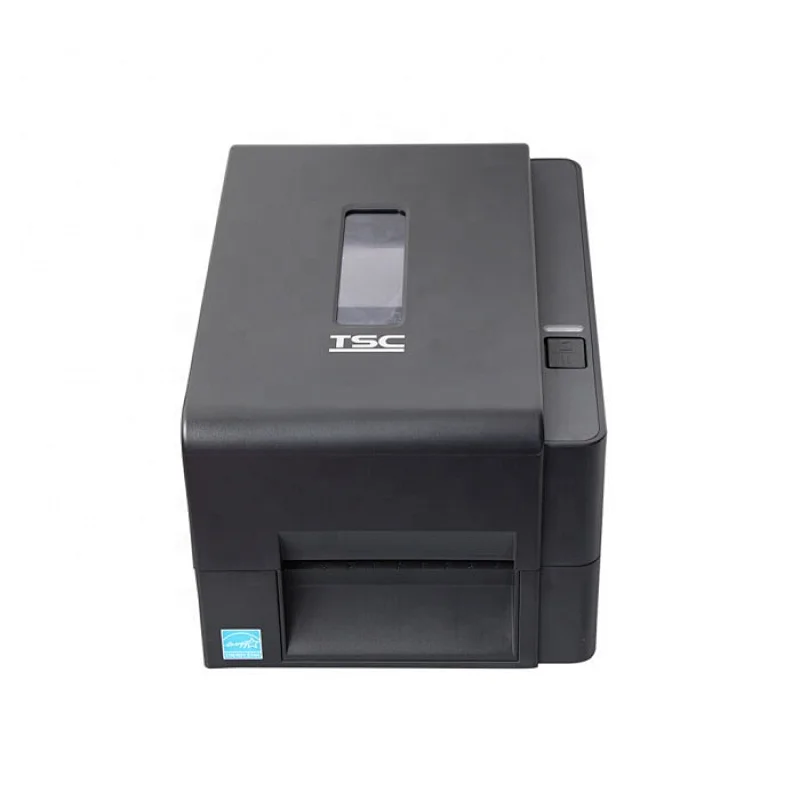

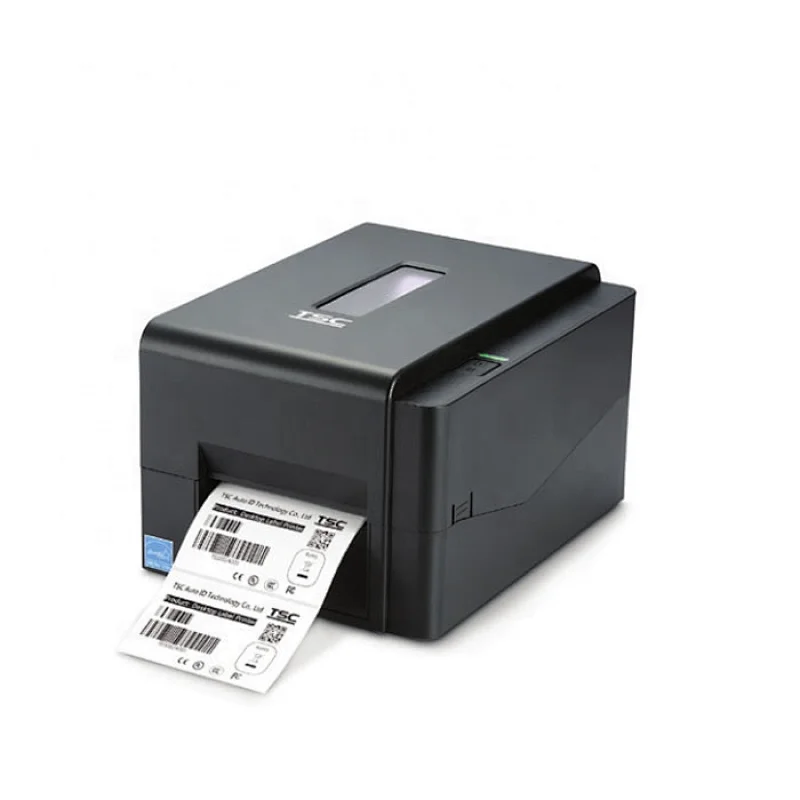

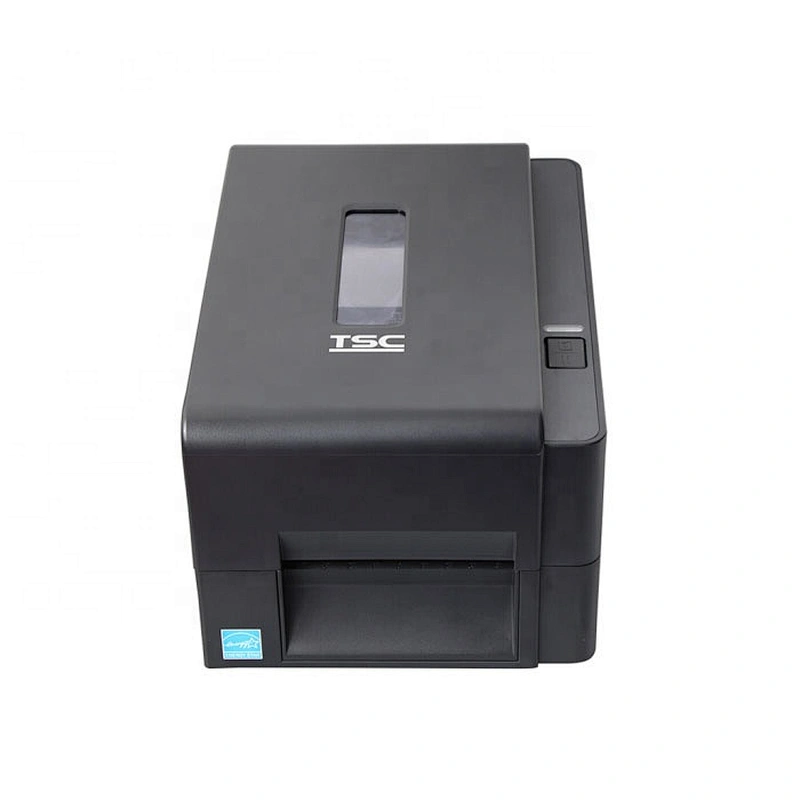

TE310 Cheap 300dpi Adhesive paper sticker label printing color thermal transfer sticker printer
There's main four types material printer ribbon use on barcode printer, divide into wax, wax resin, resin and wash resin.
Wax mostly suits for rough coated paper label material, wax resin suits for adhesive paper sticker and BOPP, but its anti-scratch is much better than normal wax ribbon; Resin suits for synthetic label material like pp, bopp pvc plastic, Polyester PET, synthetic paper ; another special ribbon type is wash resin suits for many kinds garment/ clothing wash care label with waterproof, washable and durable features after washed or in severe environment.
Wash ribbon is one type of durable material designed for printing on wash care labels that made of polyamide nylon taffeta, polyester fabrics satin ribbon, tyvek, iron on label, tpu and others types. Mainly used for garment, shoes, bag, present fields, with high washability and superior resistance to dry cleaning, sweat, heat and waterproof.
Printer speciality feature:
1. Printer speed reach to 152mm/ sec of 5 inches per second.
2. Ribbon can exchange to 110m with half inch core, or 1 inch core with 300m long.
3. Label sticker roll max diamter within 5 inches, optional alternative 8.4 inches diameter external hanger.
4. 32 bytes CPU processor , with high memory capacity 64MB SD RAM, 128 MB Flash
5. In-built True Type Font typeface 6. Humanilized high grade language TSPL-EZD support Tple, TPLZ and TPLD language.
7 .It can download label sticker roller editor software and Windows driver programme
* Wash resin ribbon excellent with high washability and superior resistance to dry cleaning, sweat heat and water. * High resolution suitable for printing standard and rotation barcode. * Satisfy printing demands for different care label material, nylon taffeta, satin fabric. * High sensitivity to ensure the great printing results. *Anti-static back coating technics for print-head protection.
TE 210 Series - Desktop thermal transfer printer / barcode printer
8 dots/mm (203dpi)
12 dots/mm ( 300dpi)
Thermal transfer printing/ direct thermal sensitive
The max printing speed
152.4mm (6") / mm
The max printing width
The Max printing length
Printer body shell
204MM (W) x 164MM(H) x 280 mm (L) 8.03"(W) x 6.46"(H) x 11.02"(L)
2.5 kg (5.51 pound)
Inside roll diameter
127MM (5") outside diameter
300M , the max 67 mm diameter, 1 inch core roller ( outside inking) 110M, the max 40mm diameter, 0.5 inch core (outside inking)
40mm - 110mm ( 1.6"-4.3")
32 bytes high efficiency CPU
• 128 MB Flash memory • 64 MB SDRAM
• Paper distance sensor (penetration) • Black mark sensor (reflective , adjustable) • Ribbon end sensor • Printing head up sensor
• USB 2.0 • Serial port (RS-232) • Built-in Ethernet server • USB Host , support stand-alone and barcode scanner • Parallel) (EX-Factory alternative) • Bluetooth (customer options)
Circumscribed Voltage automatically switch power supply • AC Imput :AC 100-240V, 2.5A, 50-60Hz • DC ouput :DC 24V, 3.75A, 60W
Operation switch, button, LED/ LCD
• Power supply • One operation button (Pause,Feed) • LED light (3 colors: green ,orange, red)
Date / time generator
• Eight kind bitmap typeface • One set Monotype® CG Triumvirate Bold Condensed Vector Fonts and True Type Font typeface generator
• 1-Dimension codes Code 128UCC, Code 128 subsets A, B, C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, Code 39, Code 39 with check digit, Code 93, EAN13, EAN8, UPCA, UPCE, EAN and UPC 2 (5) digits add-on, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, Code 11, TELEPEN, TELEPENN, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS
• 2-D codes GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF 417
Tyepface and codes rotary
TSPL-EZ TM (compatible with EPL,ZPL,ZPL II)
Label substrates type
Continous label, distance paper, black mark paper, hang tags, fold label etc
FCC Class B, CE Class B, C-Tick Class B, UL, cUL TÜV/safety, CCC, EAC, CoC, BIS, KC, Energy Star Safety regulations
conform to RoHS,WEEE
• Windows roll label editor software,Dirver programe and opertion manual handbook CD • quick-installation guide • USB trasmission line • Power supply line • Circumscribed Voltage automatically exchange power supply 1 inch paper core , paper fixation panel*2 transverter *2
1 inch ribbon paper core and rewinding roller
inscribed bluetooth 4.0 ( alternative)
• Label sticker peeling off module • Knife -cutting ( full width cutting)
Wash resin ribbon especially applied in garment care label, like for nylon taffeta satin fabric, iron on name label etc.
How to use it:

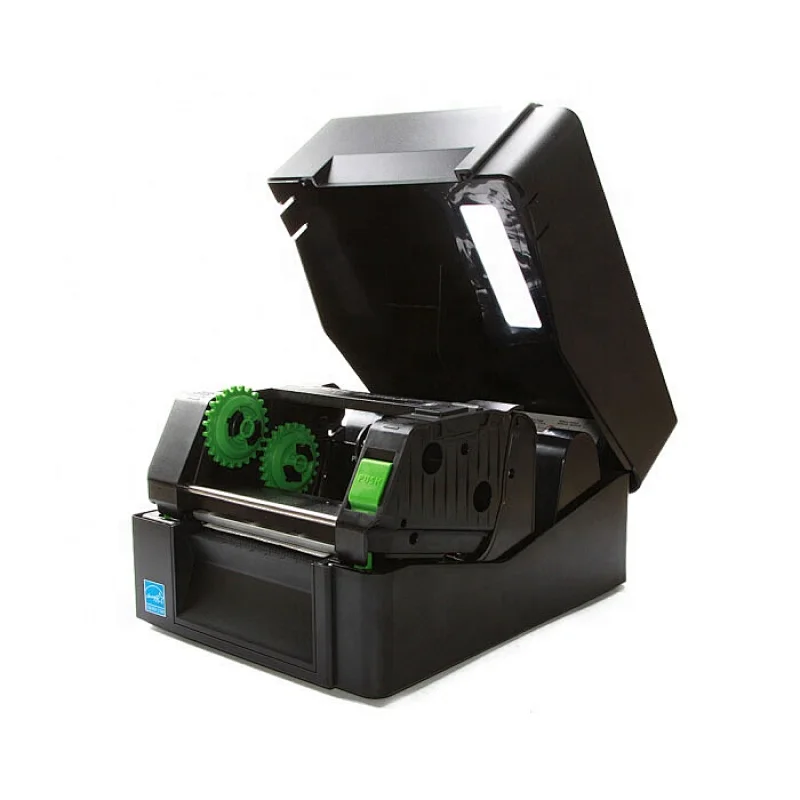

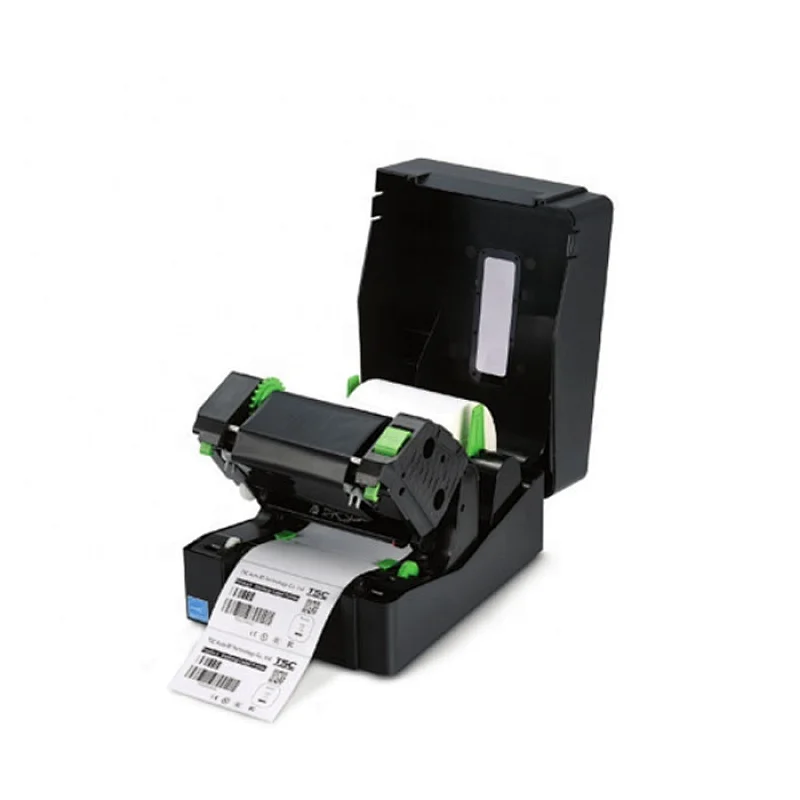

1. first, put the ribbon on convey spindle, barcode labels on lable roll spindle, especially notice that the ribbon or label must be in the middle of the spindle, and aligned. 2. Be sure that the inking side of ribbon will be contact with labels. 3. Ribbon material must match with label used, otherwise it can't show perfect printing images. 4. Ribbon must be a little bit wider than care labels for the protection of print head.
Similar model you might also like: ( Top Grade high quality desktop, stremedlined structure apperance, fast printing speed, optional extra parts auto cutter can be added suits for various clothing care label printing)
Pursure for continous development and always provide the high and qualified products to customers!
1. Quick response rate to any of your inquiry within 24 hours .
2. Can meet your small amounts moq .
3. Fast response after-sales services to make sure the issues occurs on you can be solved in time.
4. Truly suggestions for the products selection, usage and tips for shipment.
Packing & Delivery
EXW WORK, FOB, CFR, FCA, CIF incoterms.
Package: Carton size: 51*37*37 CM
Net weight: 5.5KG
Gross weight : 7.6kg
Delivery: By express: FEDEX, DHL, TNT, UPS, EMS We will choose the preferabel, cost-efficient way for you. By sea: Please provide the specific seaport near your address. By air: Please offer me the international custom airport for me to confirm.
Lead time: Generally 3-5 working days, mass production for 7-10 working days, color ribbon needs take longer.
Dongguan Kebao Barcode Technology Co.,ltd
Our company with 7 years experienc in this field, strives to provide you a wide range of TTR, hang tag, labels, barcode printer, hot stamping foil, franking machine T1000, ID card printer ribbon, etc, which are hot and appeal to different taste for worldwide, definitely we are meant to show you our professional technican and great pre-services and after-sale-service.
We are committed to expand our type series, species introduction of material for processing to satisfy every of you request with up-date items. With professional knowledge, meticulous services, and competitive price, we believe we are very qualified to be your qualified partners in the future by supporting you to open up a new market.
Why Choose Us > Completely and careful double check before shipment. > Take great pains for every of you with highly patience to solve any questions and issues. > Our products with high quality guranteed the quality for 2 years or above. > Machine installing and worker training service; whole life free tecnical support; regular onsite routine inspection. > We put service premiumly, your satisfaction is our perpetual persuit. > We have proffesional and corporately team.
Slitting machine ( customize for any sizes ribbon)
FREE SAMPLES is available for evaluation, should attention freight charges would be bear by you.
If any of our products are be of interest to you, please feel free to contact me, we'll be always at you service.
