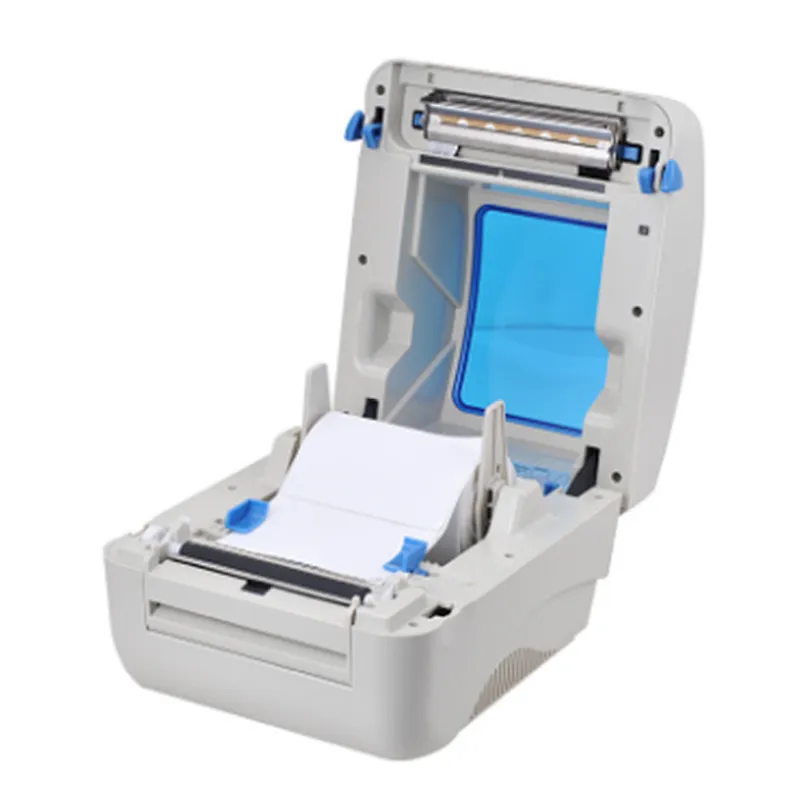

XP-490B thermal adhesive label sticker printer |
printing method | dircet thermal |
resulotion | 200dpi |
max printing speed | 127mm(5)/s |
max printing length | 1778mm(70") |
max printing width | 108 mm (4.25") |
CPU | 32byte Risc CPU |
Memory | 8MB flash memory/8MB SDRAM/Micro SD flash reader can be extended to 4GB |
Communication interface | USB2.0(standard)/TF Card(standard)/serial(alternative)/Wifi(alternative)/Bluetooth(alternative) |
Supply power | External Power supply switch;
Input:AC 100-240V,1A,50-60Hz
Output:DC 24V,2.5A,600W |
Operation switch,button,LED | Power switch,feed,Led direction light:red, purple, blue |
sensor | distance sensor,printer head open sensor,black mark reflective sensor |
In-built typeface | 8 kinds bitmap typeface
download the typeface through software |
barcode | 1D bar code:Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13,
EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST
2D bar code:PDF-417, Maxicode, DataMatrix, QR code |
typeface and barcode rotary | 0°,90°,180°,270° |
printer language | TSPL,EPL,ZPL,DPL |
media type | continuos paper, distance paper sticker, folded paper, hang tag |
media width | 20 ~ 118 mm (0.78 ~ 4.6 ) |
media thikness | 0.06 ~ 0.25 mm (2.36 ~ 9.8 mil) |
media diameter | 25.4 ~ 76.2 mm (1 ~ 3 ) |
label length | 10 ~1778 mm (0.39 ~ 70 ) |
spare | 1.Windows label roll editor software, driver and operation menual CD
2.quick installation guide
3.USB transmission wire
4.Power wire
5.circumscribed voltage auto -exchange power supply
6. label scroll, label roll fixation panel *2 |
factory alternative | 1.bluetooth, 2.peeling off module |
Customers optional | 1. External hanger and 1 inch paper label core
2. External label hanger expanded
3. electric express sheet single box |
certifiction | FCC,CE, CCC,CB |
weight | 1.58kg |
size | 219.03 (D) x189.62 (W) x 178.50(H)mm |
working environment | 5 ~ 40°C(41~104°F),humidity 25 ~ 85%(uncondensed) |
storage environment | -40 ~ 60°C(-40~140°F),humidity 10 ~ 90%(uncondensed) |
