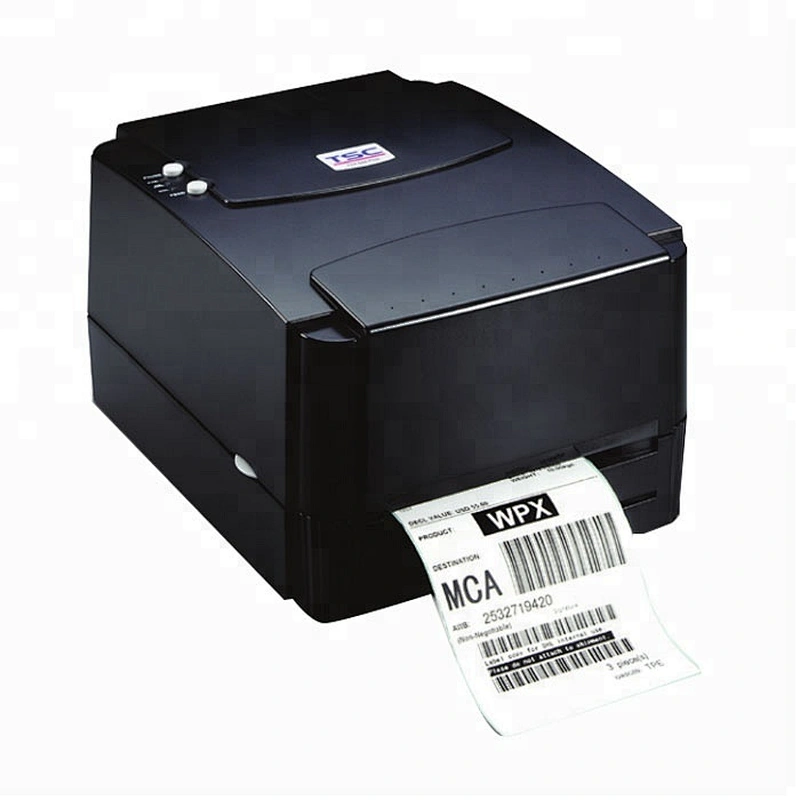

TSC TTP -244Pro barode printer sticker tag express delivery thermal clothes
TSC TTP -244Pro barode printer sticker tag express delivery thermal clothes

TSC TTP -244Pro barode printer sticker tag express delivery thermal clothes

Model NO.
USD 285.00-500.00 / piece
Minimum order quantity:
1 piece
Supply Ability:
10000 piece / Month
Country of Origin:
shenzhen donguan
  • Products Status:Stock
  • Type:Dot-matrix
  • Style:Black And White
  • Use:Barcode Printer
  • Interface Type:USB
  • Place of Origin:CN;GUA
  • Max Paper Size:102mm
  • Black Print Speed:4 inches/ sec
  • Color Print Speed:NO
  • Max. Resolution:203dpi
  • Brand Name:NO
  • Model Number:TTP 244PRO
Product Description

TSC TTP -244Pro bar code printer sticker - tag express delivery mono-thermal clothes wash mark


TTP 244 series table top / desktop barcode printer, TTP 342 300dpi barcode printe
TTP 2410 MU series printer : TTP 2410 MU, TTP 346MU (300dpi) , TTP -644MU
The TTP-2410MU printer is the most significant upgrade ever to the TTP-2410M platform. The TTP-2410MU Series features a high technology printhead, a new processor that is faster, and all the memory customers will need to print high quality labels at the fastest speeds.
Enhanced Print Quality

The TTP-2410MU Series features the best print quality TSC has ever offered in a midrange printer thanks to new printhead technology combined with faster processors and upgraded firmware. We call our enhanced print quality “Thermal Smart Control”™ which tracks and precisely calculates the duration that each pixel needs to be heated to provide accurate, crisp and clear labels every time, whether you are printing one label at a time or thousands of labels in a batch.
High Speed Performance, more memory
Compared to its predecessor, the TTP-2410MU is faster, performing at 14 inches per second and has an increased memory of 128 MB Flash and 128 MB SDRAM. Internal Ethernet, USB 2.0, USB host, parallel and serial interfaces come standard.
LCD display panel: ( six button)
The TTP-2410MU Series comes with the monochrome six button LCD display to clearly show its working status.
TTP 2410MU series
TTP 2410MU series - Industries direct thermal / thermal transfer barcode printer

Products Main features:
* Optional component parts: in-built Ethernet printing server, auto cutter, label peeling off sensor, date/ time generator ( RIC), bluetooth wirelss transmission module, 802.11/ b/g/n wifi network module, stand-alone operation keyboard etc.

Industrial-duty Printing
Healthcare Patient Safety
Compliance Labeling
Work In Process
Order Fulfillment
Shipping/ Receiving
Electronics & Jewelry Labeling

And all industrils use it .
Logistics, supermarket clothing, jewelry. It's everywhere in every industry
Printer model
Printing resolution
8 dots/mm (203 DPI)
12 dots/mm (300 DPI)
Printing method
Thermal Transfer printing & Direct Thermal
Max. print speed
178 mm (7”)/sec
127 mm (5”)/sec
Max. print width
108mm (4.25)
106mm (4.17)
Max print length
2,286 mm(90)
1016mm (40)
Printer shell
Double -check ABS plastic
Physical Dimension:
213 mm (W) x 188 mm (H) x314 mm (D)
8.39” (W) x 7.40” (H) x 12.36” (D)
2.8 KG (6.17 lbs)
Label Capacity Diameter:
127mm (5”) OD
300m the max diameter 67mm , 1 inch roller ( outside inking)
Ribbon width:
40 mm ~ 110mm (1.6” ~ 4.3”)
32 bit CPU
4 MB Flash memory 8 MB SDRAM SD Flash card with expandable card extend up to 4 GB
Communication interface:
Serial interface RS-232
Parallel port USB 2.0
• USB host, support stand-alone operation keyboard, and barcode scanner
• GPIO (alternative option)
• Bluetooth (user alternative option)
• 802.11 b/g/n Wireless transmission (user option)
Power Supply
In-built Power Voltage automatically switching power supply
Input: AC 100-240V, 2A, 50-60Hz
Output: DC 24V, 5A, 120W
Operation panel
Display 128*64 Pixel backing light
Operation switch-off, button
one switch-off power supply, Button Feed, LED indicator light) ( 3 colors, green orange red_)
Label distance sensor ( Penetration, location adjustable)
black line sensor ( reflective , location adjustable)ribbon end-up usage
printing head up and down style sensor
Real time clock
In-built typeface
8 alpha-numeric bitmap fonts
Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font
1D bar code
Code 39, Code 93, Code 128UCC, Code 128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN-8, EAN-13,
EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST,
GS1 DataBar, Logmars
• 2D bar code
PDF-417, Maxicode, DataMatrix, QR code, Aztech
Font and barcode rotation:
0, 90, 180, 270 degree
Printer language:
TSPL-EZTM (Compatible to EPL, ZPL, ZPL II)
label type:
Continuous roll,distance labels, perforated tags, folded label, black line , cardboard tags, ticket, clothing care labels ( outside rewinded)
Label width
20~ 112 mm (0.78” ~ 4.4”)
label thickness:
0.06 ~ 0.19 mm (2.36 ~ 7.18 mil)
label core size:
25.4 ~ 76.2 mm (1” ~ 3”)
label length:
10 ~ 2,286 mm (039“ ~ 90“) 10~ 1,016 mm (0.39“ ~ 40“
Environment condition:
Operation environment : 5-40 c humidity ( Non-condensed) 25-85%
storage environment: -40-60c humidity ( Non-condensed) 5-90%
Safety regulations:
FCC Class B, CE Class B, C-Tick Class B, UL, CUL, TÜV/Safety, CCC
Environment regulations:
Comply with RoHS, WEEE
Windows labels roll editor software, cd driver and operation Manual files
quick-installation guideline
USB transmission line
power supply line
Factory option:
In-built Ethernet printer server
Date/ Time generator (RIC)
Dealer option:
label peel off module ( include the label peel off device, internal label rewinder or stripping sensor)
User option:
• Bluetooth module (serial interface)
• 802.11 b/g/n Wireless module (serial interface)
• 3"paper core
• stand-alone operation keyboard ( KP-200 Plus, KU-007 PLUS)
